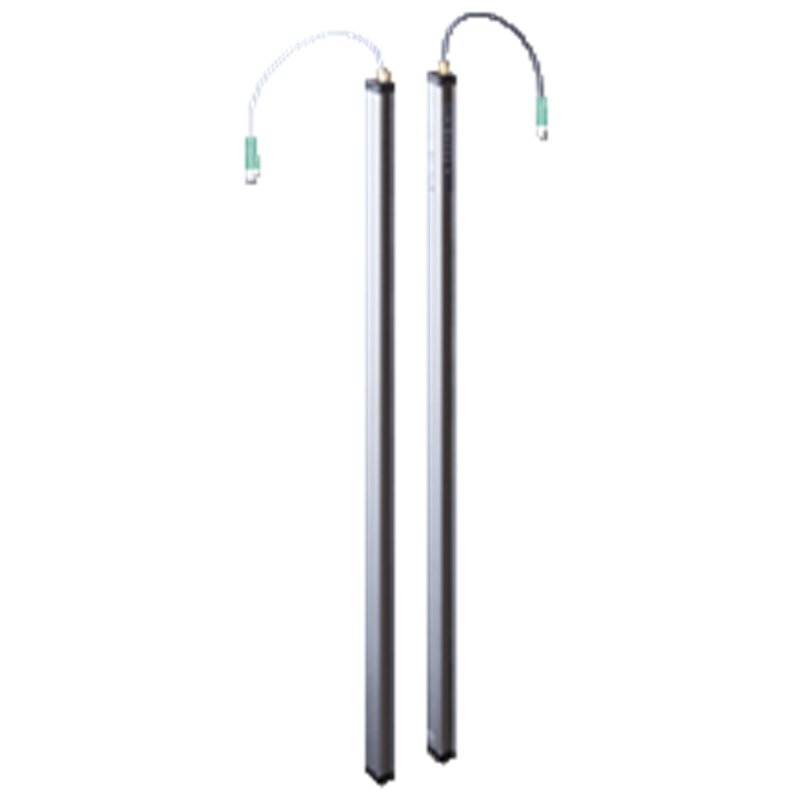

LGM25-2100-IO/110/115b PEPPERL+FUCHS - Part number: 251333-0021
NFS
Non disponibile - Backorder
Da ordinare dal produttore
1.887,39 USD

Tasse di importazione escluse

Devi essere autenticato

LGM25-2100-IO/110/115b PEPPERL+FUCHS - Part number: 251333-0021

PEPPERL+FUCHS

confronta
LGM25-2100-IO/110/115b PEPPERL+FUCHS - Part number: 251333-0021

Light grid LGM25 LGM25 Measuring automation light grid with switching output Optical resolution 25 mm Super-fast object detection, even with 3-way beam crossover Object identification using integrated object recognition IO-Link interface for service and process data Temperature range to -30 °C Output of a measured value, can be selected from a number of measuring functions Light grid LGM25 LGM25 Measuring automation light grid with switching output Optical resolution 25 mm Super-fast object detection, even with 3-way beam crossover Object identification using integrated object recognition IO-Link interface for service and process data Temperature range to -30 °C Output of a measured value, can be selected from a number of measuring functions

MPNs 251333-0021, PEP251333-0021, LGM25-2100-IO/110/115b
Codice HS 85365090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
1.887,39 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  LGM25 Product Description Measuring automation light grid with beam spacing of 25 mm, IO-Link interface, push-pull output, fixed cable with M12 plug General specifications Effective detection rangeStandard : 0.3 ... 6 m Threshold detection range7.5 m Light sourceIRED Light typemodulated infrared light , 850 nm Field heightsee Table 1, max. 3200 mm Beam crossoverFactory setting: three beam crossing, deactivateable Beam blankingadjustable max. 2 fixed suppressible beam areas (blanking) Beam spacing25 mm Number of beamssee Table 1, max. 129 Operating modeEmitter: Emitter power adjustable in two ranges Optical resolutionwithout beam crossover: 25 mm with beam crossover: 12.5 mm with in 25%  and  75% of the range Opening angle10 ° Ambient light limit> 50000 Lux (if external light source is outside the opening angle) Functional safety related parameters MTTFd34 a Mission Time (TM)20 a Diagnostic Coverage (DC)60 % Indicators/operating means Operation indicatorLED green:constantly on - power-ondouble pulse flashing (0.8 Hz) - undervoltageflashing (4 Hz) - short circuitflashing with short interruptions (1 Hz) - IO-Link mode Status indicatorEmitter: LED yellow constantly on - high emitter power constantly off - low emitter power flashing (8 Hz) - error message Receiver: LED yellow: constantly on - object detected constantly off - no object detected flashing (4 Hz) - below stability control limit flashing (8 Hz) - error message Control elementsReceiver: 2 touch buttons for programming Electrical specifications Operating voltage18 ... 30 V DC Ripple10 % No-load supply currentEmitter ≤: 50 mA Receiver: ≤ 150 mA (without outputs) Time delay before availabilitysee Table 1, max. 2.3 s Interface Interface typeIO-Link ( pin 4 ) IO-Link revision1.0 Device ID1050369 ... 1050400 ( 0x100701 ... 0x100720 ) COM-ModeCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data width16 bit SIO mode supportyes Input Test inputEmitter switch-off with +UB or 0 V at pin 4 (emitter) Function inputRange input activation from 1.6 m with +UB or 0 V on pin 2 (emitter) Teach-In input for parameterization on pin 8 (receiver) Output Pre-fault indication outputStability Control (SC) 1 PNP, short-circuit protected, reverse polarity protected on pin 2 (receiver) Switching typeFactory setting: dark on , Switchable to light-on mode Signal outputCommand interface: Pin 4 IO-Link interface C or used as switching output Q; 1 short-circuit proof reverse polarity protected push-pull output (receiver)Switch output: Pin 5 switching output Q; 1 short-circuit proof reverse polarity protected push-pull output (receiver) synchronized with pin 4 Switching thresholdFactory setting: The signal tracking for the threshold value is deactivated, increasing the optical resolution by a maximum of 4 mm; switchable to active signal tracking Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V DC Switching frequencysee Table 1, max. 135 Hz Response timesee Table 1, max. 12 ms Timer functionOff-delay programmable from 0 ... 1.25 s in 5 ms steps (adjustment via IO-Link only) Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates Protection classIII ( IEC 61140 ) UL approvalcULus Listed CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Conductor cross sectionmin. 0.25 mm2 Housing width20 mm Housing depth30.5 mm Housing length Lsee Table 1, max. 3360 mm Degree of protectionIP67 ConnectionEmitter: connecting cable with 4-pin, M12 x 1 connector , 330 mm total length Receiver: connecting cable with 8-pin, M12 x 1 connector , 350 mm total length Material Housingextruded aluminum section , Silver anodized Optical facePlastic pane , Polycarbonate Masssee Table 1, max. 1750 g (per profile) Cable lengthmax. 30 m Classifications SystemClasscode ECLASS 11.027270910 ECLASS 10.0.127270910 ECLASS 9.027270910 ECLASS 8.027270910 ECLASS 5.127270910 ETIM 8.0EC002549 ETIM 7.0EC002549 ETIM 6.0EC002549 ETIM 5.0EC002549 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  LGM25 Product Description Measuring automation light grid with beam spacing of 25 mm, IO-Link interface, push-pull output, fixed cable with M12 plug General specifications Effective detection rangeStandard : 0.3 ... 6 m Threshold detection range7.5 m Light sourceIRED Light typemodulated infrared light , 850 nm Field heightsee Table 1, max. 3200 mm Beam crossoverFactory setting: three beam crossing, deactivateable Beam blankingadjustable max. 2 fixed suppressible beam areas (blanking) Beam spacing25 mm Number of beamssee Table 1, max. 129 Operating modeEmitter: Emitter power adjustable in two ranges Optical resolutionwithout beam crossover: 25 mm with beam crossover: 12.5 mm with in 25%  and  75% of the range Opening angle10 ° Ambient light limit> 50000 Lux (if external light source is outside the opening angle) Functional safety related parameters MTTFd34 a Mission Time (TM)20 a Diagnostic Coverage (DC)60 % Indicators/operating means Operation indicatorLED green:constantly on - power-ondouble pulse flashing (0.8 Hz) - undervoltageflashing (4 Hz) - short circuitflashing with short interruptions (1 Hz) - IO-Link mode Status indicatorEmitter: LED yellow constantly on - high emitter power constantly off - low emitter power flashing (8 Hz) - error message Receiver: LED yellow: constantly on - object detected constantly off - no object detected flashing (4 Hz) - below stability control limit flashing (8 Hz) - error message Control elementsReceiver: 2 touch buttons for programming Electrical specifications Operating voltage18 ... 30 V DC Ripple10 % No-load supply currentEmitter ≤: 50 mA Receiver: ≤ 150 mA (without outputs) Time delay before availabilitysee Table 1, max. 2.3 s Interface Interface typeIO-Link ( pin 4 ) IO-Link revision1.0 Device ID1050369 ... 1050400 ( 0x100701 ... 0x100720 ) COM-ModeCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data width16 bit SIO mode supportyes Input Test inputEmitter switch-off with +UB or 0 V at pin 4 (emitter) Function inputRange input activation from 1.6 m with +UB or 0 V on pin 2 (emitter) Teach-In input for parameterization on pin 8 (receiver) Output Pre-fault indication outputStability Control (SC) 1 PNP, short-circuit protected, reverse polarity protected on pin 2 (receiver) Switching typeFactory setting: dark on , Switchable to light-on mode Signal outputCommand interface: Pin 4 IO-Link interface C or used as switching output Q; 1 short-circuit proof reverse polarity protected push-pull output (receiver)Switch output: Pin 5 switching output Q; 1 short-circuit proof reverse polarity protected push-pull output (receiver) synchronized with pin 4 Switching thresholdFactory setting: The signal tracking for the threshold value is deactivated, increasing the optical resolution by a maximum of 4 mm; switchable to active signal tracking Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V DC Switching frequencysee Table 1, max. 135 Hz Response timesee Table 1, max. 12 ms Timer functionOff-delay programmable from 0 ... 1.25 s in 5 ms steps (adjustment via IO-Link only) Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates Protection classIII ( IEC 61140 ) UL approvalcULus Listed CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Conductor cross sectionmin. 0.25 mm2 Housing width20 mm Housing depth30.5 mm Housing length Lsee Table 1, max. 3360 mm Degree of protectionIP67 ConnectionEmitter: connecting cable with 4-pin, M12 x 1 connector , 330 mm total length Receiver: connecting cable with 8-pin, M12 x 1 connector , 350 mm total length Material Housingextruded aluminum section , Silver anodized Optical facePlastic pane , Polycarbonate Masssee Table 1, max. 1750 g (per profile) Cable lengthmax. 30 m Classifications SystemClasscode ECLASS 11.027270910 ECLASS 10.0.127270910 ECLASS 9.027270910 ECLASS 8.027270910 ECLASS 5.127270910 ETIM 8.0EC002549 ETIM 7.0EC002549 ETIM 6.0EC002549 ETIM 5.0EC002549 UNSPSC 12.139121528
