GLV18-8-H-120/59/102/115 PEPPERL+FUCHS - Part number: 212929
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

GLV18-8-H-120/59/102/115 PEPPERL+FUCHS - Part number: 212929

PEPPERL+FUCHS

confronta
GLV18-8-H-120/59/102/115 PEPPERL+FUCHS - Part number: 212929

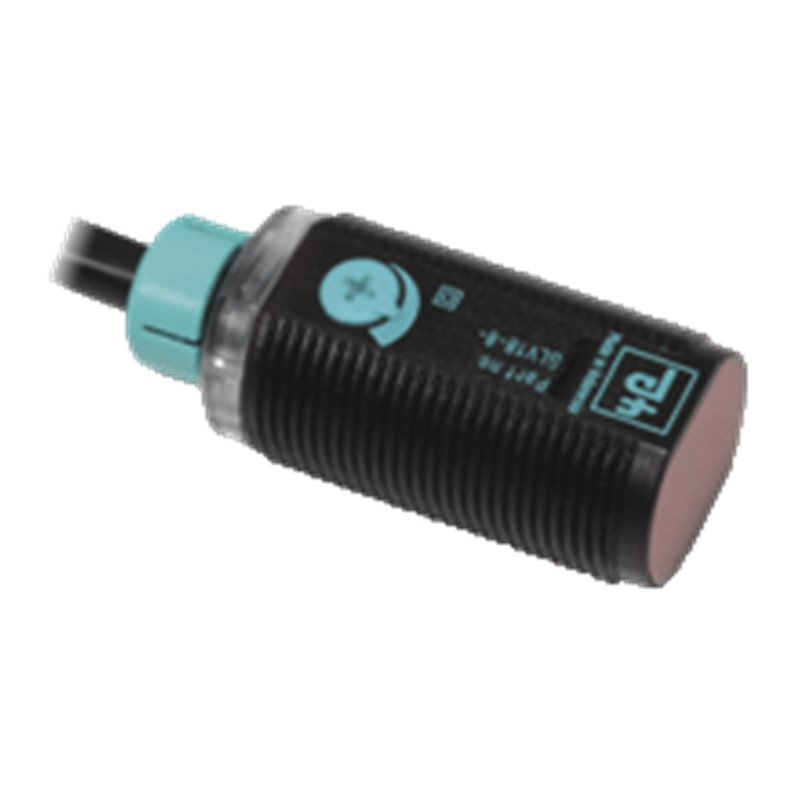

Background suppression sensor GLV18-8-H-120/59/102/115 GLV18-8-H-120/59/102/115 Efficient Line in a short M18 plastic housing for standard applications Best background suppressor in its class Minimal black-white difference 4 LEDs indicator for 360° visibility Optimized potentiometer design for a clear control button layout in the application Background suppression sensor GLV18-8-H-120/59/102/115 GLV18-8-H-120/59/102/115 Efficient Line in a short M18 plastic housing for standard applications Best background suppressor in its class Minimal black-white difference 4 LEDs indicator for 360° visibility Optimized potentiometer design for a clear control button layout in the application

MPNs 212929, PEP212929, GLV18-8-H-120/59/102/115
Codice HS 85365090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  GLV18-8-H-120/59/102/115 Product Description Triangulation sensor with background suppression, M18 threaded housing design, plastic housing, front optical face, 120 mm detection range, red light, dark on, DC version, NPN output, fixed cable General specifications Detection range10 ... 120 mm Detection range min.10 ... 40 mm Detection range max.15 ... 120 mm Adjustment range40 ... 120 mm Reference target100 mm x 100 mm Kodak white Light sourceLED Light typemodulated visible red light , 640 nm Black-white difference (6 %/90 %)< 6 % Diameter of the light spot6 mm at detection range 120 mm Opening angle2 ° Optical facefrontal Ambient light limit30000 Lux Hysteresis< 2 % Functional safety related parameters MTTFd1340 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on Function indicatorLED yellow: lights when object is detected Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC No-load supply current< 15 mA Output Switching typedark on Signal output1 NPN, short-circuit protected open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time≤ 1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates Protection classII, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection2 m fixed cable Material HousingPC Optical facePMMA CablePVC Mass75 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  GLV18-8-H-120/59/102/115 Product Description Triangulation sensor with background suppression, M18 threaded housing design, plastic housing, front optical face, 120 mm detection range, red light, dark on, DC version, NPN output, fixed cable General specifications Detection range10 ... 120 mm Detection range min.10 ... 40 mm Detection range max.15 ... 120 mm Adjustment range40 ... 120 mm Reference target100 mm x 100 mm Kodak white Light sourceLED Light typemodulated visible red light , 640 nm Black-white difference (6 %/90 %)< 6 % Diameter of the light spot6 mm at detection range 120 mm Opening angle2 ° Optical facefrontal Ambient light limit30000 Lux Hysteresis< 2 % Functional safety related parameters MTTFd1340 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on Function indicatorLED yellow: lights when object is detected Control elementsSensing range adjuster Electrical specifications Operating voltage10 ... 30 V DC No-load supply current< 15 mA Output Switching typedark on Signal output1 NPN, short-circuit protected open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time≤ 1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates Protection classII, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection2 m fixed cable Material HousingPC Optical facePMMA CablePVC Mass75 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528
