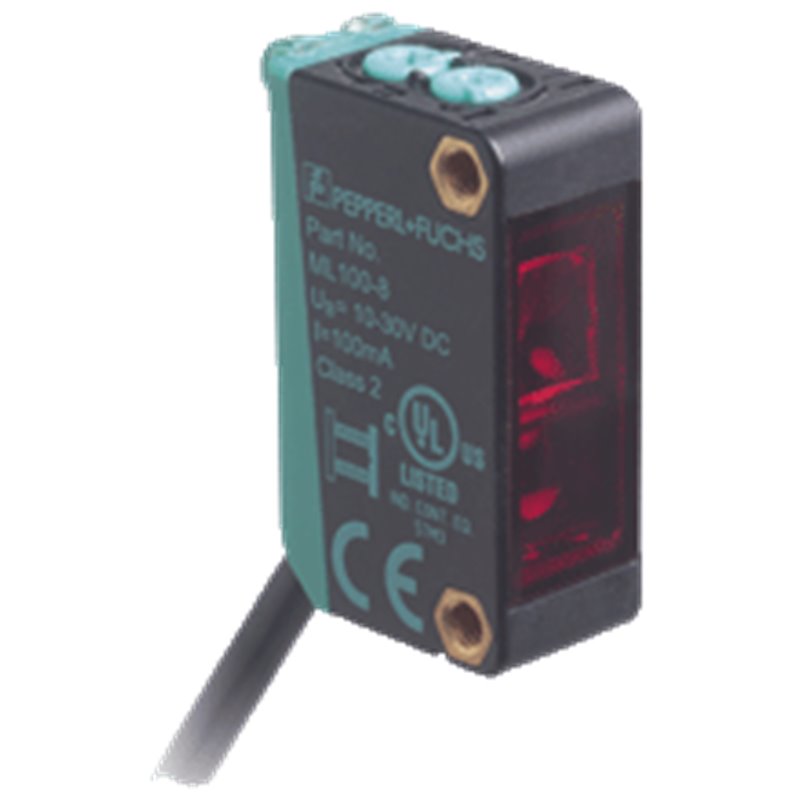

ML100-8-H-3704 PEPPERL+FUCHS - Part number: 243103

Datasheet excerpt: Technical data of  ML100-8-H-3704 Product Description Triangulation sensor with background suppression, 350 mm adjustable detection range, red light, light/dark on, pnp output, fixed cable with Stocko plug General specifications Detection range5 ... 350 mm Detection range min.5 ... 30 mm Detection range max.5 ... 350 mm Adjustment range30 ... 350 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light Polarization filterno Black-white difference (6 %/90 %)< 18 % at 350 mm Diameter of the light spot20 mm at a distance of 350 mm Opening angle4 ° Optical facefrontal Ambient light limitEN 60947-5-2:2007+A1:2012 Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorLED yellow: lights when object is detected Control elementsSensing range adjuster Control elementsLight-on/dark-on changeover switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 20 mA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: light-on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height31 mm Housing depth20 mm Degree of protectionIP67 Connectionfixed cable 265 mm with Stocko plug , 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass50 g Tightening torque, fastening screws0.6 Nm Cable length0.265 m Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  ML100-8-H-3704 Product Description Triangulation sensor with background suppression, 350 mm adjustable detection range, red light, light/dark on, pnp output, fixed cable with Stocko plug General specifications Detection range5 ... 350 mm Detection range min.5 ... 30 mm Detection range max.5 ... 350 mm Adjustment range30 ... 350 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light Polarization filterno Black-white difference (6 %/90 %)< 18 % at 350 mm Diameter of the light spot20 mm at a distance of 350 mm Opening angle4 ° Optical facefrontal Ambient light limitEN 60947-5-2:2007+A1:2012 Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorLED yellow: lights when object is detected Control elementsSensing range adjuster Control elementsLight-on/dark-on changeover switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 20 mA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: light-on Signal output1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height31 mm Housing depth20 mm Degree of protectionIP67 Connectionfixed cable 265 mm with Stocko plug , 4-pin Material HousingPC (Polycarbonate) Optical facePMMA Mass50 g Tightening torque, fastening screws0.6 Nm Cable length0.265 m Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528
