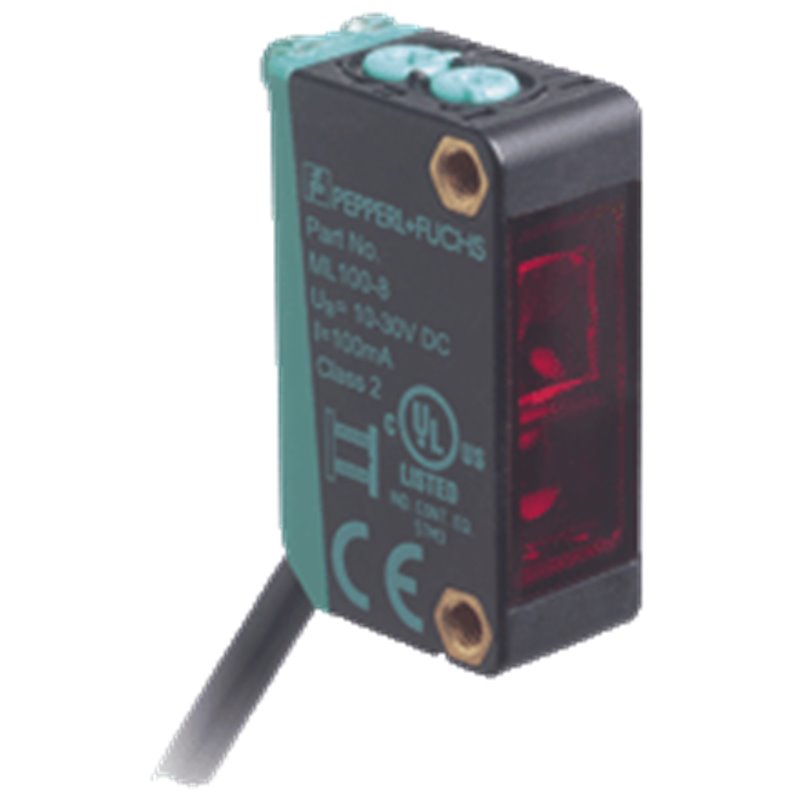

ML100-8-H-5374/115/120/162 PEPPERL+FUCHS - Part number: 280994
NFS
Non disponibile - Backorder
Da ordinare dal produttore
313,01 USD

Tasse di importazione escluse

Devi essere autenticato

ML100-8-H-5374/115/120/162 PEPPERL+FUCHS - Part number: 280994

PEPPERL+FUCHS

confronta
ML100-8-H-5374/115/120/162 PEPPERL+FUCHS - Part number: 280994

Background suppression sensor ML100-8-H-5374/115/120/162 ML100-8-H-5374/115/120/162 Diffuse mode sensor with multiple light spots Specially designed for detecting critical objects such as PCBs Miniature design Detects objects in front of a close background through precise background suppression Can be adapted to the application in question thanks to the adjustable detection range Precision object detection, almost irrespective of the color Not sensitive to ambient light, even with switched energy saving lamps Background suppression sensor ML100-8-H-5374/115/120/162 ML100-8-H-5374/115/120/162 Diffuse mode sensor with multiple light spots Specially designed for detecting critical objects such as PCBs Miniature design Detects objects in front of a close background through precise background suppression Can be adapted to the application in question thanks to the adjustable detection range Precision object detection, almost irrespective of the color Not sensitive to ambient light, even with switched energy saving lamps

MPNs 280994, PEP280994, ML100-8-H-5374/115/120/162
Codice HS 85365090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
313,01 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  ML100-8-H-5374/115/120/162 Product Description Diffuse mode sensor with special light spots for detecting PCBs, background suppression, miniature design, 100 mm detection range, red light, light/dark on, PNP outputs, fixed cable General specifications Detection range20 ... 100 mm preset to 50 ... mm Detection range min.10 ... 25 mm Detection range max.25 ... 100 mm Adjustment range25 ... 100 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light Polarization filterno Black-white difference (6 %/90 %)< 20 % Diameter of the light spot3 light spots, spotsize 4 mm at a distance of 50 mm, spots are 8 mm apart; spotsize 2.5 mm at a distance of 80 mm, spots are 12 mm apart; spotsize 4 mm at a distance of 100 mm, spots are 15 mm apart (outer spot to outer spot) Optical facefrontal Ambient light limitEN 60947-5-2:2007+A1:2012 Functional safety related parameters MTTFd1100 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorLED yellow: lights when object is detected , flashes when in adjustment mode Control elementsSensing range adjuster Control elementsLight-on/dark-on changeover switch preset to dark-on Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 15 mA Output Switching typeThe default setting is: dark-on Signal output2 PNP outputs, independent short-circuit protected , reverse polarity protected , open collector transistor Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Compliance with standards and directives Directive conformity EMC Directive 2004/108/ECEN 60947-5-2:2007+A1:2012 Standard conformity StandardsUL 60947-5-2 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height31 mm Housing depth20 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass50 g Tightening torque, fastening screws0.6 Nm Cable length2 m Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  ML100-8-H-5374/115/120/162 Product Description Diffuse mode sensor with special light spots for detecting PCBs, background suppression, miniature design, 100 mm detection range, red light, light/dark on, PNP outputs, fixed cable General specifications Detection range20 ... 100 mm preset to 50 ... mm Detection range min.10 ... 25 mm Detection range max.25 ... 100 mm Adjustment range25 ... 100 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light Polarization filterno Black-white difference (6 %/90 %)< 20 % Diameter of the light spot3 light spots, spotsize 4 mm at a distance of 50 mm, spots are 8 mm apart; spotsize 2.5 mm at a distance of 80 mm, spots are 12 mm apart; spotsize 4 mm at a distance of 100 mm, spots are 15 mm apart (outer spot to outer spot) Optical facefrontal Ambient light limitEN 60947-5-2:2007+A1:2012 Functional safety related parameters MTTFd1100 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorLED yellow: lights when object is detected , flashes when in adjustment mode Control elementsSensing range adjuster Control elementsLight-on/dark-on changeover switch preset to dark-on Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 15 mA Output Switching typeThe default setting is: dark-on Signal output2 PNP outputs, independent short-circuit protected , reverse polarity protected , open collector transistor Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Compliance with standards and directives Directive conformity EMC Directive 2004/108/ECEN 60947-5-2:2007+A1:2012 Standard conformity StandardsUL 60947-5-2 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height31 mm Housing depth20 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass50 g Tightening torque, fastening screws0.6 Nm Cable length2 m Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528
