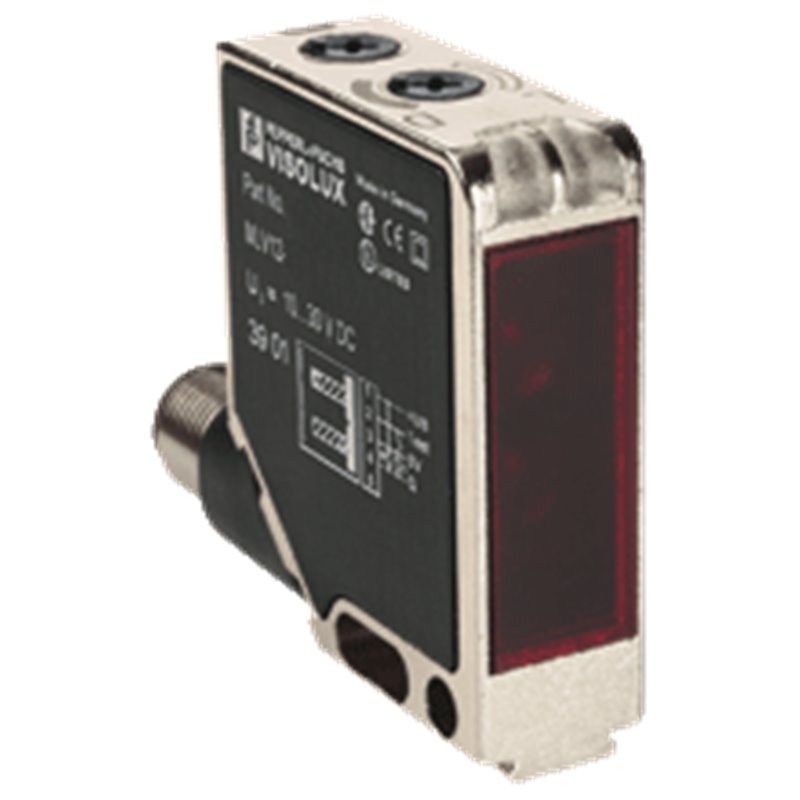

MLV12-8-H-250-RT/47/65b/92/134 PEPPERL+FUCHS - Part number: 129706

Datasheet excerpt: Technical data of  MLV12-8-H-250-RT/47/65b/92/134 Product Description Triangulation sensor with background suppression in a widely used standard housing, red light, 250 mm detection range, electrically adjustable, glass panel, light/dark on, two PNP outputs, M12 plug General specifications Detection range20 ... 250 mm , adjustable Detection range min.20 ... 50 mm Detection range max.20 ... 250 mm Adjustment range50 ... 250 mm Light sourceLED Light typemodulated visible red light , 660 nm Black-white difference (6 %/90 %)10 % at 250 mm Diameter of the light spot8 mm at Tw 250 mm Opening angle1.5 ° Ambient light limit Continuous light30000 Lux Modulated light5000 Lux Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicator2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range Control elementspotentiometer for light/dark, detection range adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current≤ 55 mA Output Switching typelight/dark on switchable Signal output2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.2 A Voltage drop≤ 2.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 300 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width41.5 mm Housing height49 mm Housing depth15 mm Degree of protectionIP67 Connection4-pin, M12 metal connector, 90° rotatable Material HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC Optical faceScratch resistant mineral glass lens Mass60 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  MLV12-8-H-250-RT/47/65b/92/134 Product Description Triangulation sensor with background suppression in a widely used standard housing, red light, 250 mm detection range, electrically adjustable, glass panel, light/dark on, two PNP outputs, M12 plug General specifications Detection range20 ... 250 mm , adjustable Detection range min.20 ... 50 mm Detection range max.20 ... 250 mm Adjustment range50 ... 250 mm Light sourceLED Light typemodulated visible red light , 660 nm Black-white difference (6 %/90 %)10 % at 250 mm Diameter of the light spot8 mm at Tw 250 mm Opening angle1.5 ° Ambient light limit Continuous light30000 Lux Modulated light5000 Lux Functional safety related parameters MTTFd650 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicator2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range Control elementspotentiometer for light/dark, detection range adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current≤ 55 mA Output Switching typelight/dark on switchable Signal output2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.2 A Voltage drop≤ 2.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 300 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width41.5 mm Housing height49 mm Housing depth15 mm Degree of protectionIP67 Connection4-pin, M12 metal connector, 90° rotatable Material HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC Optical faceScratch resistant mineral glass lens Mass60 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528
