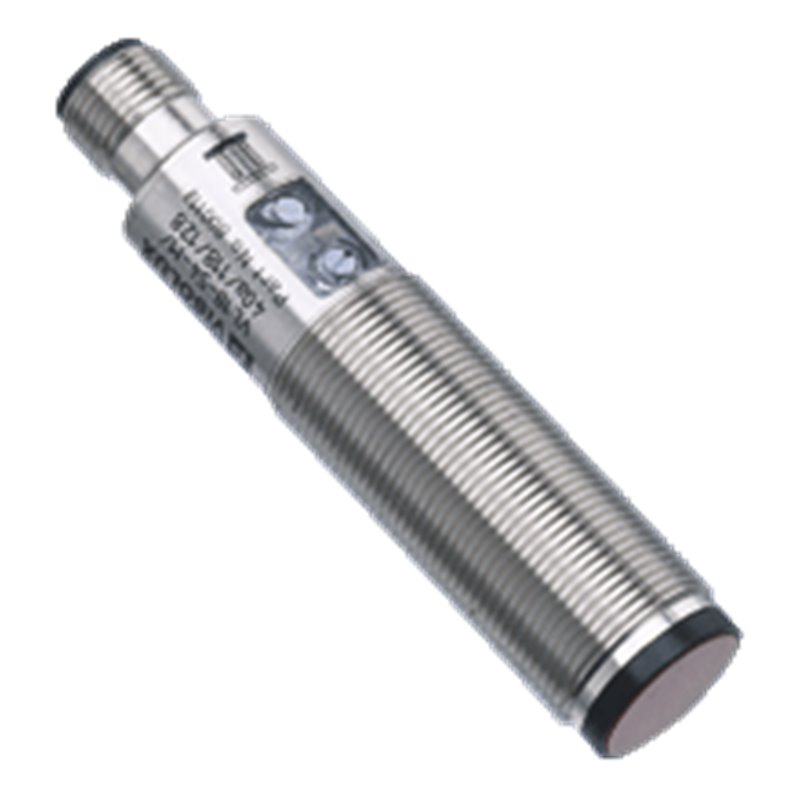

VT18-8-H-120-M/40a/65b/118/128 PEPPERL+FUCHS - Part number: 800191

Datasheet excerpt: Technical data of  VT18-8-H-120-M/40a/65b/118/128 Product Description Triangulation sensor with background suppression, M18 threaded housing design, metal housing, front optical face, 120 mm detection range, red light, light/dark on, DC version, push-pull output, M12 plug General specifications Detection range20 ... 120 mm , adjustable Detection range min.20 ... 40 mm Detection range max.20 ... 120 mm Light sourceLED Light typemodulated visible red light , 660 nm Black-white difference (6 %/90 %)< 10 % at a distance of 120 mm Diameter of the light spot6 mm at a distance of 120 mm Optical facefrontal Ambient light limit30000 Lux Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicatorLED yellow, lights up with receiver lit Control elementsSensing range adjuster, light-on/dark-on changeover switch Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current< 35 mA Protection classII , rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 Output Switching typelight/dark on, switchable Signal outputPush-pull (4 in 1) output short-circuit protected overvoltage protected Switching voltage30 V DC Switching currentmax. 200 mA Switching frequency500 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates CE conformityyes UL approvalcULus Listed, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection4-pin, M12 x 1 connector Material Housingbrass, nickel-plated Optical facePMMA Mass60 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  VT18-8-H-120-M/40a/65b/118/128 Product Description Triangulation sensor with background suppression, M18 threaded housing design, metal housing, front optical face, 120 mm detection range, red light, light/dark on, DC version, push-pull output, M12 plug General specifications Detection range20 ... 120 mm , adjustable Detection range min.20 ... 40 mm Detection range max.20 ... 120 mm Light sourceLED Light typemodulated visible red light , 660 nm Black-white difference (6 %/90 %)< 10 % at a distance of 120 mm Diameter of the light spot6 mm at a distance of 120 mm Optical facefrontal Ambient light limit30000 Lux Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicatorLED yellow, lights up with receiver lit Control elementsSensing range adjuster, light-on/dark-on changeover switch Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current< 35 mA Protection classII , rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 Output Switching typelight/dark on, switchable Signal outputPush-pull (4 in 1) output short-circuit protected overvoltage protected Switching voltage30 V DC Switching currentmax. 200 mA Switching frequency500 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Approvals and certificates CE conformityyes UL approvalcULus Listed, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection4-pin, M12 x 1 connector Material Housingbrass, nickel-plated Optical facePMMA Mass60 g Classifications SystemClasscode ECLASS 11.027270904 ECLASS 10.0.127270904 ECLASS 9.027270904 ECLASS 8.027270904 ECLASS 5.127270904 ETIM 8.0EC002719 ETIM 7.0EC002719 ETIM 6.0EC002719 ETIM 5.0EC002719 UNSPSC 12.139121528
