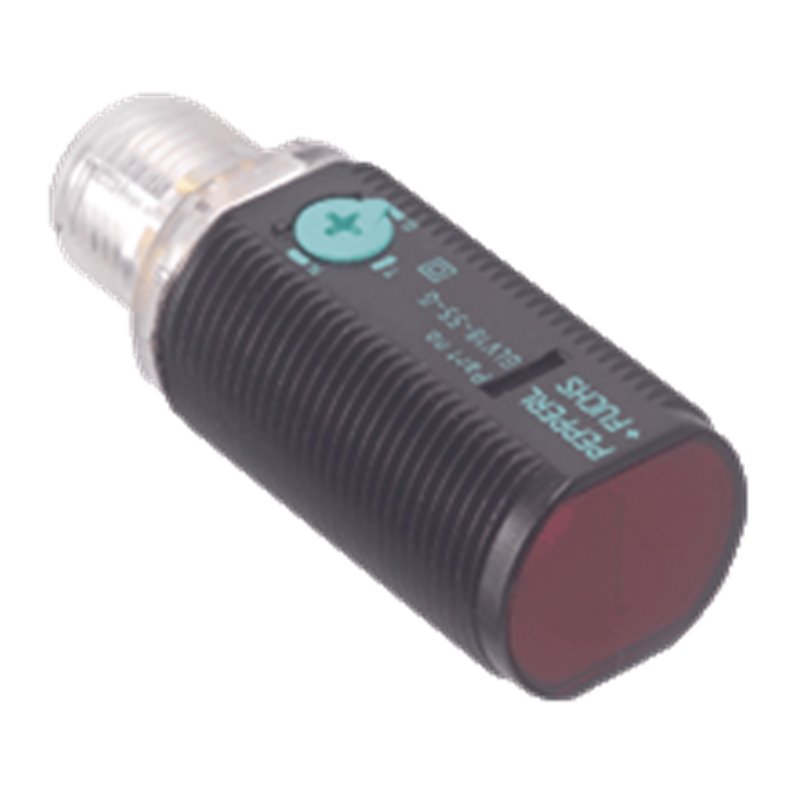

GLV18-55-G/25/102/159 PEPPERL+FUCHS - Part number: 214920

Datasheet excerpt: Technical data of  GLV18-55-G/25/102/159 Product Description Retroreflective sensor for glass detection, M18 threaded housing design, plastic housing, front optical face, 2.5 m detection range, red light, light on, DC version, NPN output, M12 plug General specifications Effective detection range0 ... 2.5 m in glass mode; 0 ... 5 m in normal mode Reflector distance0 ... 2.5 m in glass mode; 0 ... 5 m in normal mode Threshold detection range6.5 m Reference targetreflector C110-2 Light sourceLED Light typemodulated visible red light , 640 nm Polarization filteryes Diameter of the light spot370 mm at 6.5 m ; 50 mm at 1 m Opening angle2 ° Optical facefrontal Ambient light limit30000 Lux Functional safety related parameters MTTFd1260 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on,blinking with 2 Hz or 4 Hz in Teach-In mode Function indicatorLED yellow: In retro-reflective mode: Lights up when light beam is free; flashing if signal is short of function reserve, off when light beam is interrupted In glass-mode: Lights up when light beam is free; flashing if further compensation is impossible; off when light beam is interrupted Control elementspotentiometer for Teach-In and Mode selection Contrast detection levels18 % - clear glass bottles Electrical specifications Operating voltage10 ... 30 V DC No-load supply current< 15 mA Output Switching typelight-on Signal output1 NPN, short-circuit protected open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 1.5 V DC Switching frequency1 kHz Response time≤ 0.5 ms Conformity Product standardEN 60947-5-2 Approvals and certificates Protection classII, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection3-pin, M12 x 1 connector Material HousingPC Optical facePMMA Connectorplastic Mass10 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  GLV18-55-G/25/102/159 Product Description Retroreflective sensor for glass detection, M18 threaded housing design, plastic housing, front optical face, 2.5 m detection range, red light, light on, DC version, NPN output, M12 plug General specifications Effective detection range0 ... 2.5 m in glass mode; 0 ... 5 m in normal mode Reflector distance0 ... 2.5 m in glass mode; 0 ... 5 m in normal mode Threshold detection range6.5 m Reference targetreflector C110-2 Light sourceLED Light typemodulated visible red light , 640 nm Polarization filteryes Diameter of the light spot370 mm at 6.5 m ; 50 mm at 1 m Opening angle2 ° Optical facefrontal Ambient light limit30000 Lux Functional safety related parameters MTTFd1260 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on,blinking with 2 Hz or 4 Hz in Teach-In mode Function indicatorLED yellow: In retro-reflective mode: Lights up when light beam is free; flashing if signal is short of function reserve, off when light beam is interrupted In glass-mode: Lights up when light beam is free; flashing if further compensation is impossible; off when light beam is interrupted Control elementspotentiometer for Teach-In and Mode selection Contrast detection levels18 % - clear glass bottles Electrical specifications Operating voltage10 ... 30 V DC No-load supply current< 15 mA Output Switching typelight-on Signal output1 NPN, short-circuit protected open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 1.5 V DC Switching frequency1 kHz Response time≤ 0.5 ms Conformity Product standardEN 60947-5-2 Approvals and certificates Protection classII, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection3-pin, M12 x 1 connector Material HousingPC Optical facePMMA Connectorplastic Mass10 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
