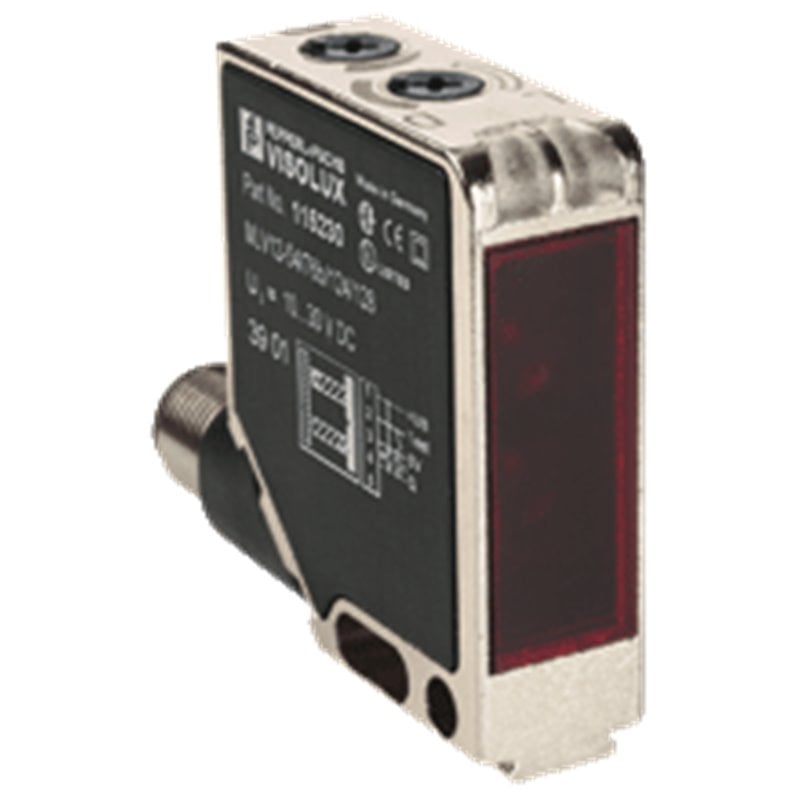

MLV12-54-LAS/92/120 PEPPERL+FUCHS - Part number: 128108

Datasheet excerpt: Technical data of  MLV12-54-LAS/92/120 Product Description Laser retroreflective sensor, small design, polarization filter, 21 m detection range, laser red light, light/dark on, 2 PNP outputs, M12 plug General specifications Effective detection range0 ... 12 m Reflector distance0 ... 12 m Threshold detection range17 m Reference targetMH82 reflector Light sourcelaser diode Light typemodulated visible red light Polarization filteryes Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length650 nm Beam divergence< 1.5 mrad Pulse length1.8 µs Repetition rate17.86 kHz max. pulse energy6.7 nJ Diameter of the light spot5 mm x 12 mm at 15 m detection range Opening angle0.02 ° Ambient light limit Continuous light50000 Lux Modulated light5000 Lux Functional safety related parameters MTTFd930 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicator2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted Control elementsrotary switch for light/dark, sensitivity adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 40 mA Output Switching typelight/dark on switchable Signal output2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2.5 V DC Switching frequency2500 Hz Response time0.2 ms Conformity Product standardEN 60947-5-2 Laser safetyIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Laser classIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 300 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 50 °C (14 ... 122 °F) Storage temperature-20 ... 65 °C (-4 ... 149 °F) Mechanical specifications Housing width41.5 mm Housing height49 mm Housing depth15 mm Degree of protectionIP67 Connection4-pin, M12 metal connector, 90° rotatable Material HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC Optical facePlastic pane Mass60 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  MLV12-54-LAS/92/120 Product Description Laser retroreflective sensor, small design, polarization filter, 21 m detection range, laser red light, light/dark on, 2 PNP outputs, M12 plug General specifications Effective detection range0 ... 12 m Reflector distance0 ... 12 m Threshold detection range17 m Reference targetMH82 reflector Light sourcelaser diode Light typemodulated visible red light Polarization filteryes Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length650 nm Beam divergence< 1.5 mrad Pulse length1.8 µs Repetition rate17.86 kHz max. pulse energy6.7 nJ Diameter of the light spot5 mm x 12 mm at 15 m detection range Opening angle0.02 ° Ambient light limit Continuous light50000 Lux Modulated light5000 Lux Functional safety related parameters MTTFd930 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicator2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted Control elementsrotary switch for light/dark, sensitivity adjuster Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentmax. 40 mA Output Switching typelight/dark on switchable Signal output2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2.5 V DC Switching frequency2500 Hz Response time0.2 ms Conformity Product standardEN 60947-5-2 Laser safetyIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Laser classIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 300 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-10 ... 50 °C (14 ... 122 °F) Storage temperature-20 ... 65 °C (-4 ... 149 °F) Mechanical specifications Housing width41.5 mm Housing height49 mm Housing depth15 mm Degree of protectionIP67 Connection4-pin, M12 metal connector, 90° rotatable Material HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC Optical facePlastic pane Mass60 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
