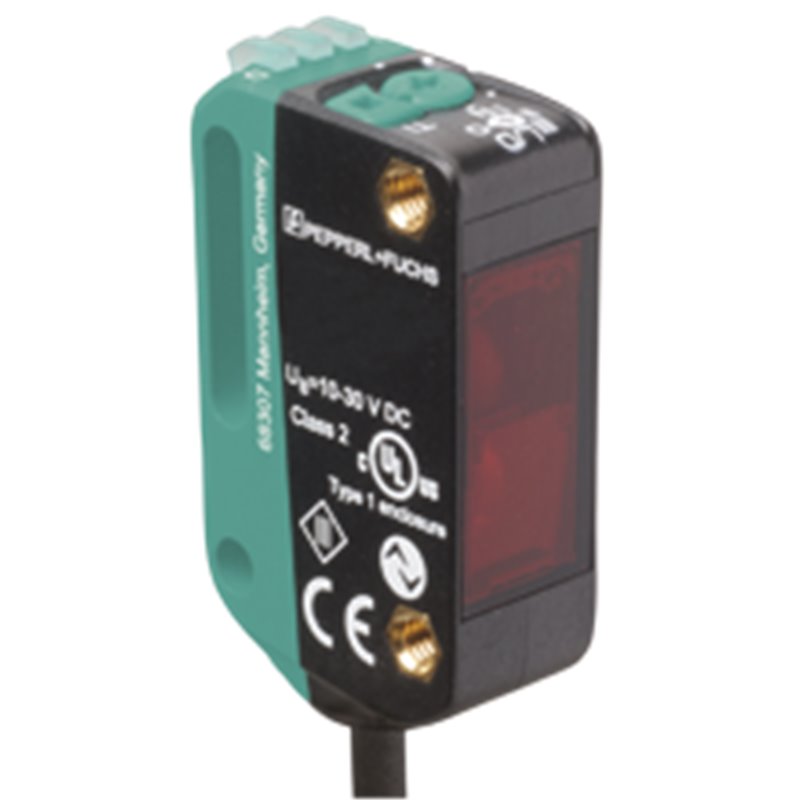

OBG5000-R100-2EP-IO PEPPERL+FUCHS - Part number: 267075-100007

Datasheet excerpt: Technical data of  OBG5000-R100-2EP-IO Product Description Retroreflective sensor with polarization filter for clear object detection General specifications Effective detection range0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N" Reflector distance0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N" Threshold detection range6 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Diameter of the light spot170 mm at a distance of 3.5 m Opening angle5 ° Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd600 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Contrast detection levels10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = BK ) IO-Link revision1.1 Device ID0x110A01 (1116673) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - WH: NPN normally closed / light-on, PNP normally open / dark-on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height37.1 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass36 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBG5000-R100-2EP-IO Product Description Retroreflective sensor with polarization filter for clear object detection General specifications Effective detection range0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N" Reflector distance0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N" Threshold detection range6 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Diameter of the light spot170 mm at a distance of 3.5 m Opening angle5 ° Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd600 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Contrast detection levels10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = BK ) IO-Link revision1.1 Device ID0x110A01 (1116673) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - WH: NPN normally closed / light-on, PNP normally open / dark-on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency500 Hz Response time1 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height37.1 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass36 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
