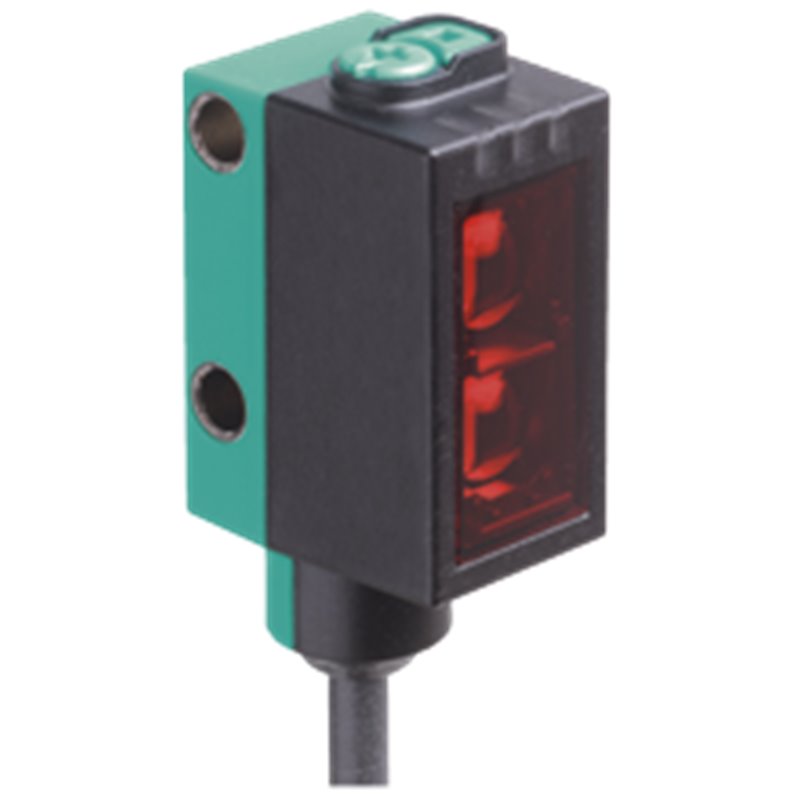

OBR7500-R101-E5-IO-0,3M-V1 PEPPERL+FUCHS - Part number: 267075-100605

Datasheet excerpt: Technical data of  OBR7500-R101-E5-IO-0,3M-V1 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 7.5 m Reflector distance0.03 ... 7.5 m Threshold detection range10 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Polarization filteryes Diameter of the light spot65 mm at a distance of 1 m Opening angle3.7 ° Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd724 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorGreen LED:Permanently lit - power onFlashing (4 Hz) - short circuit Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsLight-on/dark-on changeover switch Control elementssensitivity adjustment Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link Revision1.1 Device ID0x110216 (1114646) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Switching typeThe default setting is: C/Q - Pin4: PNP normally open / dark-on, IO-Link n.c. - Pin2: open Signal output1 PNP, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width13.9 mm Housing height33.8 mm Housing depth18.3 mm Degree of protectionIP67 / IP69 / IP69K Connection300 mm fixed cable with M12 x 1, 4-pin connector Material HousingPC (Polycarbonate) Optical facePMMA Mass21 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBR7500-R101-E5-IO-0,3M-V1 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 7.5 m Reflector distance0.03 ... 7.5 m Threshold detection range10 m Reference targetH85-2 reflector Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Polarization filteryes Diameter of the light spot65 mm at a distance of 1 m Opening angle3.7 ° Ambient light limitEN 60947-5-2 Functional safety related parameters MTTFd724 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorGreen LED:Permanently lit - power onFlashing (4 Hz) - short circuit Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsLight-on/dark-on changeover switch Control elementssensitivity adjustment Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link Revision1.1 Device ID0x110216 (1114646) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input 2 BitProcess data output 2 Bit SIO mode supportyes Compatible master port typeA Output Switching typeThe default setting is: C/Q - Pin4: PNP normally open / dark-on, IO-Link n.c. - Pin2: open Signal output1 PNP, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width13.9 mm Housing height33.8 mm Housing depth18.3 mm Degree of protectionIP67 / IP69 / IP69K Connection300 mm fixed cable with M12 x 1, 4-pin connector Material HousingPC (Polycarbonate) Optical facePMMA Mass21 g Cable length0.3 m Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
