OBS4000-18GM60-E4 PEPPERL+FUCHS - Part number: 087798

PEPPERL+FUCHS

confronta

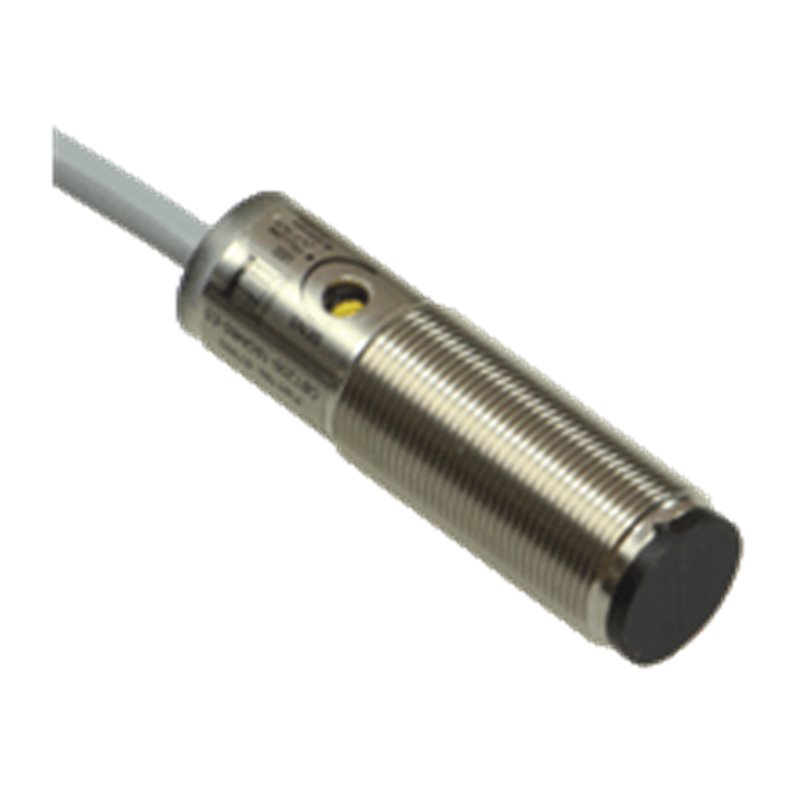

Retroreflective sensor OBS4000-18GM60-E4 OBS4000-18GM60-E4 Dual color indication LED Glare protected with polarization filter Light/dark ON, programmable Sensitivity adjuster for optimal adaptation to the application Degree of protection IP67 Strong metallic housing in cylindrical shape M18 x 1

MPNs 087798, PEP087798, OBS4000-18GM60-E4

Codice HS 85365090

Peso 0.11 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of OBS4000-18GM60-E4 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 4 m Threshold detection range4.5 m Reference targetH50 reflector Light sourceLED Light typemodulated visible red light , 660 nm Polarization filteryes Diameter of the light spot200 mm at detection range 4 m Opening angle3 ° Optical facefrontal Ambient light limit10000 Lux Indicators/operating means Operation indicatorLED green Function indicatorDual color-LED, yellow/greenyellow: switching stategreen: power onflashing: stability control Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC , class 2 Ripple10 % No-load supply current≤ 25 mA Time delay before availability≤ 25 ms Output Switching typelight/dark on electrically switchable Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V Switching frequency500 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates UL approvalcULus Listed, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection2 m fixed cable Material Housingbrass, nickel-plated Optical facePMMA Mass110 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of OBS4000-18GM60-E4 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 4 m Threshold detection range4.5 m Reference targetH50 reflector Light sourceLED Light typemodulated visible red light , 660 nm Polarization filteryes Diameter of the light spot200 mm at detection range 4 m Opening angle3 ° Optical facefrontal Ambient light limit10000 Lux Indicators/operating means Operation indicatorLED green Function indicatorDual color-LED, yellow/greenyellow: switching stategreen: power onflashing: stability control Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC , class 2 Ripple10 % No-load supply current≤ 25 mA Time delay before availability≤ 25 ms Output Switching typelight/dark on electrically switchable Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V Switching frequency500 Hz Response time1 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates UL approvalcULus Listed, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection2 m fixed cable Material Housingbrass, nickel-plated Optical facePMMA Mass110 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528

Ottieni il tuo preventivo personalizzato ora

OBS4000-18GM60-E4 PEPPERL+FUCHS - Part number: 087798

Retroreflective sensor OBS4000-18GM60-E4 OBS4000-18GM60-E4 Dual color indication LED Glare protected with polarization filter Light/dark ON, programmable Sensitivity adjuster for optimal adaptation to the application Degree of protection IP67 Strong metallic housing in cylindrical shape M18 x 1

Ottieni il tuo preventivo personalizzato ora

Informazioni prodotto

Descrizione
