RL61-55-Z/115/136 PEPPERL+FUCHS - Part number: 911617

PEPPERL+FUCHS

confronta
RL61-55-Z/115/136 PEPPERL+FUCHS - Part number: 911617

Retroreflective sensor RL61-55-Z/115/136 RL61-55-Z/115/136 Cost-optimized series for standard tasks in a special design Compact design Wide range of mounting options thanks to cubic housing design with M30 thread 360° high visibility LEDs Programmable ON-delay, OFF-delay, and One-shot timers 4-in-1 output (push-pull) Retroreflective sensor RL61-55-Z/115/136 RL61-55-Z/115/136 Cost-optimized series for standard tasks in a special design Compact design Wide range of mounting options thanks to cubic housing design with M30 thread 360° high visibility LEDs Programmable ON-delay, OFF-delay, and One-shot timers 4-in-1 output (push-pull)

MPNs 911617, PEP911617, RL61-55-Z/115/136
Codice HS 85365090
Peso 0.15 kg

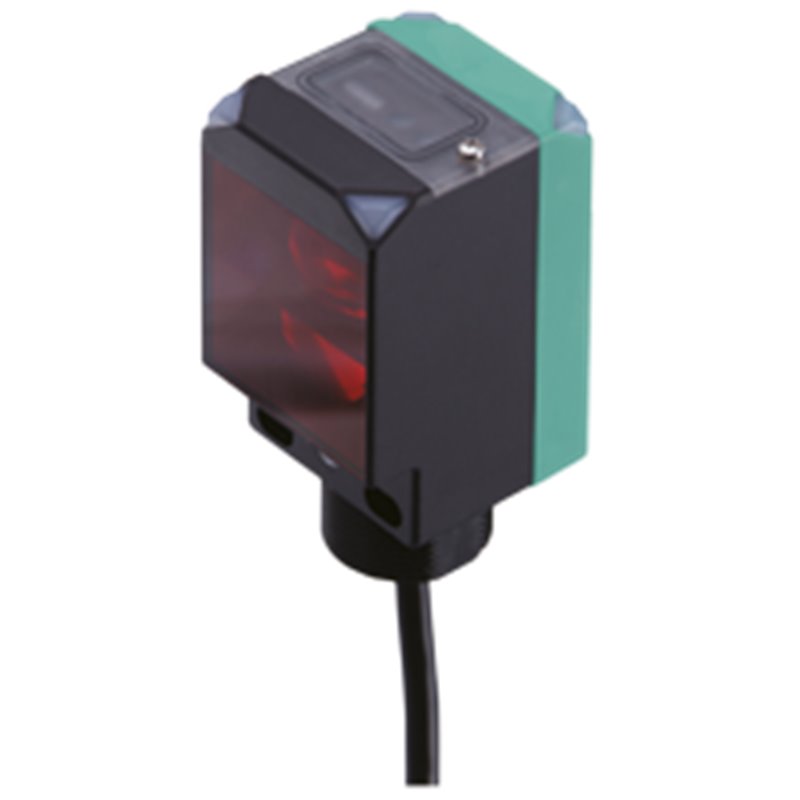

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  RL61-55-Z/115/136 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 18 m Reflector distance0.3 ... 18 m Threshold detection range25 m Reference targetFE-RR1 reflector Light sourceLED Light typemodulated visible red light , 630 nm Polarization filteryes Diameter of the light spot350 mm at a distance of 18 m Opening angle1.1 ° Ambient light limit5000 Lux ; according EN 60947-5-2 Indicators/operating means Operation indicator2 LEDs green Function indicator2 LEDs yellow on: reflector inside the sensing range off: reflector outside the sensing range Control elementsLight-on/dark-on changeover switch Control elementsSensing range adjuster Control elementsTime adjuster ( 0 ... 50 ms ) Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 35 mA Protection classII , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC Output Switching typelight/dark on, switchable Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V Switching frequency500 Hz Response time≤ 1 ms Timer functionDIP switch for selection of operating modes Compliance with standards and directives Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 55 °C (-40 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width45 mm Housing height73.7 mm Housing depth48.6 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass150 g Tightening torque, fastening screwsmax. 2 Nm Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RL61-55-Z/115/136 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 18 m Reflector distance0.3 ... 18 m Threshold detection range25 m Reference targetFE-RR1 reflector Light sourceLED Light typemodulated visible red light , 630 nm Polarization filteryes Diameter of the light spot350 mm at a distance of 18 m Opening angle1.1 ° Ambient light limit5000 Lux ; according EN 60947-5-2 Indicators/operating means Operation indicator2 LEDs green Function indicator2 LEDs yellow on: reflector inside the sensing range off: reflector outside the sensing range Control elementsLight-on/dark-on changeover switch Control elementsSensing range adjuster Control elementsTime adjuster ( 0 ... 50 ms ) Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply current≤ 35 mA Protection classII , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC Output Switching typelight/dark on, switchable Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V Switching frequency500 Hz Response time≤ 1 ms Timer functionDIP switch for selection of operating modes Compliance with standards and directives Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 55 °C (-40 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width45 mm Housing height73.7 mm Housing depth48.6 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass150 g Tightening torque, fastening screwsmax. 2 Nm Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
