RL91-6-IR/25/38a/115 PEPPERL+FUCHS - Part number: 419061
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

RL91-6-IR/25/38a/115 PEPPERL+FUCHS - Part number: 419061

PEPPERL+FUCHS

confronta
RL91-6-IR/25/38a/115 PEPPERL+FUCHS - Part number: 419061

Retroreflective sensor RL91-6-IR/25/38a/115 RL91-6-IR/25/38a/115 Retroreflective sensor for single-beam closing edge protection Narrow housing suitable for small gaps Sturdy plastic housing Various possibilities for mounting Version with infrared light Version for supply voltage of up to 30 V DC Light on version Retroreflective sensor RL91-6-IR/25/38a/115 RL91-6-IR/25/38a/115 Retroreflective sensor for single-beam closing edge protection Narrow housing suitable for small gaps Sturdy plastic housing Various possibilities for mounting Version with infrared light Version for supply voltage of up to 30 V DC Light on version

MPNs 419061, PEP419061, RL91-6-IR/25/38a/115
Codice HS 85365090
Peso 0.1 kg

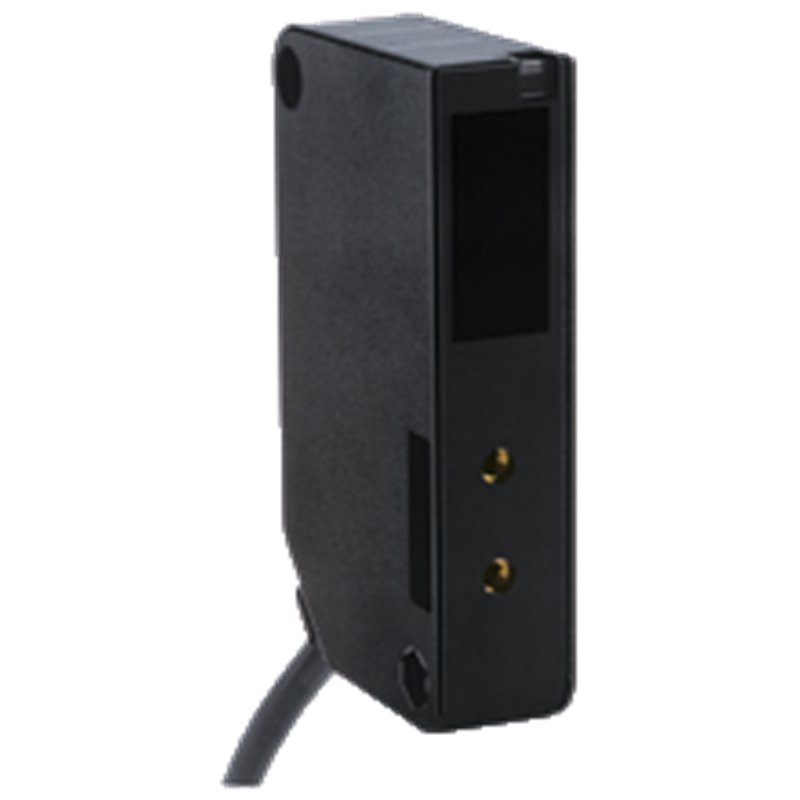

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  RL91-6-IR/25/38a/115 Product Description Mid-range photoelectric sensors for detecting people, objects, and vehicles General specifications Effective detection range0 ... 6 m Reflector distance0 ... 6 m Threshold detection range9 m Reference targetH85-2 reflector Light sourceLED Light typemodulated infrared light Diameter of the light spot230 mm at a distance of 6000 mm Opening angle2.5 ° Ambient light limit90000 Lux Functional safety related parameters MTTFd1083.4 a Indicators/operating means Function indicatorLED red, flashes when falling short of the stability control Electrical specifications Operating voltage12 ... 30 V DC / 18 ... 28 V AC No-load supply current< 100 mA Output Switching typelight-on Signal outputWeak current relay, 1 alternator Switching voltage≤ 55 V AC / 24 V DC Switching current1 A /24 V DC, 0.5 A /110 V AC Switching powermax. 24 W / 55 VA Switching frequency25 Hz Response time20 ms Conformity Product standardEN 60947-5-2 Approvals and certificates UL approvalcULus For overcurrent protection, install a fuse with a rated current of max. 5 A and min. 55 V AC CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Degree of protectionIP65 Connection5 m fixed cable Material HousingLuran® Optical faceLuran® Mass100 g NoteSafety fuse ≤ 315 mA (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RL91-6-IR/25/38a/115 Product Description Mid-range photoelectric sensors for detecting people, objects, and vehicles General specifications Effective detection range0 ... 6 m Reflector distance0 ... 6 m Threshold detection range9 m Reference targetH85-2 reflector Light sourceLED Light typemodulated infrared light Diameter of the light spot230 mm at a distance of 6000 mm Opening angle2.5 ° Ambient light limit90000 Lux Functional safety related parameters MTTFd1083.4 a Indicators/operating means Function indicatorLED red, flashes when falling short of the stability control Electrical specifications Operating voltage12 ... 30 V DC / 18 ... 28 V AC No-load supply current< 100 mA Output Switching typelight-on Signal outputWeak current relay, 1 alternator Switching voltage≤ 55 V AC / 24 V DC Switching current1 A /24 V DC, 0.5 A /110 V AC Switching powermax. 24 W / 55 VA Switching frequency25 Hz Response time20 ms Conformity Product standardEN 60947-5-2 Approvals and certificates UL approvalcULus For overcurrent protection, install a fuse with a rated current of max. 5 A and min. 55 V AC CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Degree of protectionIP65 Connection5 m fixed cable Material HousingLuran® Optical faceLuran® Mass100 g NoteSafety fuse ≤ 315 mA (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
