RLK28-55-LAS-Z/31/116 PEPPERL+FUCHS - Part number: 134128
NFS
Non disponibile - Backorder
Da ordinare dal produttore
756,76 USD

Tasse di importazione escluse

Devi essere autenticato

RLK28-55-LAS-Z/31/116 PEPPERL+FUCHS - Part number: 134128

PEPPERL+FUCHS

confronta
RLK28-55-LAS-Z/31/116 PEPPERL+FUCHS - Part number: 134128

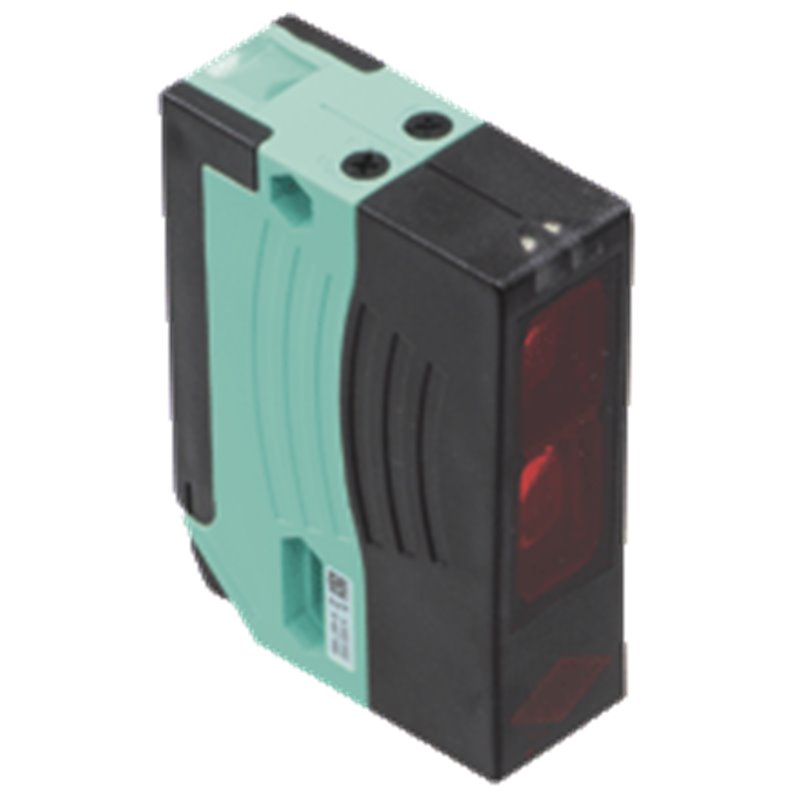

Retroreflective sensor RLK28-55-LAS-Z/31/116 RLK28-55-LAS-Z/31/116 Universal series with highly versatile fields of use Resistant against noise: reliable operation under all conditions Programmable time function GAN, GAB, IAB, as well as GAN-GAB and GAN-IAB as double function Laser version for long ranges Version with relay output Retroreflective sensor RLK28-55-LAS-Z/31/116 RLK28-55-LAS-Z/31/116 Universal series with highly versatile fields of use Resistant against noise: reliable operation under all conditions Programmable time function GAN, GAB, IAB, as well as GAN-GAB and GAN-IAB as double function Laser version for long ranges Version with relay output

MPNs 134128, PEP134128, RLK28-55-LAS-Z/31/116
Codice HS 85365090
Peso 0.11 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
756,76 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  RLK28-55-LAS-Z/31/116 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 30 m Reflector distance0.3 ... 30 m Threshold detection range42 m Reference targetMH82 reflector Light sourcelaser diode Light typemodulated visible red light Polarization filteryes Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length650 nm Beam divergence< 1.5 mrad Pulse length4.5 µs Repetition rate6 kHz ... 20 kHz max. pulse energy4 nJ Diameter of the light spot45 mm at 30 m Opening angleEmitter: < 0.1 ° Receiver: < 2 ° Ambient light limit50000 Lux Functional safety related parameters MTTFd450 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicator2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted Control elementssensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on switchable Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-one shot (GAN-IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment interval 0.1 ... 10 s Conformity Product standardEN 60947-5-2 Laser safetyEN 60825-1 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit insulated from control circuit in accordance with IEC 61140.Caution!The protection class 2 is only valid when the terminal compartment is closed. UL approvalE87056 , cULus Listed Caution: This equipment is considered as open-type equipment. It must be mounted within an enclosure, that is suitably designed for protection against internal fire and personal injury resulting from accessibility to live parts according UL 508. CCC approvalCertified by China Compulsory Certification (CCC) FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-10 ... 50 °C (14 ... 122 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth65.5 mm Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2 , Insulation stripping 7.5 ... 8.5 mm , M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass112 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  RLK28-55-LAS-Z/31/116 Product Description Retroreflective sensor with polarization filter General specifications Effective detection range0 ... 30 m Reflector distance0.3 ... 30 m Threshold detection range42 m Reference targetMH82 reflector Light sourcelaser diode Light typemodulated visible red light Polarization filteryes Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length650 nm Beam divergence< 1.5 mrad Pulse length4.5 µs Repetition rate6 kHz ... 20 kHz max. pulse energy4 nJ Diameter of the light spot45 mm at 30 m Opening angleEmitter: < 0.1 ° Receiver: < 2 ° Ambient light limit50000 Lux Functional safety related parameters MTTFd450 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicator2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted Control elementssensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on switchable Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-one shot (GAN-IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment interval 0.1 ... 10 s Conformity Product standardEN 60947-5-2 Laser safetyEN 60825-1 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit insulated from control circuit in accordance with IEC 61140.Caution!The protection class 2 is only valid when the terminal compartment is closed. UL approvalE87056 , cULus Listed Caution: This equipment is considered as open-type equipment. It must be mounted within an enclosure, that is suitably designed for protection against internal fire and personal injury resulting from accessibility to live parts according UL 508. CCC approvalCertified by China Compulsory Certification (CCC) FDA approvalIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Ambient conditions Ambient temperature-10 ... 50 °C (14 ... 122 °F) Storage temperature-20 ... 75 °C (-4 ... 167 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth65.5 mm Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2 , Insulation stripping 7.5 ... 8.5 mm , M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass112 g Classifications SystemClasscode ECLASS 11.027270902 ECLASS 10.0.127270902 ECLASS 9.027270902 ECLASS 8.027270902 ECLASS 5.127270902 ETIM 8.0EC002717 ETIM 7.0EC002717 ETIM 6.0EC002717 ETIM 5.0EC002717 UNSPSC 12.139121528
