E18-LAS/92 PEPPERL+FUCHS - Part number: 418497

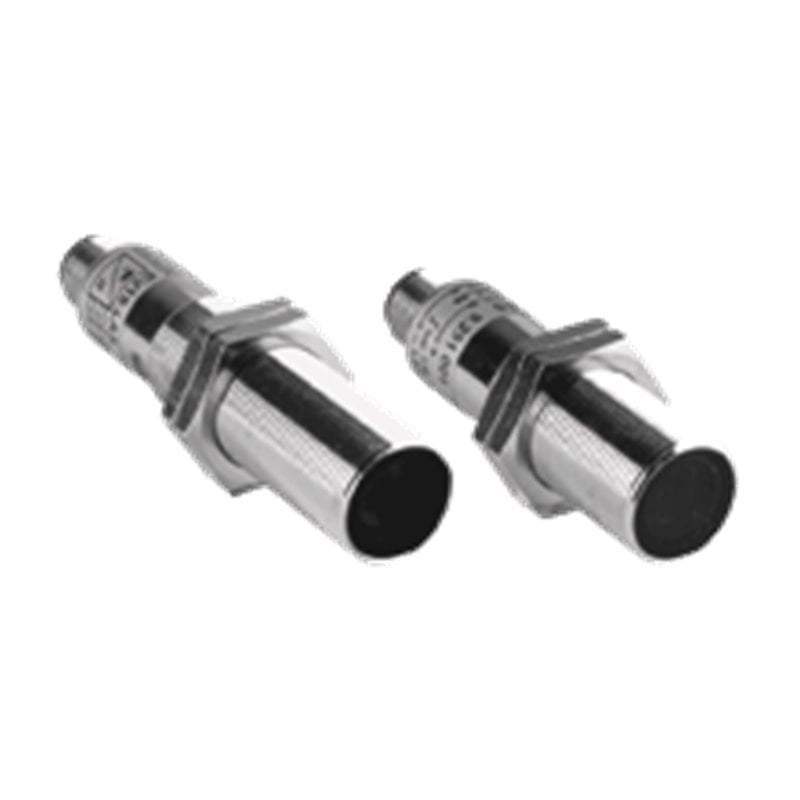

Datasheet excerpt: Technical data of  E18-LAS/EV18-LAS/25/32/76a/92 Product Description Laser thru-beam sensor, M18 threaded housing design, metal housing, front optical face, 10 m detection range, red light, light on, DC version, PNP output, test input, M12 plug System components EmitterE18-LAS/92 ReceiverEV18-LAS/32/92 General specifications Effective detection range0 ... 10 m Threshold detection range18 m Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length650 nm Beam divergence1 mrad Pulse length15 µs Repetition rate10 kHz max. pulse energy< 10.2 nJ Target size1.2 mm Light receiverphoto diode Diameter of the light spotapprox. 2 mm at detection range 1.5 m Opening angleReceiver +/-2° Optical facefrontal Ambient light limit Continuous light5000 Lux Hysteresis25 % Functional safety related parameters MTTFd208.3 a Mission Time (TM)7 a Diagnostic Coverage (DC)60 % Indicators/operating means Function indicatorLED yellow, lights up when light beam is free, flashes when falling short of the stability control Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply currentemitter ≤ 25 mA , receiver ≤ 60 mA Input Test inputEmitter deactivationemitter on: 0 ... +3Vemitter off: +5V ... +UB Output Pre-fault indication outputPNP, open collector , short-circuit protected inactive: signal strength > approx. 30 % of the strength with clean opticactive: signal strength < approx. 30 % of the strength with clean optic Switching typelight-on Signal output1 PNP, short-circuit protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Laser safetyIEC 60825-1:2007 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068, half-sine, 30 g in X, Y and Z direction Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature0 ... 50 °C (32 ... 122 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Degree of protectionIP65 Connection4-pin, M12 x 1 connector Material Housingbrass, nickel-plated Optical faceglass Connectormetal Massper 45 g Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  E18-LAS/EV18-LAS/25/32/76a/92 Product Description Laser thru-beam sensor, M18 threaded housing design, metal housing, front optical face, 10 m detection range, red light, light on, DC version, PNP output, test input, M12 plug System components EmitterE18-LAS/92 ReceiverEV18-LAS/32/92 General specifications Effective detection range0 ... 10 m Threshold detection range18 m Light sourcelaser diode Light typemodulated visible red light Laser nominal ratings NoteLASER LIGHT , DO NOT STARE INTO BEAM Laser class1 Wave length650 nm Beam divergence1 mrad Pulse length15 µs Repetition rate10 kHz max. pulse energy< 10.2 nJ Target size1.2 mm Light receiverphoto diode Diameter of the light spotapprox. 2 mm at detection range 1.5 m Opening angleReceiver +/-2° Optical facefrontal Ambient light limit Continuous light5000 Lux Hysteresis25 % Functional safety related parameters MTTFd208.3 a Mission Time (TM)7 a Diagnostic Coverage (DC)60 % Indicators/operating means Function indicatorLED yellow, lights up when light beam is free, flashes when falling short of the stability control Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply currentemitter ≤ 25 mA , receiver ≤ 60 mA Input Test inputEmitter deactivationemitter on: 0 ... +3Vemitter off: +5V ... +UB Output Pre-fault indication outputPNP, open collector , short-circuit protected inactive: signal strength > approx. 30 % of the strength with clean opticactive: signal strength < approx. 30 % of the strength with clean optic Switching typelight-on Signal output1 PNP, short-circuit protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Laser safetyIEC 60825-1:2007 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068, half-sine, 30 g in X, Y and Z direction Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature0 ... 50 °C (32 ... 122 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Degree of protectionIP65 Connection4-pin, M12 x 1 connector Material Housingbrass, nickel-plated Optical faceglass Connectormetal Massper 45 g Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
