GA18/GK18/25/161/166 PEPPERL+FUCHS - Part number: 237005
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

GA18/GK18/25/161/166 PEPPERL+FUCHS - Part number: 237005

PEPPERL+FUCHS

confronta
GA18/GK18/25/161/166 PEPPERL+FUCHS - Part number: 237005

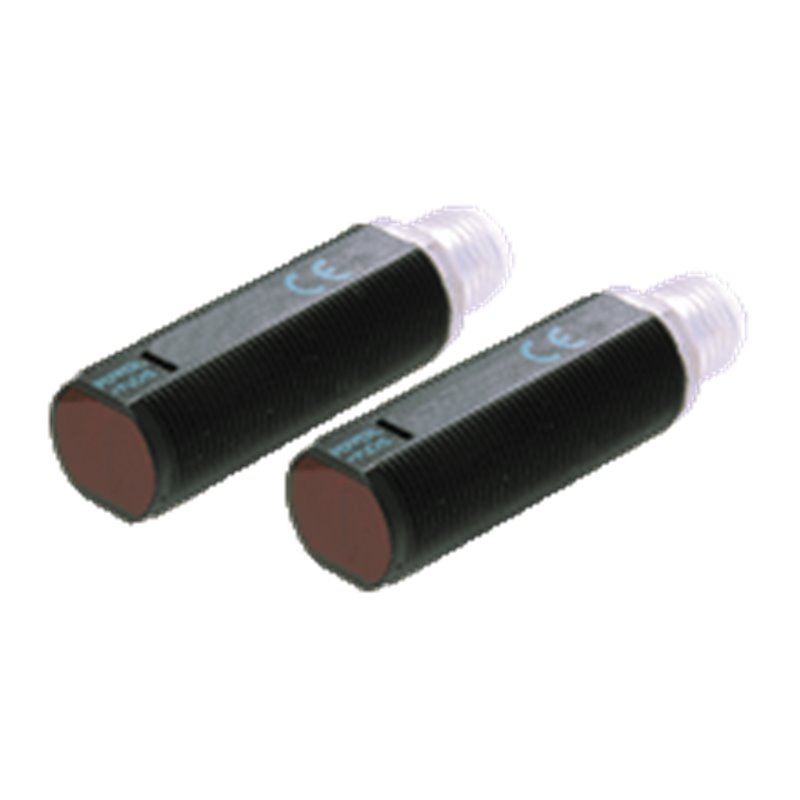

Thru-beam sensor GA18/GK18/25/161/166 GA18/GK18/25/161/166 Efficient Line in a short M18 plastic housing for standard applications Very high detection range 4 LEDs indicator for 360° visibility Version with front optical face Universal usage at different power supplies Thru-beam sensor GA18/GK18/25/161/166 GA18/GK18/25/161/166 Efficient Line in a short M18 plastic housing for standard applications Very high detection range 4 LEDs indicator for 360° visibility Version with front optical face Universal usage at different power supplies

MPNs 237005, PEP237005, GA18/GK18/25/161/166
Codice HS 85365000
Peso 0.01 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  GA18/GK18/25/161/166 Product Description Thru-beam sensor, M18 threaded housing design, plastic housing, front optical face, 20 m detection range, red light, light on, AC/DC version, NPN-FET output, micro plug System components EmitterGA18/166 ReceiverGK18/25/161/166 General specifications Effective detection range0 ... 20 m Threshold detection range25 m Light sourceLED Light typemodulated visible red light , 640 nm Diameter of the light spot1000 mm at 25 m Opening angle3 ° Optical facefrontal Ambient light limit30000 Lux Accessories providedMounting aids Indicators/operating means Operation indicatorLED green, statically lit Power on Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage20 ... 250 V AC/DC No-load supply current< 2.5 mA per device Output Switching typelight-on Signal outputN-channel MOSFET, short circuit protected Switching voltagemax. 250 V AC/DC Switching currentmax. 200 mA Voltage drop≤ 3.5 V AC/DC Switching frequency50 Hz Response time≤ 10 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Type 1 enclosure CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 ConnectionMicro AC connector, 1/2" V124 ; 4-pin Material HousingABS / PBT Optical facePMMA Mass10 g per device Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  GA18/GK18/25/161/166 Product Description Thru-beam sensor, M18 threaded housing design, plastic housing, front optical face, 20 m detection range, red light, light on, AC/DC version, NPN-FET output, micro plug System components EmitterGA18/166 ReceiverGK18/25/161/166 General specifications Effective detection range0 ... 20 m Threshold detection range25 m Light sourceLED Light typemodulated visible red light , 640 nm Diameter of the light spot1000 mm at 25 m Opening angle3 ° Optical facefrontal Ambient light limit30000 Lux Accessories providedMounting aids Indicators/operating means Operation indicatorLED green, statically lit Power on Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage20 ... 250 V AC/DC No-load supply current< 2.5 mA per device Output Switching typelight-on Signal outputN-channel MOSFET, short circuit protected Switching voltagemax. 250 V AC/DC Switching currentmax. 200 mA Voltage drop≤ 3.5 V AC/DC Switching frequency50 Hz Response time≤ 10 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus Listed, Type 1 enclosure CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 ConnectionMicro AC connector, 1/2" V124 ; 4-pin Material HousingABS / PBT Optical facePMMA Mass10 g per device Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
