LA29/LK29-Z-F2/31/116-SET PEPPERL+FUCHS - Part number: 244082
NFS
Non disponibile - Backorder
Da ordinare dal produttore
435,18 USD

Tasse di importazione escluse

Devi essere autenticato

LA29/LK29-Z-F2/31/116-SET PEPPERL+FUCHS - Part number: 244082

PEPPERL+FUCHS

confronta
LA29/LK29-Z-F2/31/116-SET PEPPERL+FUCHS - Part number: 244082

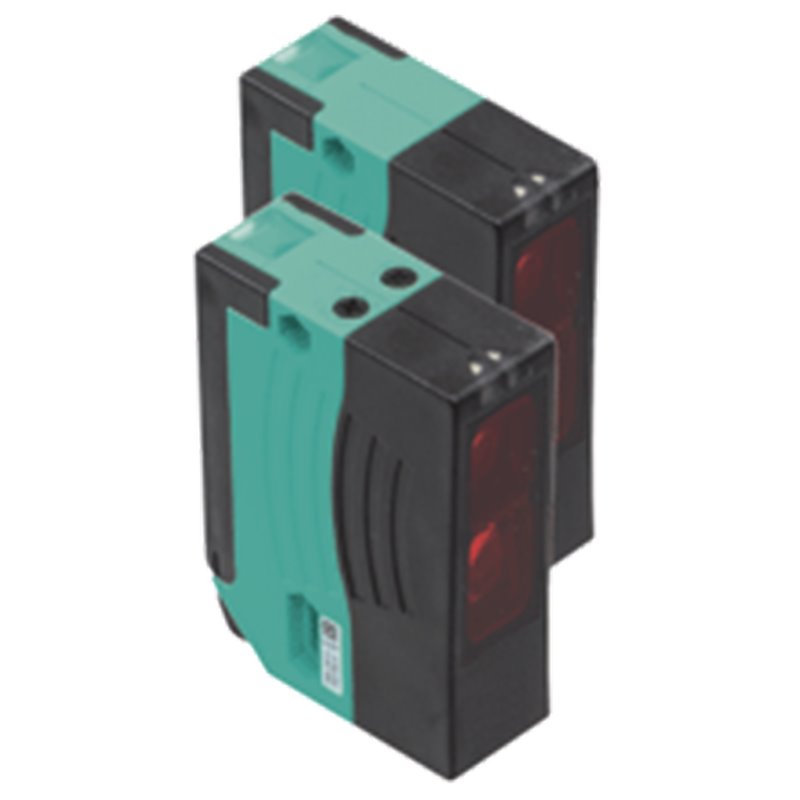

Thru-beam sensor LA29/LK29-Z-F2/31/116-SET LA29/LK29-Z-F2/31/116-SET Robust, compact photoelectric sensor for single-beam gate protection Very high detection range No measurable emitted interference on all frequencies Not sensitive to ambient light, even with energy saving lamps Adjustable timer functions Version with accessories in scope of delivery Thru-beam sensor LA29/LK29-Z-F2/31/116-SET LA29/LK29-Z-F2/31/116-SET Robust, compact photoelectric sensor for single-beam gate protection Very high detection range No measurable emitted interference on all frequencies Not sensitive to ambient light, even with energy saving lamps Adjustable timer functions Version with accessories in scope of delivery

MPNs 244082, PEP244082, LA29/LK29-Z-F2/31/116-SET
Codice HS 85365000
Peso 0.2 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
435,18 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  LA29/LK29-Z-F2/31/116-SET Product Description Thru-beam sensor System components EmitterLA29-F2/116 ReceiverLK29-Z-F2/31/116 General specifications Effective detection range0 ... 65 m Threshold detection range90 m Light sourceLED Light typemodulated visible red light , 660 nm Alignment aidLED red (in receiver lens)illuminated constantly: beam is interrupted,flashes: reaching switching point,off: sufficient stability control Transmitter frequencyF2 = 30 kHz Diameter of the light spot1.3 m at 65 m Opening angleEmitter 1.2°,Receiver 5° Ambient light limit50000 Lux Functional safety related parameters MTTFd490 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Control elementssensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on, switchable . (selectable, light/dark switching is only activated if the receiver has 'dark on' selected.) Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment range 0.1 ...10 s Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 230 V AC Caution!The protection class 2 is only valid when the terminal compartment is closed. CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2 , Insulation stripping 7.5 ... 8.5 mm , M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass200 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  LA29/LK29-Z-F2/31/116-SET Product Description Thru-beam sensor System components EmitterLA29-F2/116 ReceiverLK29-Z-F2/31/116 General specifications Effective detection range0 ... 65 m Threshold detection range90 m Light sourceLED Light typemodulated visible red light , 660 nm Alignment aidLED red (in receiver lens)illuminated constantly: beam is interrupted,flashes: reaching switching point,off: sufficient stability control Transmitter frequencyF2 = 30 kHz Diameter of the light spot1.3 m at 65 m Opening angleEmitter 1.2°,Receiver 5° Ambient light limit50000 Lux Functional safety related parameters MTTFd490 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Control elementssensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on, switchable . (selectable, light/dark switching is only activated if the receiver has 'dark on' selected.) Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment range 0.1 ...10 s Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 230 V AC Caution!The protection class 2 is only valid when the terminal compartment is closed. CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2 , Insulation stripping 7.5 ... 8.5 mm , M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass200 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
