LA61/115 PEPPERL+FUCHS - Part number: 911621
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

LA61/115 PEPPERL+FUCHS - Part number: 911621

PEPPERL+FUCHS

confronta
LA61/115 PEPPERL+FUCHS - Part number: 911621

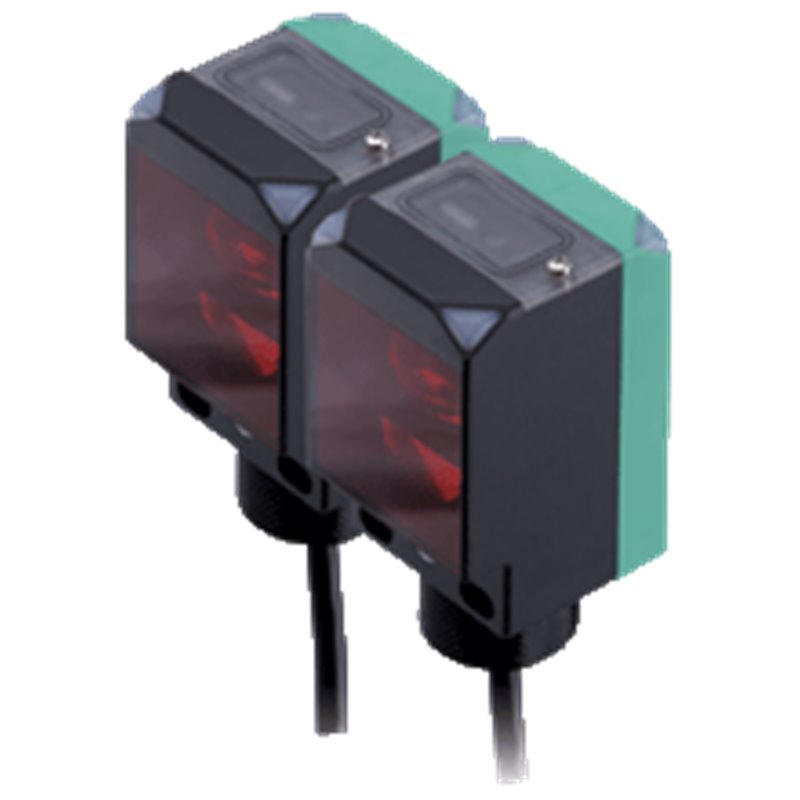

Thru-beam sensor LA61/LK61-Z/31/115 LA61/LK61-Z/31/115 Cost-optimized series for standard tasks in a special design Compact design Wide range of mounting options thanks to cubic housing design with M30 thread 360° high visibility LEDs Programmable ON-delay, OFF-delay, and One-shot timers Version for universal voltages Relay output Thru-beam sensor LA61/LK61-Z/31/115 LA61/LK61-Z/31/115 Cost-optimized series for standard tasks in a special design Compact design Wide range of mounting options thanks to cubic housing design with M30 thread 360° high visibility LEDs Programmable ON-delay, OFF-delay, and One-shot timers Version for universal voltages Relay output

MPNs 911621, PEP911621, LA61/115
Codice HS 85365000
Peso 0.24 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  LA61/LK61-Z/31/115 Product Description Thru-beam sensor System components EmitterLA61/115 ReceiverLK61-Z/31/115 General specifications Effective detection range0 ... 60 m Threshold detection range85 m Light sourceIRED Light typemodulated infrared light , 850 nm Diameter of the light spot1600 mm at a distance of 60 m Opening angleEmitter: 1.5 ° , Receiver: 1.5 ° Optical facefrontal Ambient light limit5000 Lux ; according EN 60947-5-2 Indicators/operating means Operation indicator2 LEDs green Function indicator2 LEDs yellow Receiver: receiver LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Control elementsLight-on/dark-on changeover switch Control elementsSensing range adjuster Control elementsTime adjuster ( 0 ... 10 s ) Electrical specifications Operating voltage24 ... 240 V AC 12 ... 240 V DC No-load supply current≤ 35 mA Protection classII , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC Power consumption≤ 2 VA per device Output Switching typelight/dark on, switchable Signal output1 SPDT relay Switching voltagemax. 250 V AC/DC Switching currentmax. 3 A Switching powerDC: max. 150 W AC: max. 750 VA Switching frequency20 Hz Response time≤ 25 ms Timer functionDIP-switch for selection of operating modes Compliance with standards and directives Directive conformity EMC Directive 2004/108/ECEN 60947-5-2:2007+A1:2012 Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 StandardsEN 50178, UL 508 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 UL approvalcULus Listed, Type 1 enclosure For overcurrent protection, install a fuse with a rated current of max. 5 A and min. 240 V AC/DC CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-40 ... 55 °C (-40 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width45 mm Housing height73.7 mm Housing depth48.6 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC (glass-fiber-reinforced Makrolon) Optical facePMMA Mass240 g per device Tightening torque, fastening screws< 2 Nm Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  LA61/LK61-Z/31/115 Product Description Thru-beam sensor System components EmitterLA61/115 ReceiverLK61-Z/31/115 General specifications Effective detection range0 ... 60 m Threshold detection range85 m Light sourceIRED Light typemodulated infrared light , 850 nm Diameter of the light spot1600 mm at a distance of 60 m Opening angleEmitter: 1.5 ° , Receiver: 1.5 ° Optical facefrontal Ambient light limit5000 Lux ; according EN 60947-5-2 Indicators/operating means Operation indicator2 LEDs green Function indicator2 LEDs yellow Receiver: receiver LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Control elementsLight-on/dark-on changeover switch Control elementsSensing range adjuster Control elementsTime adjuster ( 0 ... 10 s ) Electrical specifications Operating voltage24 ... 240 V AC 12 ... 240 V DC No-load supply current≤ 35 mA Protection classII , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC Power consumption≤ 2 VA per device Output Switching typelight/dark on, switchable Signal output1 SPDT relay Switching voltagemax. 250 V AC/DC Switching currentmax. 3 A Switching powerDC: max. 150 W AC: max. 750 VA Switching frequency20 Hz Response time≤ 25 ms Timer functionDIP-switch for selection of operating modes Compliance with standards and directives Directive conformity EMC Directive 2004/108/ECEN 60947-5-2:2007+A1:2012 Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 StandardsEN 50178, UL 508 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 UL approvalcULus Listed, Type 1 enclosure For overcurrent protection, install a fuse with a rated current of max. 5 A and min. 240 V AC/DC CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-40 ... 55 °C (-40 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width45 mm Housing height73.7 mm Housing depth48.6 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC (glass-fiber-reinforced Makrolon) Optical facePMMA Mass240 g per device Tightening torque, fastening screws< 2 Nm Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
