LK28-FC-Z/31/116 PEPPERL+FUCHS - Part number: 202519
NFS
Non disponibile - Backorder
Da ordinare dal produttore
939,53 USD

Tasse di importazione escluse

Devi essere autenticato

LK28-FC-Z/31/116 PEPPERL+FUCHS - Part number: 202519

PEPPERL+FUCHS

confronta
LK28-FC-Z/31/116 PEPPERL+FUCHS - Part number: 202519

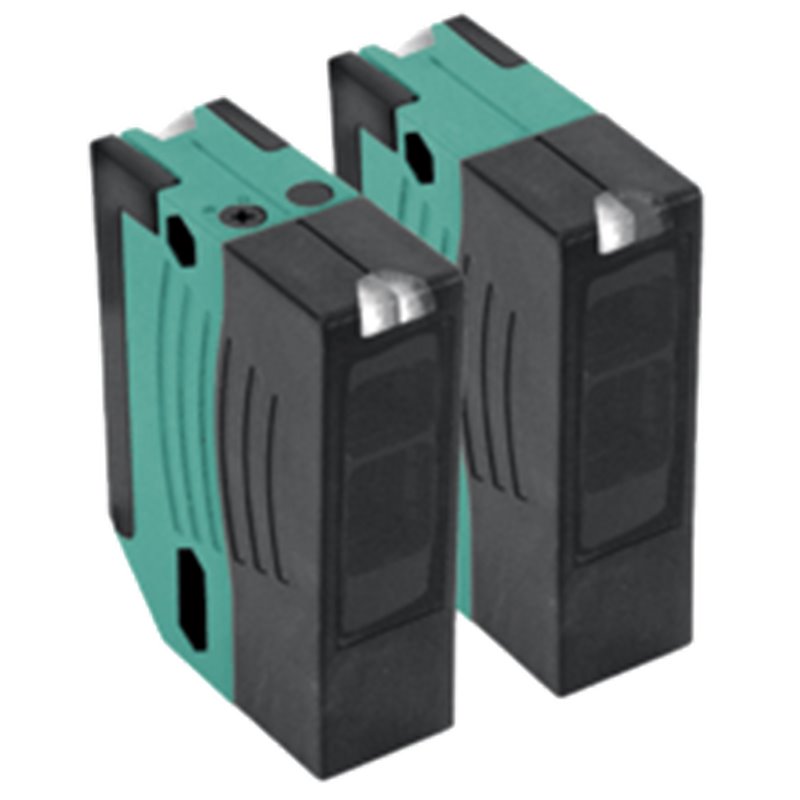

Fire protection thru-beam sensor LA28/LK28-FC-Z/31/116 LA28/LK28-FC-Z/31/116 Compact fire protection photoelectric sensor for safety devices on fire barriers Approval in accordance with VdS Test Report FSA and externally monitored manufacture (Ü Symbol) Not sensitive to ambient light, even with switched energy saving lamps Fire protection thru-beam sensor LA28/LK28-FC-Z/31/116 LA28/LK28-FC-Z/31/116 Compact fire protection photoelectric sensor for safety devices on fire barriers Approval in accordance with VdS Test Report FSA and externally monitored manufacture (Ü Symbol) Not sensitive to ambient light, even with switched energy saving lamps

MPNs 202519, PEP202519, LK28-FC-Z/31/116
Codice HS 85365000
Peso 0.2 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
939,53 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  LA28/LK28-FC-Z/31/116 Product Description Compact fire protection photoelectric sensor General specifications Effective detection range0 ... 10 m Threshold detection range10 m Light sourceLED, 660 nm and IRED, 880 nm Light typemodulated visible red light and modulated infrared light Alignment aidLED red (in receiver lens)illuminated constantly: beam is interrupted,flashes: reaching switching point,off: sufficient stability control Diameter of the light spotapprox. 0.2 m at 10 m Opening angleEmitter 1.2°,Receiver 5° Ambient light limit50000 Lux Functional safety related parameters MTTFd490 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Control elementsLight-on/dark-on changeover switch ; Time adjuster Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on, switchable . (selectable, light/dark switching is only activated if the receiver has 'dark on' selected.) Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment range 0.1 ...10 s Standard conformity StandardsEN 60947-5-2 smoke insensitive up to 2 dB/m ( EN 54-12 ) Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit insulated from control circuit in accordance with IEC 61140.Caution!The protection class 2 is only valid when the terminal compartment is closed. CCC approvalCertified by China Compulsory Certification (CCC) ApprovalsVdS/DIBt certificate of compliance No. 25021 , approval number Z-6.510-2383 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Relative humidity30% ... 85%   non-condensing ; Non-icing Mechanical specifications Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2 , Insulation stripping 7.5 ... 8.5 mm , M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass200 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  LA28/LK28-FC-Z/31/116 Product Description Compact fire protection photoelectric sensor General specifications Effective detection range0 ... 10 m Threshold detection range10 m Light sourceLED, 660 nm and IRED, 880 nm Light typemodulated visible red light and modulated infrared light Alignment aidLED red (in receiver lens)illuminated constantly: beam is interrupted,flashes: reaching switching point,off: sufficient stability control Diameter of the light spotapprox. 0.2 m at 10 m Opening angleEmitter 1.2°,Receiver 5° Ambient light limit50000 Lux Functional safety related parameters MTTFd490 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Control elementsLight-on/dark-on changeover switch ; Time adjuster Electrical specifications Operating voltage12 ... 240 V AC/DC Power consumption≤ 3.5 VA Output Switching typelight/dark on, switchable . (selectable, light/dark switching is only activated if the receiver has 'dark on' selected.) Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 2 A Switching powerDC: max. 50 W AC: max. 500 VA Switching frequency25 Hz Response time20 ms Timer functionON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-OFF delay (GAN-GAB), programmableadjustment range 0.1 ...10 s Standard conformity StandardsEN 60947-5-2 smoke insensitive up to 2 dB/m ( EN 54-12 ) Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit insulated from control circuit in accordance with IEC 61140.Caution!The protection class 2 is only valid when the terminal compartment is closed. CCC approvalCertified by China Compulsory Certification (CCC) ApprovalsVdS/DIBt certificate of compliance No. 25021 , approval number Z-6.510-2383 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Relative humidity30% ... 85%   non-condensing ; Non-icing Mechanical specifications Degree of protectionIP67 Connectionterminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2 , Insulation stripping 7.5 ... 8.5 mm , M16 x 1.5 cable gland Material HousingPlastic ABS Optical facePlastic pane Mass200 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
