LK31/31/115 PEPPERL+FUCHS - Part number: 186504
NFS
Non disponibile - Backorder
Da ordinare dal produttore
102,34 USD

Tasse di importazione escluse

Devi essere autenticato

LK31/31/115 PEPPERL+FUCHS - Part number: 186504

PEPPERL+FUCHS

confronta
LK31/31/115 PEPPERL+FUCHS - Part number: 186504

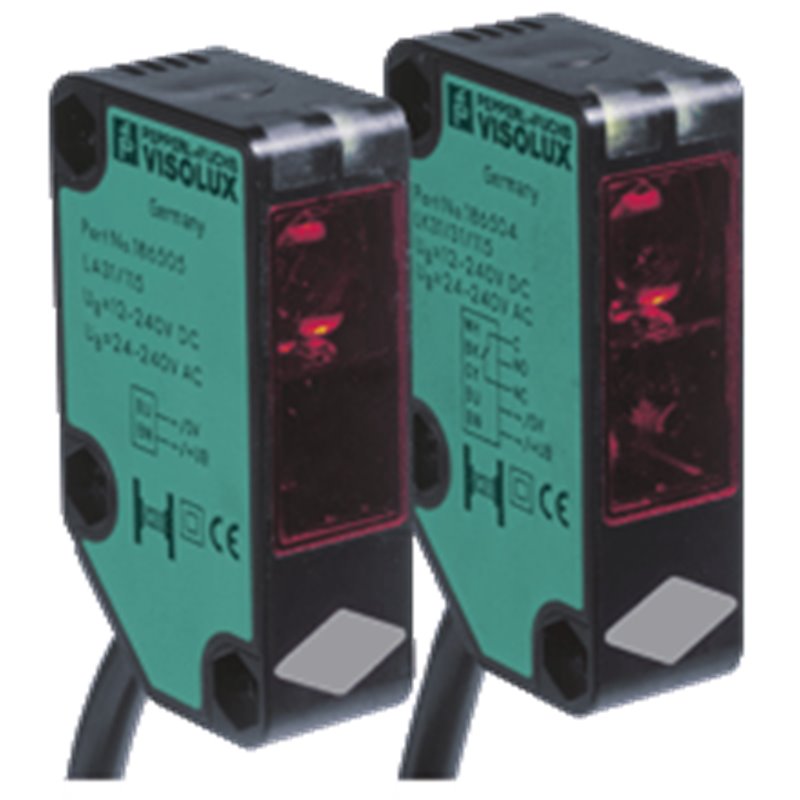

Thru-beam sensor LA31/LK31/31/115 LA31/LK31/31/115 Cost-optimized series for standard tasks Large construction with small housing Highly visible LED Version for universal voltages Relay output Wide range of mounting options Thru-beam sensor LA31/LK31/31/115 LA31/LK31/31/115 Cost-optimized series for standard tasks Large construction with small housing Highly visible LED Version for universal voltages Relay output Wide range of mounting options

MPNs 186504, PEP186504, LK31/31/115
Codice HS 85365000
Peso 0.12 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
102,34 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Verso Stati Uniti a partire da 27,36 USD da DHL Express Worldwide
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  LA31/LK31/31/115 Product Description Thru-beam sensor, 30 m detection range, red light, dark on, AC/DC version, relais output, fixed cable System components EmitterLA31/115 ReceiverLK31/31/115 General specifications Effective detection range0 ... 30 m Threshold detection range43 m Light sourceLED Light typemodulated visible red light , 630 nm Alignment aidLED yellow:1. LED illuminates: Sufficient light signal received, emitter and receiver alignment is correct 2. LED flashes: Reaching switching point 3. LED off: Light beam is interrupted or the alignment is out Diameter of the light spotapprox. 800 mm at a distance of 30 m Opening angleEmitter: 0.5 ° , Receiver: 1.5 ° Ambient light limit50000 Lux ; according EN 60947-5-2 Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Electrical specifications Operating voltage24 ... 240 V AC 12 ... 240 V DC No-load supply currentEmitter: ≤ 20 mA Receiver: ≤ 20 mA Power consumptionEmitter: ≤ 1 VA Receiver: ≤ 1 VA Output Switching typedark on Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 3 A Switching powerDC: max. 150 W AC: max. 750 VA Switching frequency≤ 20 Hz Response time≤ 25 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsEN 62103 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width18 mm Housing height62 mm Housing depth35 mm Degree of protectionIP67 ConnectionEmitter: 2 m fixed cable , 2-wire Receiver: 2 m fixed cable , 5-wire Material HousingPolycarbonate Optical facePMMA MassEmitter: 116 g Receiver: 131 g Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  LA31/LK31/31/115 Product Description Thru-beam sensor, 30 m detection range, red light, dark on, AC/DC version, relais output, fixed cable System components EmitterLA31/115 ReceiverLK31/31/115 General specifications Effective detection range0 ... 30 m Threshold detection range43 m Light sourceLED Light typemodulated visible red light , 630 nm Alignment aidLED yellow:1. LED illuminates: Sufficient light signal received, emitter and receiver alignment is correct 2. LED flashes: Reaching switching point 3. LED off: Light beam is interrupted or the alignment is out Diameter of the light spotapprox. 800 mm at a distance of 30 m Opening angleEmitter: 0.5 ° , Receiver: 1.5 ° Ambient light limit50000 Lux ; according EN 60947-5-2 Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Electrical specifications Operating voltage24 ... 240 V AC 12 ... 240 V DC No-load supply currentEmitter: ≤ 20 mA Receiver: ≤ 20 mA Power consumptionEmitter: ≤ 1 VA Receiver: ≤ 1 VA Output Switching typedark on Signal outputRelay, 1 alternator Switching voltagemax. 250 V AC/DC Switching currentmax. 3 A Switching powerDC: max. 150 W AC: max. 750 VA Switching frequency≤ 20 Hz Response time≤ 25 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsEN 62103 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 004/2011 Protection classII , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width18 mm Housing height62 mm Housing depth35 mm Degree of protectionIP67 ConnectionEmitter: 2 m fixed cable , 2-wire Receiver: 2 m fixed cable , 5-wire Material HousingPolycarbonate Optical facePMMA MassEmitter: 116 g Receiver: 131 g Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
