LV28-F2-3057/35/47/115b PEPPERL+FUCHS - Part number: 207266

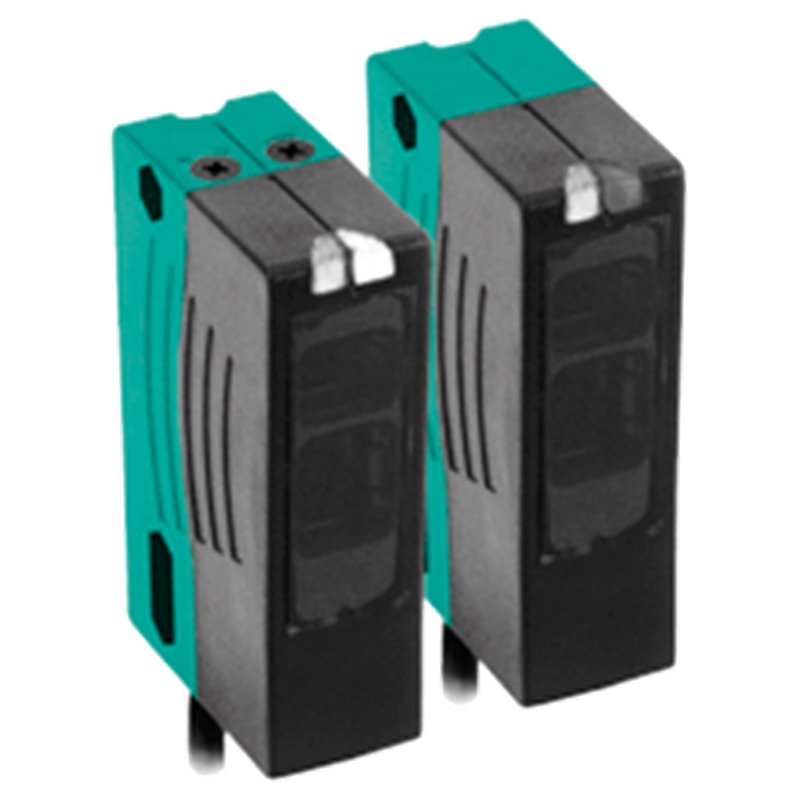

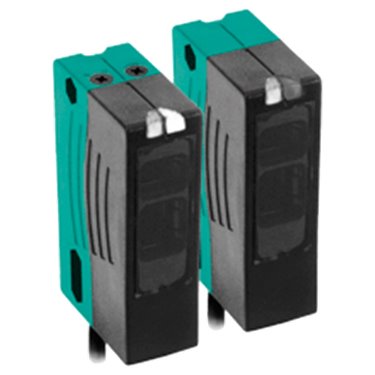

Datasheet excerpt: Technical data of  LD28/LV28-F2-3057/35/47/115b Product Description Universal thru-beam sensor, large housing design, 65 m detection range, red light, 30 kHz transmission frequency, light/dark on, DC version, 2 PNP outputs, test input, fixed cable with M12 plug System components EmitterLD28-F2-3057/35/76a/115b ReceiverLV28-F2-3057/35/47/115b General specifications Effective detection range0 ... 65 m Threshold detection range90 m Light sourceLED Light typemodulated visible red light , 660 nm Alignment aidLED red (in receiver lens)illuminated constantly: beam is interrupted,flashes: reaching switching point,off: sufficient stability control Transmitter frequencyF2 = 30 kHz Diameter of the light spotapprox. 1.3 m at 65 m Opening angleEmitter 1.2°,Receiver 5° Ambient light limit50000 Lux Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)90 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply currentEmitter: ≤ 50 mA Receiver: ≤ 35 mA Input Test inputemitter deactivation at +UB (Imax. < 3 mA at 30 V DC) Output Switching typelight/dark on , preset to light-on Signal output2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors Switching voltagemax. 30 V DC Switching currentmax. 200 mA Switching frequency25 Hz Response time20 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth54.3 mm Degree of protectionIP67 Connectionfixed cable 230 mm with M12 x 1 male connector, 4-pin Material HousingPlastic ABS Optical facePlastic pane Mass500 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  LD28/LV28-F2-3057/35/47/115b Product Description Universal thru-beam sensor, large housing design, 65 m detection range, red light, 30 kHz transmission frequency, light/dark on, DC version, 2 PNP outputs, test input, fixed cable with M12 plug System components EmitterLD28-F2-3057/35/76a/115b ReceiverLV28-F2-3057/35/47/115b General specifications Effective detection range0 ... 65 m Threshold detection range90 m Light sourceLED Light typemodulated visible red light , 660 nm Alignment aidLED red (in receiver lens)illuminated constantly: beam is interrupted,flashes: reaching switching point,off: sufficient stability control Transmitter frequencyF2 = 30 kHz Diameter of the light spotapprox. 1.3 m at 65 m Opening angleEmitter 1.2°,Receiver 5° Ambient light limit50000 Lux Functional safety related parameters MTTFd620 a Mission Time (TM)20 a Diagnostic Coverage (DC)90 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicatorLED yellow:1. LED lit constantly: signal > 2 x switching point (function reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripple10 % No-load supply currentEmitter: ≤ 50 mA Receiver: ≤ 35 mA Input Test inputemitter deactivation at +UB (Imax. < 3 mA at 30 V DC) Output Switching typelight/dark on , preset to light-on Signal output2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors Switching voltagemax. 30 V DC Switching currentmax. 200 mA Switching frequency25 Hz Response time20 ms Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width25.8 mm Housing height88 mm Housing depth54.3 mm Degree of protectionIP67 Connectionfixed cable 230 mm with M12 x 1 male connector, 4-pin Material HousingPlastic ABS Optical facePlastic pane Mass500 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
