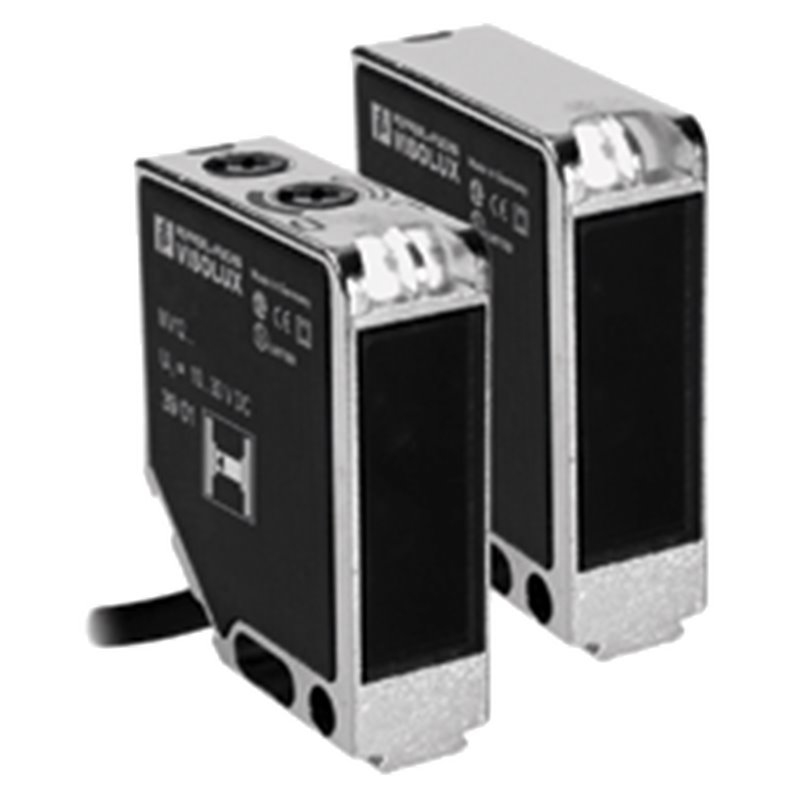

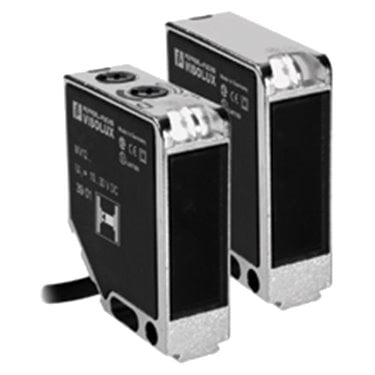

M12-F1/76b/115 PEPPERL+FUCHS - Part number: 115967

Datasheet excerpt: Technical data of  M12/MV12-F1/76b/82b/115/128 Product Description Robust thru-beam sensor for standard applications, small design, 25 m detection range, red light, emission frequency F1, light/dark on, push-pull output, weak signal output, test input, external Teach-In, fixed cable System components EmitterM12-F1/76b/115 ReceiverMV12-F1/82b/115/128 General specifications Effective detection range0 ... 16 m Threshold detection range25 m Light source2 LED Light typemodulated visible red light , 660 nm Target sizemin. 12 mm Alignment aidLED red in receiver Diameter of the light spotapprox. 420 mm at a distance of 16 m Opening angle1.5 ° Ambient light limit Continuous light40000 Lux Modulated light5000 Lux Functional safety related parameters MTTFd570 a Mission Time (TM)20 a Diagnostic Coverage (DC)90 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicator2 LEDs yellow for switching state, stability control, TEACH-IN and contrast detection mode Control elementsrotary switch for light/dark, 5-step switch for contrast recognition adjustment Contrast detection levels15 % - clear glass bottles 25 % - plastic foils 40 % - colored glass or opaque materials adjustable by Teach-In key or external wire Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentEmitter: ≤ 35 mA Receiver: ≤ 45 mA Input Test inputemitter deactivation at 0 V Function inputExt. Teach-In input (ET) Output Pre-fault indication output1 PNP, inactive when level falls below function reserve after approx. 5 s.Immediately inactive if the beam is interrupted 4 times during the flashtime. Switching typelight/dark on, switchable Signal output1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 0.2 A Voltage drop≤ 2.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 300 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width41.5 mm Housing height49 mm Housing depth15 mm Degree of protectionIP67 Connection2500 mm fixed cable , PUR Material HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC Optical facePlastic pane Mass120 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  M12/MV12-F1/76b/82b/115/128 Product Description Robust thru-beam sensor for standard applications, small design, 25 m detection range, red light, emission frequency F1, light/dark on, push-pull output, weak signal output, test input, external Teach-In, fixed cable System components EmitterM12-F1/76b/115 ReceiverMV12-F1/82b/115/128 General specifications Effective detection range0 ... 16 m Threshold detection range25 m Light source2 LED Light typemodulated visible red light , 660 nm Target sizemin. 12 mm Alignment aidLED red in receiver Diameter of the light spotapprox. 420 mm at a distance of 16 m Opening angle1.5 ° Ambient light limit Continuous light40000 Lux Modulated light5000 Lux Functional safety related parameters MTTFd570 a Mission Time (TM)20 a Diagnostic Coverage (DC)90 % Indicators/operating means Operation indicatorLED green, flashes in case of short-circuit Function indicator2 LEDs yellow for switching state, stability control, TEACH-IN and contrast detection mode Control elementsrotary switch for light/dark, 5-step switch for contrast recognition adjustment Contrast detection levels15 % - clear glass bottles 25 % - plastic foils 40 % - colored glass or opaque materials adjustable by Teach-In key or external wire Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentEmitter: ≤ 35 mA Receiver: ≤ 45 mA Input Test inputemitter deactivation at 0 V Function inputExt. Teach-In input (ET) Output Pre-fault indication output1 PNP, inactive when level falls below function reserve after approx. 5 s.Immediately inactive if the beam is interrupted 4 times during the flashtime. Switching typelight/dark on, switchable Signal output1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 0.2 A Voltage drop≤ 2.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directions Vibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions Approvals and certificates EAC conformityTR CU 020/2011 Protection classII, rated voltage ≤ 300 V AC with pollution degree 1-2 according to IEC 60664-1 UL approvalcULus CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width41.5 mm Housing height49 mm Housing depth15 mm Degree of protectionIP67 Connection2500 mm fixed cable , PUR Material HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC Optical facePlastic pane Mass120 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
