M41/70/76a PEPPERL+FUCHS - Part number: 244366
NFS
Non disponibile - Backorder
Da ordinare dal produttore
157,10 USD

Tasse di importazione escluse

Devi essere autenticato

M41/70/76a PEPPERL+FUCHS - Part number: 244366

PEPPERL+FUCHS

confronta
M41/70/76a PEPPERL+FUCHS - Part number: 244366

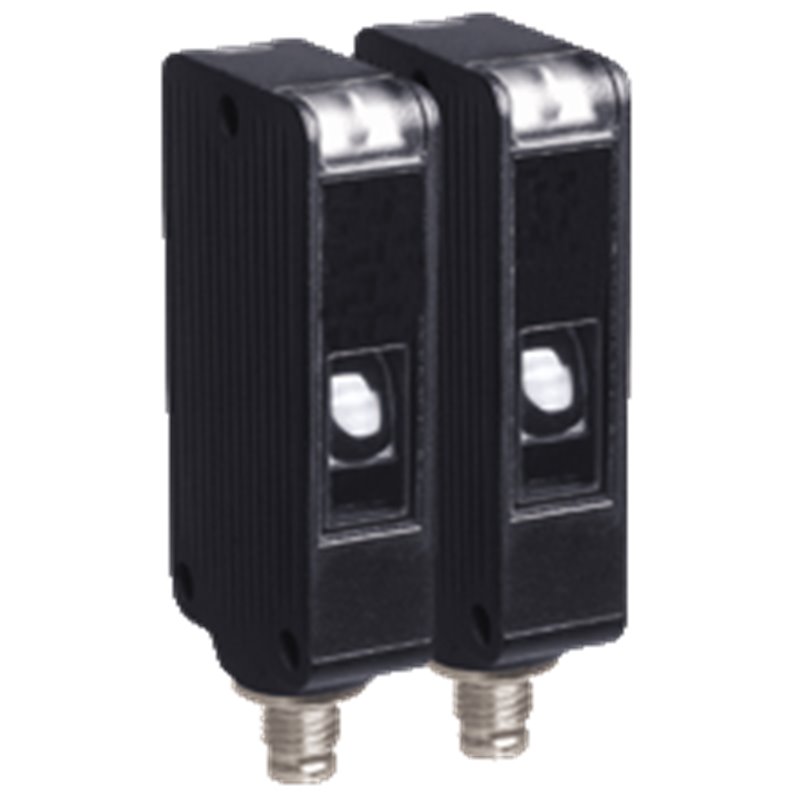

Thru-beam sensor M41/MV41/25/70/76a/136 M41/MV41/25/70/76a/136 Rugged series in corrosion-resistant metal housing Long sensor range with high power mode Resistant against noise: reliable operation under all conditions Clear and functional display concept for the operating modes Aluminum housing with high quality Delta-Seal coated Scratch-resistant and solvent resistant glass lens Thru-beam sensor M41/MV41/25/70/76a/136 M41/MV41/25/70/76a/136 Rugged series in corrosion-resistant metal housing Long sensor range with high power mode Resistant against noise: reliable operation under all conditions Clear and functional display concept for the operating modes Aluminum housing with high quality Delta-Seal coated Scratch-resistant and solvent resistant glass lens

MPNs 244366, PEP244366, M41/70/76a
Codice HS 85365000
Peso 0.05 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
157,10 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  M41/MV41/25/70/76a/136 Product Description Robust thru-beam sensor, compact housing design, 16 m detection range, emission frequency F1, red light and infrared light, light on, 2 push-pull outputs, test input, M9 plug System components EmitterM41/70/76a ReceiverMV41/25/70/136 General specifications Effective detection range0 ... 16 m Threshold detection rangenormal mode: 25 m High power mode: 35 m (Control input at UB+) Light sourcenormal mode: LED High power mode: LED+IRED Light typenormal mode: modulated visible red light High power mode: Red and infrared, modulated light Diameter of the light spotapprox. 500 mm at detection range 16 m Opening angleapprox. 1.5 ° Optical facefrontal Ambient light limit50000 Lux Functional safety related parameters MTTFd844 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Control elementssensitivity adjustment (receiver) Electrical specifications Operating voltage10 ... 30 V DC , class 2 Ripplemax. 10 % No-load supply currentmax. 30 mA Input Test inputemitter deactivation at +UB (emitter) Control inputHigh power mode activation with +UB (emitter) Output Switching typelight-on Signal output2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V DC Switching frequency1000 Hz Response time0.5 ms Compliance with standards and directives Directive conformity EMC Directive 2004/108/ECEN 60947-5-2:2007 Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 StandardsUL 508 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width31 mm Housing height56.5 mm Housing depth13.6 mm Degree of protectionIP67 Connectionwith M9, 5-pin metal connector Material HousingAluminum , Delta-Seal coated Optical faceglass pane Connectormetal Mass50 g (device) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  M41/MV41/25/70/76a/136 Product Description Robust thru-beam sensor, compact housing design, 16 m detection range, emission frequency F1, red light and infrared light, light on, 2 push-pull outputs, test input, M9 plug System components EmitterM41/70/76a ReceiverMV41/25/70/136 General specifications Effective detection range0 ... 16 m Threshold detection rangenormal mode: 25 m High power mode: 35 m (Control input at UB+) Light sourcenormal mode: LED High power mode: LED+IRED Light typenormal mode: modulated visible red light High power mode: Red and infrared, modulated light Diameter of the light spotapprox. 500 mm at detection range 16 m Opening angleapprox. 1.5 ° Optical facefrontal Ambient light limit50000 Lux Functional safety related parameters MTTFd844 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Control elementssensitivity adjustment (receiver) Electrical specifications Operating voltage10 ... 30 V DC , class 2 Ripplemax. 10 % No-load supply currentmax. 30 mA Input Test inputemitter deactivation at +UB (emitter) Control inputHigh power mode activation with +UB (emitter) Output Switching typelight-on Signal output2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2.5 V DC Switching frequency1000 Hz Response time0.5 ms Compliance with standards and directives Directive conformity EMC Directive 2004/108/ECEN 60947-5-2:2007 Standard conformity Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007 StandardsUL 508 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 75 °C (-40 ... 167 °F) Mechanical specifications Housing width31 mm Housing height56.5 mm Housing depth13.6 mm Degree of protectionIP67 Connectionwith M9, 5-pin metal connector Material HousingAluminum , Delta-Seal coated Optical faceglass pane Connectormetal Mass50 g (device) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
