ML300-P-12m-IR/76b/95/127 PEPPERL+FUCHS - Part number: 238246
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

ML300-P-12m-IR/76b/95/127 PEPPERL+FUCHS - Part number: 238246

PEPPERL+FUCHS

confronta
ML300-P-12m-IR/76b/95/127 PEPPERL+FUCHS - Part number: 238246

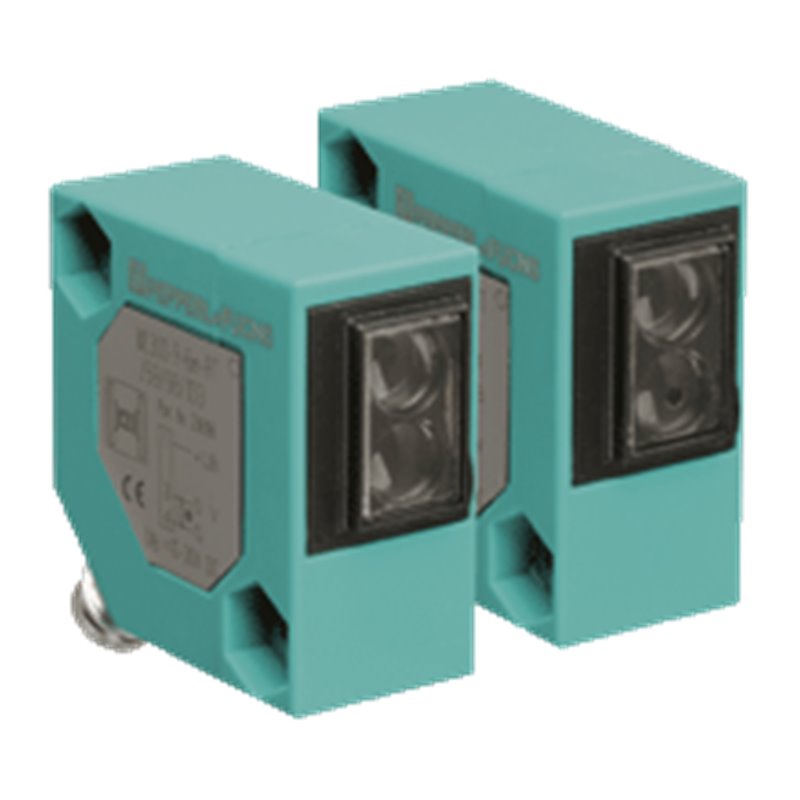

Thru-beam sensor ML300-P-12m-IR/76b/95/127 ML300-P-12m-IR/76b/95/127 Miniature design Easy to use Infrared light High operating range 45° connector Thru-beam sensor ML300-P-12m-IR/76b/95/127 ML300-P-12m-IR/76b/95/127 Miniature design Easy to use Infrared light High operating range 45° connector

MPNs 238246, PEP238246, ML300-P-12m-IR/76b/95/127
Codice HS 85365000
Peso 0.04 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  ML300-P-12m-IR/76b/95/127 Product Description Thru-beam sensor System components EmitterML300-T-12m-IR/76b/95 ReceiverML300-R-12m-IR/25/95/127 General specifications Effective detection range0 ... 12 m Threshold detection range14 m Light sourceIRED Light typemodulated infrared light 880 nm Diameter of the light spot4 m at 12 m Opening angle7 ° Ambient light limit Continuous light10000 Lux Modulated light5000 Lux Indicators/operating means Function indicatorLED yellow: lights up when output is active LED green: Sufficient stability control Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 20 % No-load supply currentEmitter: ≤ 15 mA Receiver: ≤ 10 mA Input Test inputemitter: 1 test input,not activated: < 4 V, activated: > 8 V or open Output Switching typelight on / dark on Signal output2 NPN outputs, complementary, short-circuit proof, reverse-polarity protection, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axes Vibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Mechanical specifications Housing width30 mm Housing height30 mm Housing depth15 mm Degree of protectionIP67 ConnectionM8 x 1 connector, 4-pin Material HousingPBT Optical faceglass pane Connectormetal Mass35 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  ML300-P-12m-IR/76b/95/127 Product Description Thru-beam sensor System components EmitterML300-T-12m-IR/76b/95 ReceiverML300-R-12m-IR/25/95/127 General specifications Effective detection range0 ... 12 m Threshold detection range14 m Light sourceIRED Light typemodulated infrared light 880 nm Diameter of the light spot4 m at 12 m Opening angle7 ° Ambient light limit Continuous light10000 Lux Modulated light5000 Lux Indicators/operating means Function indicatorLED yellow: lights up when output is active LED green: Sufficient stability control Control elementssensitivity adjustment Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 20 % No-load supply currentEmitter: ≤ 15 mA Receiver: ≤ 10 mA Input Test inputemitter: 1 test input,not activated: < 4 V, activated: > 8 V or open Output Switching typelight on / dark on Signal output2 NPN outputs, complementary, short-circuit proof, reverse-polarity protection, open collector Switching voltagemax. 30 V DC Switching currentmax. 0.1 A Voltage drop≤ 2 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity Shock and impact resistanceEN 60947-5-7 30 g, 11 ms, all axes Vibration resistanceEN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 55 °C (-13 ... 131 °F) Mechanical specifications Housing width30 mm Housing height30 mm Housing depth15 mm Degree of protectionIP67 ConnectionM8 x 1 connector, 4-pin Material HousingPBT Optical faceglass pane Connectormetal Mass35 g (emitter and receiver) Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
