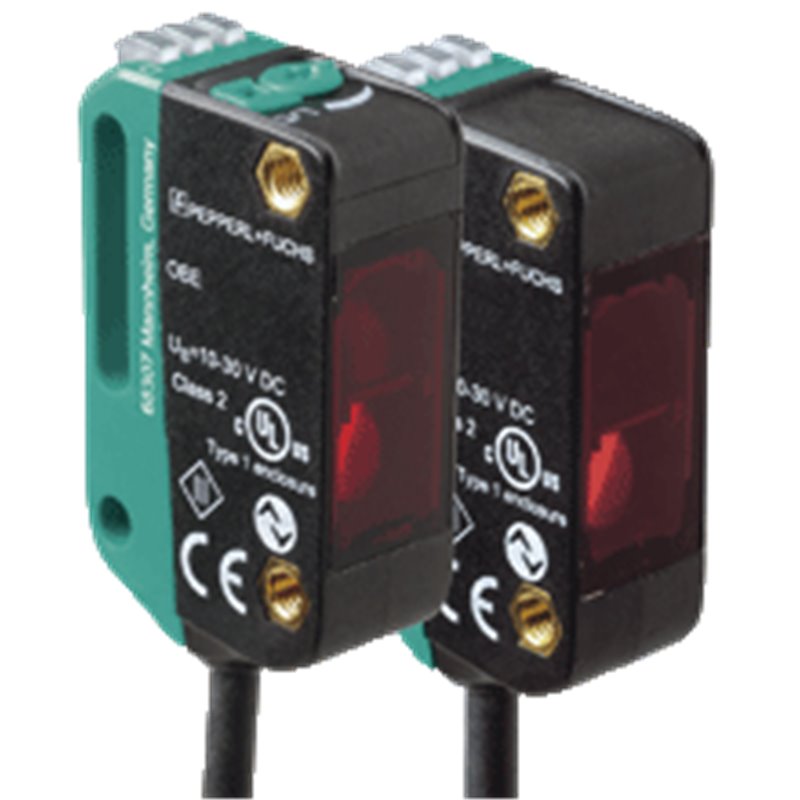

OBE12M-R100-S-IO PEPPERL+FUCHS - Part number: 267075-100107

Datasheet excerpt: Technical data of  OBE12M-R100-S2EP-IO Product Description Thru-beam sensor SET System components EmitterOBE12M-R100-S-IO ReceiverOBE12M-R100-2EP-IO General specifications Effective detection range0 ... 12 m Threshold detection range15 m Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Diameter of the light spotapprox. 65 mm at a distance of 1 m Opening angle3.7 ° Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd462 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsReceiver: light/dark switch Control elementsReceiver: sensitivity adjustment Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentEmitter: ≤ 14 mA Receiver: ≤ 13 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device IDEmitter: 0x110401 (1115137)Receiver: 0x110301 (1114881) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthEmitter:Process data output: 2 BitReceiver:Process data input: 2 BitProcess data output: 2 Bit SIO mode supportyes Compatible master port typeA Input Test inputemitter deactivation at +UB Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - WH: NPN normally closed / light-on, PNP normally open / dark-on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height37.1 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA MassEmitter: approx. 10 g receiver: approx. 10 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBE12M-R100-S2EP-IO Product Description Thru-beam sensor SET System components EmitterOBE12M-R100-S-IO ReceiverOBE12M-R100-2EP-IO General specifications Effective detection range0 ... 12 m Threshold detection range15 m Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Diameter of the light spotapprox. 65 mm at a distance of 1 m Opening angle3.7 ° Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd462 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorYellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Control elementsReceiver: light/dark switch Control elementsReceiver: sensitivity adjustment Parameterization indicatorIO link communication: green LED goes out briefly (1 Hz) Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply currentEmitter: ≤ 14 mA Receiver: ≤ 13 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device IDEmitter: 0x110401 (1115137)Receiver: 0x110301 (1114881) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthEmitter:Process data output: 2 BitReceiver:Process data input: 2 BitProcess data output: 2 Bit SIO mode supportyes Compatible master port typeA Input Test inputemitter deactivation at +UB Output Switching typeThe switching type of the sensor is adjustable. The default setting is: C/Q - BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - WH: NPN normally closed / light-on, PNP normally open / dark-on Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Switching frequency1000 Hz Response time0.5 ms Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 Ambient conditions Ambient temperature-40 ... 60 °C (-40 ... 140 °F) , fixed cable -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width11 mm Housing height37.1 mm Housing depth21.5 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA MassEmitter: approx. 10 g receiver: approx. 10 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
