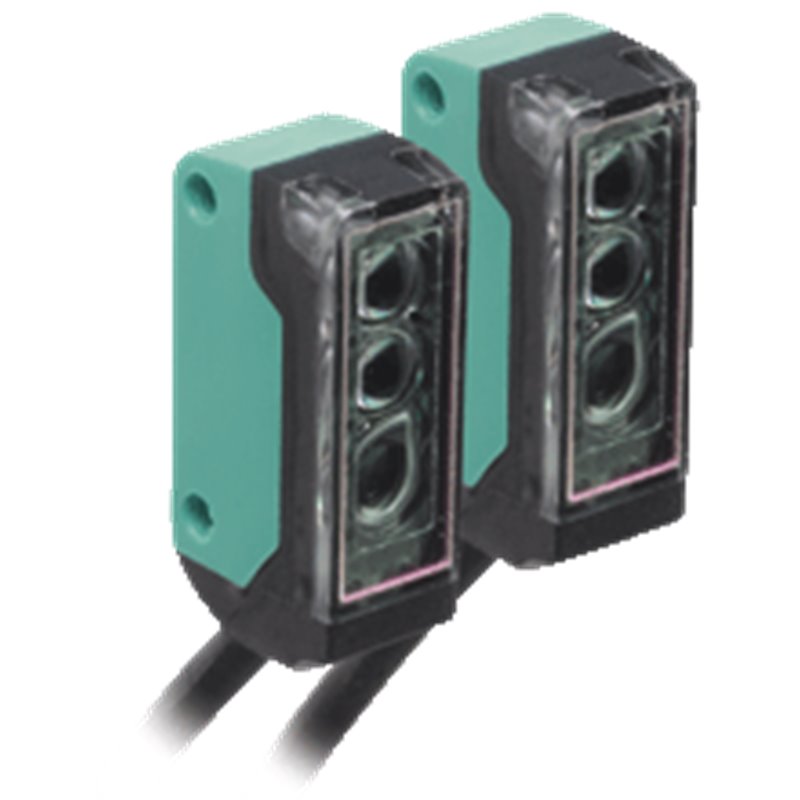

OBE2000-R2-SE0 PEPPERL+FUCHS - Part number: 225907

Datasheet excerpt: Technical data of  OBE2000-R2-SE0 Product Description Thru-beam sensor for standard applications, miniature design, 2000 mm detection range, red light, dark on, NPN output, fixed cable System components EmitterOBE2000-R2 ReceiverOBE2000-R2-E0 General specifications Effective detection rangeLong range mode: 0 ... 2 m High precision mode: 0 ... 200 mm Threshold detection rangeLong range mode: 2.5 m High precision mode: 300 mm Light sourceLED Light typemodulated visible red light , 630 nm Angle deviation2 ° Diameter of the light spotLong range mode: 150 mm at a distance of 2000 mm High precision mode: 0.5 mm at a distance of 50 mm Opening angle2 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , short-circuit : LED green flashing (4 Hz) Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage10 ... 30 V DC , class 2 No-load supply currentEmitter: ≤ 11 mA Receiver: ≤ 8 mA Input Control inputEmitter selection BK: not connected, Long Range mode BK: 0 V, High Precision Mode Switching thresholdTeach-In input Output Switching typeNO contact Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA Voltage drop≤ 1.5 V DC Switching frequency800 Hz Response time600 µs Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width7.5 mm Housing height24 mm Housing depth11.2 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC/ABS and TPU Optical faceglass CablePUR InstallationFixing screws , 2 x M2 allen head screws included with delivery Mass20 g per sensor Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBE2000-R2-SE0 Product Description Thru-beam sensor for standard applications, miniature design, 2000 mm detection range, red light, dark on, NPN output, fixed cable System components EmitterOBE2000-R2 ReceiverOBE2000-R2-E0 General specifications Effective detection rangeLong range mode: 0 ... 2 m High precision mode: 0 ... 200 mm Threshold detection rangeLong range mode: 2.5 m High precision mode: 300 mm Light sourceLED Light typemodulated visible red light , 630 nm Angle deviation2 ° Diameter of the light spotLong range mode: 150 mm at a distance of 2000 mm High precision mode: 0.5 mm at a distance of 50 mm Opening angle2 ° Optical facefrontal Ambient light limitEN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green, statically lit Power on , short-circuit : LED green flashing (4 Hz) Function indicatorReceiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage10 ... 30 V DC , class 2 No-load supply currentEmitter: ≤ 11 mA Receiver: ≤ 8 mA Input Control inputEmitter selection BK: not connected, Long Range mode BK: 0 V, High Precision Mode Switching thresholdTeach-In input Output Switching typeNO contact Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 50 mA Voltage drop≤ 1.5 V DC Switching frequency800 Hz Response time600 µs Conformity Product standardEN 60947-5-2 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Recognized, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width7.5 mm Housing height24 mm Housing depth11.2 mm Degree of protectionIP67 Connection2 m fixed cable Material HousingPC/ABS and TPU Optical faceglass CablePUR InstallationFixing screws , 2 x M2 allen head screws included with delivery Mass20 g per sensor Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
