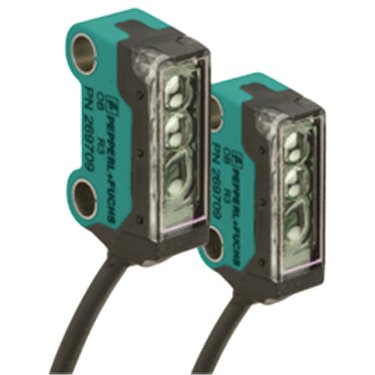

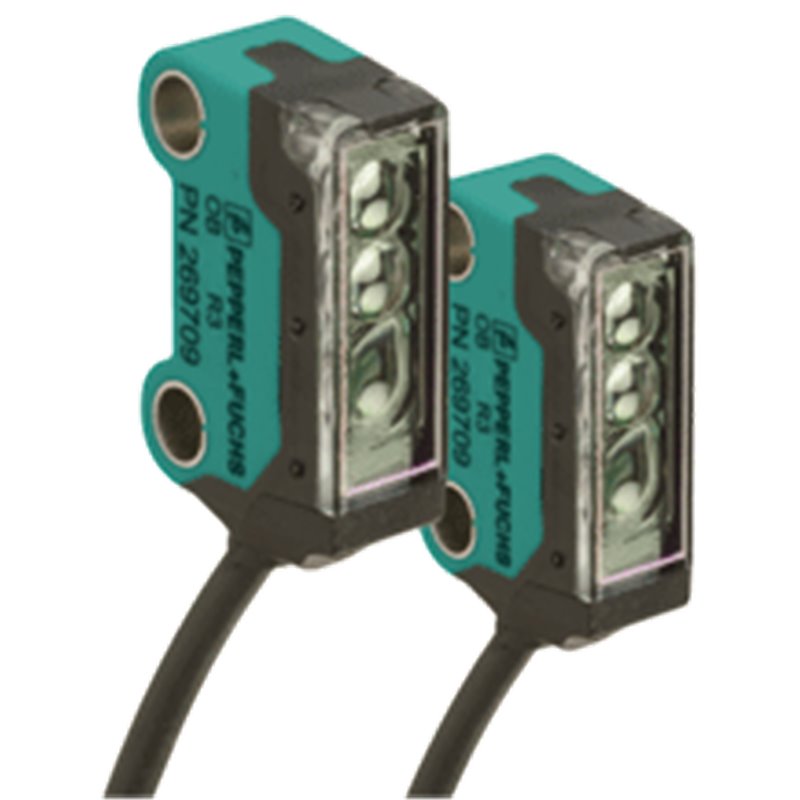

OBE2000-R3-SP1-0,2M-V3 PEPPERL+FUCHS - Part number: 307890

Datasheet excerpt: Technical data of OBE2000-R3-SP1-0,2M-V3-P Product Description Thru-beam sensor for standard applications, miniature design, 2000 mm detection range, red light, push-pull output, 200 mm fixed cable with plug M8, 3-pin System components Emitter OBE2000-R3-S-0,2M-V3-P Receiver OBE2000-R3-P1-0,2M-V3-P General specifications Effective detection range Long range mode: 0 ... 2 m High precision mode: 0 ... 200 mm Threshold detection range Long range mode: 2.5 m High precision mode: 300 mm Light source LED Light type modulated visible red light , 630 nm Angle deviation approx. 2 ° Diameter of the light spot Long range mode: 150 mm at a distance of 2000 mm High precision mode: 0.5 mm at a distance of 50 mm Opening angle approx. 2 ° Optical face frontal Ambient light limit EN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd 806 a Mission Time (TM) 20 a Diagnostic Coverage (DC) 0 % Indicators/operating means Operation indicator LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz) Function indicator Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage 10 ... 30 V DC , class 2 No-load supply current Emitter: ≤ 11 mA Receiver: ≤ 8 mA Input Control input Emitter selection BK: not connected, Long Range mode BK: 0 V, High Precision Mode Output Switching type The default setting is: PNP normally-open/dark-on ; NPN normally-closed/light-on Signal output Push-pull output, short-circuit protected, reverse polarity protected Switching voltage max. 30 V DC Switching current max. 50 mA , resistive load Voltage drop ≤ 1.5 V DC Switching frequency approx. 800 Hz Response time 600 µs Conformity Product standard EN 60947-5-2 Approvals and certificates EAC conformity TR CU 020/2011 UL approval cULus Recognized, Class 2 Power Source CCC approval CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature -25 ... 60 °C (-13 ... 140 °F) Storage temperature -30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width 7.5 mm Housing height 26 mm Housing depth 13.8 mm Degree of protection IP67 Connection 200 mm fixed cable with 3-pin, M8 x 1 connector Material Housing PC/ABS and TPU Optical face PC Cable PUR Mass approx. 20 g per sensor Cable length 200 mm Classifications System Classcode ECLASS 11.0 27270901 ECLASS 10.0.1 27270901 ECLASS 9.0 27270901 ECLASS 8.0 27270901 ECLASS 5.1 27270901 ETIM 8.0 EC002716 ETIM 7.0 EC002716 ETIM 6.0 EC002716 ETIM 5.0 EC002716 UNSPSC 12.1 39121528 Datasheet excerpt: Technical data of OBE2000-R3-SP1-0,2M-V3-P Product Description Thru-beam sensor for standard applications, miniature design, 2000 mm detection range, red light, push-pull output, 200 mm fixed cable with plug M8, 3-pin System components Emitter OBE2000-R3-S-0,2M-V3-P Receiver OBE2000-R3-P1-0,2M-V3-P General specifications Effective detection range Long range mode: 0 ... 2 m High precision mode: 0 ... 200 mm Threshold detection range Long range mode: 2.5 m High precision mode: 300 mm Light source LED Light type modulated visible red light , 630 nm Angle deviation approx. 2 ° Diameter of the light spot Long range mode: 150 mm at a distance of 2000 mm High precision mode: 0.5 mm at a distance of 50 mm Opening angle approx. 2 ° Optical face frontal Ambient light limit EN 60947-5-2 : 30000 Lux Functional safety related parameters MTTFd 806 a Mission Time (TM) 20 a Diagnostic Coverage (DC) 0 % Indicators/operating means Operation indicator LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz) Function indicator Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted Electrical specifications Operating voltage 10 ... 30 V DC , class 2 No-load supply current Emitter: ≤ 11 mA Receiver: ≤ 8 mA Input Control input Emitter selection BK: not connected, Long Range mode BK: 0 V, High Precision Mode Output Switching type The default setting is: PNP normally-open/dark-on ; NPN normally-closed/light-on Signal output Push-pull output, short-circuit protected, reverse polarity protected Switching voltage max. 30 V DC Switching current max. 50 mA , resistive load Voltage drop ≤ 1.5 V DC Switching frequency approx. 800 Hz Response time 600 µs Conformity Product standard EN 60947-5-2 Approvals and certificates EAC conformity TR CU 020/2011 UL approval cULus Recognized, Class 2 Power Source CCC approval CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature -25 ... 60 °C (-13 ... 140 °F) Storage temperature -30 ... 70 °C (-22 ... 158 °F) Mechanical specifications Housing width 7.5 mm Housing height 26 mm Housing depth 13.8 mm Degree of protection IP67 Connection 200 mm fixed cable with 3-pin, M8 x 1 connector Material Housing PC/ABS and TPU Optical face PC Cable PUR Mass approx. 20 g per sensor Cable length 200 mm Classifications System Classcode ECLASS 11.0 27270901 ECLASS 10.0.1 27270901 ECLASS 9.0 27270901 ECLASS 8.0 27270901 ECLASS 5.1 27270901 ETIM 8.0 EC002716 ETIM 7.0 EC002716 ETIM 6.0 EC002716 ETIM 5.0 EC002716 UNSPSC 12.1 39121528
