OBE6000-12GM40 PEPPERL+FUCHS - Part number: 813421

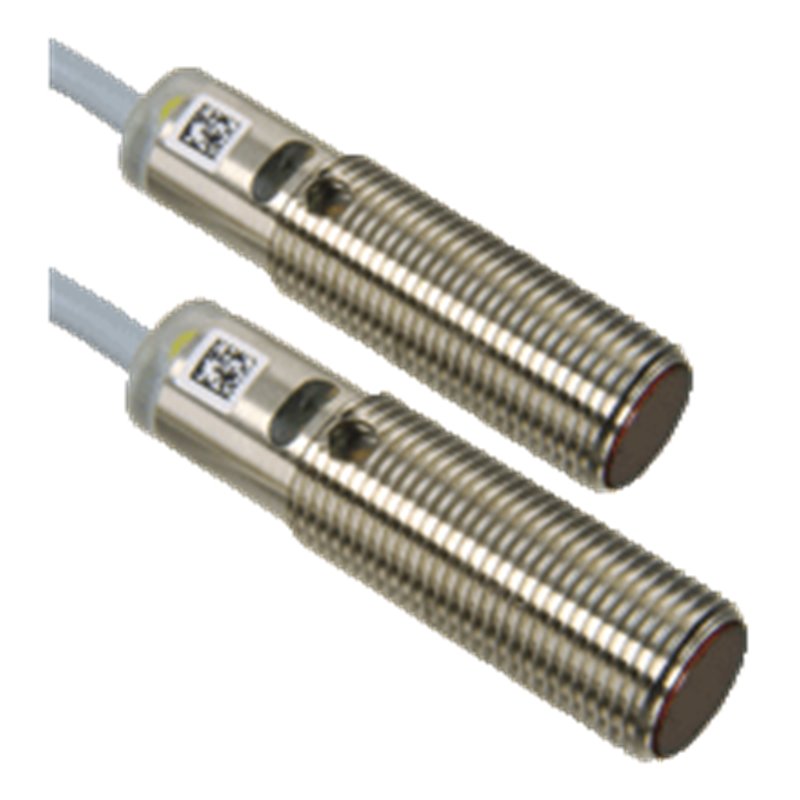

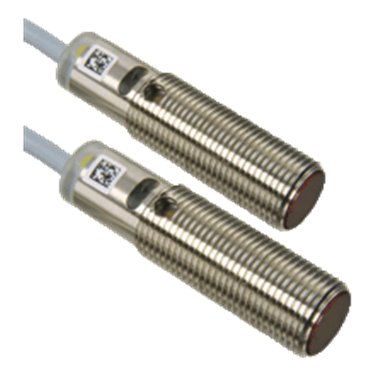

Datasheet excerpt: Technical data of  OBE6000-12GM40-SE4 Product Description Thru-beam sensor, M12 threaded housing design, metal housing, front optical face, 5 m detection range, red light, light/dark on, 1 NPN output, fixed cable System components EmitterOBE6000-12GM40 ReceiverOBE6000-12GM40-E4 General specifications Effective detection range0 ... 6000 mm Threshold detection range8500 mm Adjustment range500 ... 8500 mm Reference targetreceiver Light sourceLED Light typered , 640 nm Angle deviation+/- 2 ° Diameter of the light spot800 mm at a distance of 6 m Red light Opening angle4 Optical facefrontal Ambient light limitEN 60947-5-2 ; 20000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: Power on Function indicatorLED yellow: lights up when receiving the light beam ; flashes when falling short of the stability control; OFF when light beam is interrupted Control elementssensitivity adjustment , receiver Electrical specifications Operating voltage10 ... 30 V DC , class 2 Ripple10 % No-load supply current≤ 30 mA (emitter and receiver) Input Control inputlight on +UBdark on: 0 V Output Switching typelight/dark on electrically switchable Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V Switching frequency≤ 1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V ApprovalsCE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection2 m fixed cable Material Housingbrass, nickel-plated Optical facePMMA Mass45 g (device) Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528 Datasheet excerpt: Technical data of  OBE6000-12GM40-SE4 Product Description Thru-beam sensor, M12 threaded housing design, metal housing, front optical face, 5 m detection range, red light, light/dark on, 1 NPN output, fixed cable System components EmitterOBE6000-12GM40 ReceiverOBE6000-12GM40-E4 General specifications Effective detection range0 ... 6000 mm Threshold detection range8500 mm Adjustment range500 ... 8500 mm Reference targetreceiver Light sourceLED Light typered , 640 nm Angle deviation+/- 2 ° Diameter of the light spot800 mm at a distance of 6 m Red light Opening angle4 Optical facefrontal Ambient light limitEN 60947-5-2 ; 20000 Lux Functional safety related parameters MTTFd806 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: Power on Function indicatorLED yellow: lights up when receiving the light beam ; flashes when falling short of the stability control; OFF when light beam is interrupted Control elementssensitivity adjustment , receiver Electrical specifications Operating voltage10 ... 30 V DC , class 2 Ripple10 % No-load supply current≤ 30 mA (emitter and receiver) Input Control inputlight on +UBdark on: 0 V Output Switching typelight/dark on electrically switchable Signal output1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltagemax. 30 V DC Switching currentmax. 100 mA Voltage drop≤ 2 V Switching frequency≤ 1000 Hz Response time0.5 ms Conformity Product standardEN 60947-5-2 Compliance with standards and directives Standard conformity StandardsUL 508 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V ApprovalsCE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) Ambient conditions Ambient temperature-30 ... 60 °C (-22 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Degree of protectionIP67 Connection2 m fixed cable Material Housingbrass, nickel-plated Optical facePMMA Mass45 g (device) Cable length2 m Classifications SystemClasscode ECLASS 11.027270901 ECLASS 10.0.127270901 ECLASS 9.027270901 ECLASS 8.027270901 ECLASS 5.127270901 ETIM 8.0EC002716 ETIM 7.0EC002716 ETIM 6.0EC002716 ETIM 5.0EC002716 UNSPSC 12.139121528
