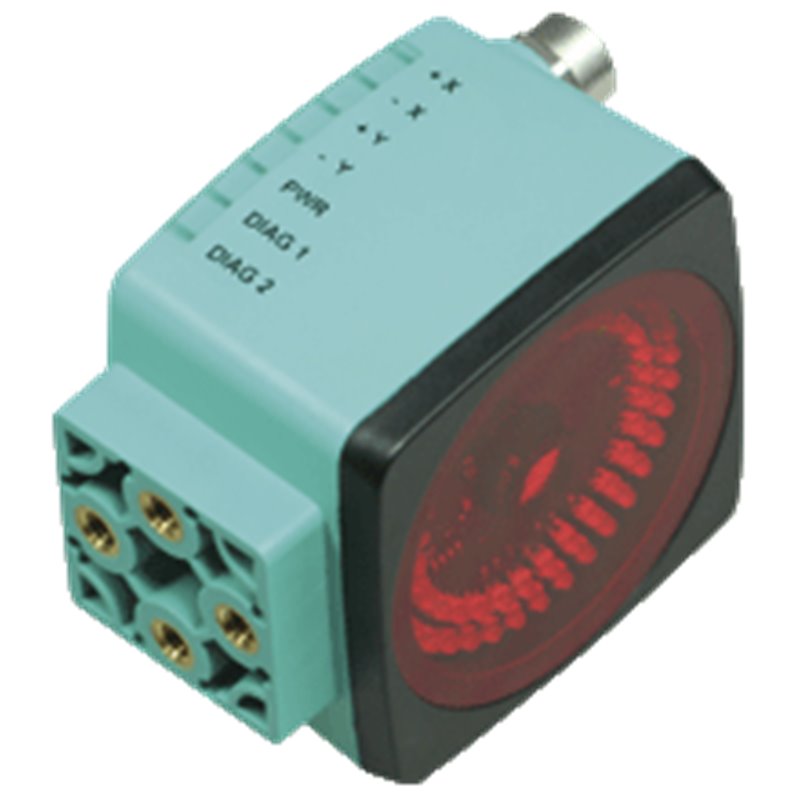

PHA600-F200A-R2 PEPPERL+FUCHS - Part number: 264362

Datasheet excerpt: Technical data of  PHA600-F200A-R2 Product Description Precision positioning on hole in the 70 mm x 70 mm housing General specifications Light sourceLED Light typeIntegrated LED lightning (infrared) Object sizeHole diameter 13 mm Response delay100 ms Read distance600 mm Depth of focus± 50 mm Capture rangemax. 120 mm x 100 mm Nominal ratings Camera TypeCMOS , Global shutter Number of pixels752 x 480 pixels Gray scale256 Functional safety related parameters MTTFd65 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: Ready for operation Function indicator4 x LED yellow: +X, -X, +Y, -Y Control elementsnone Electrical specifications Operating voltage24 V DC ± 15% , PELV No-load supply currentmax. 250 mA Power consumption6 W Interface Interface typeserial , RS 232 Transfer ratemax. 115.2 kBit/s Cable lengthmax. 30 m Interface 1 Interface typeEthernet ProtocolTCP/IP Transfer rate100 MBit/s Cable lengthmax. 30 m Input Input voltageto be applied externally 24 V ± 15% PELV Number/TypeCycle stop, relative stroke Input current1.6 mA at 24 V Switching thresholdlow: < 10 V, high: > 15 V Cable lengthmax. 30 m Output Switching typePNP , short-circuit/overload protected Signal output+X, -X, +Y, -Y Switching voltage24 V Switching currentmax. 100 mA each output Cable lengthmax. 30 m Conformity Shock resistanceEN 60068-2-27:2009 Vibration resistanceEN 60068-2-6:2008 Emitted interferenceEN 61000-6-4:2007+A1:2011 Noise immunityEN 61326-1:2013 Photobiological safetyexempt group according EN 62471:2008 Approvals and certificates CE conformityCE UL approvalcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature0 ... 60 °C (32 ... 140 °F) ,   -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 85 °C (-4 ... 185 °F) Relative humidity90 % , noncondensing Shock resistance< 50 g Vibration resistance< 3 G , 11 ... 200 Hz Mechanical specifications Housing width70 mm Housing height70 mm Housing depth50 mm Degree of protectionIP67 Connection8-pin, M12x1 connector, standard (supply+IO) ,5-pin, M12x1 socket, standard (RS 232) ,4-pin, M12x1 socket, standard (LAN) Material HousingPC/ABS Optical facePlastic pane Installation4 x M6 threading Mass160 g Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.143211711 Datasheet excerpt: Technical data of  PHA600-F200A-R2 Product Description Precision positioning on hole in the 70 mm x 70 mm housing General specifications Light sourceLED Light typeIntegrated LED lightning (infrared) Object sizeHole diameter 13 mm Response delay100 ms Read distance600 mm Depth of focus± 50 mm Capture rangemax. 120 mm x 100 mm Nominal ratings Camera TypeCMOS , Global shutter Number of pixels752 x 480 pixels Gray scale256 Functional safety related parameters MTTFd65 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: Ready for operation Function indicator4 x LED yellow: +X, -X, +Y, -Y Control elementsnone Electrical specifications Operating voltage24 V DC ± 15% , PELV No-load supply currentmax. 250 mA Power consumption6 W Interface Interface typeserial , RS 232 Transfer ratemax. 115.2 kBit/s Cable lengthmax. 30 m Interface 1 Interface typeEthernet ProtocolTCP/IP Transfer rate100 MBit/s Cable lengthmax. 30 m Input Input voltageto be applied externally 24 V ± 15% PELV Number/TypeCycle stop, relative stroke Input current1.6 mA at 24 V Switching thresholdlow: < 10 V, high: > 15 V Cable lengthmax. 30 m Output Switching typePNP , short-circuit/overload protected Signal output+X, -X, +Y, -Y Switching voltage24 V Switching currentmax. 100 mA each output Cable lengthmax. 30 m Conformity Shock resistanceEN 60068-2-27:2009 Vibration resistanceEN 60068-2-6:2008 Emitted interferenceEN 61000-6-4:2007+A1:2011 Noise immunityEN 61326-1:2013 Photobiological safetyexempt group according EN 62471:2008 Approvals and certificates CE conformityCE UL approvalcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature0 ... 60 °C (32 ... 140 °F) ,   -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 85 °C (-4 ... 185 °F) Relative humidity90 % , noncondensing Shock resistance< 50 g Vibration resistance< 3 G , 11 ... 200 Hz Mechanical specifications Housing width70 mm Housing height70 mm Housing depth50 mm Degree of protectionIP67 Connection8-pin, M12x1 connector, standard (supply+IO) ,5-pin, M12x1 socket, standard (RS 232) ,4-pin, M12x1 socket, standard (LAN) Material HousingPC/ABS Optical facePlastic pane Installation4 x M6 threading Mass160 g Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.143211711
