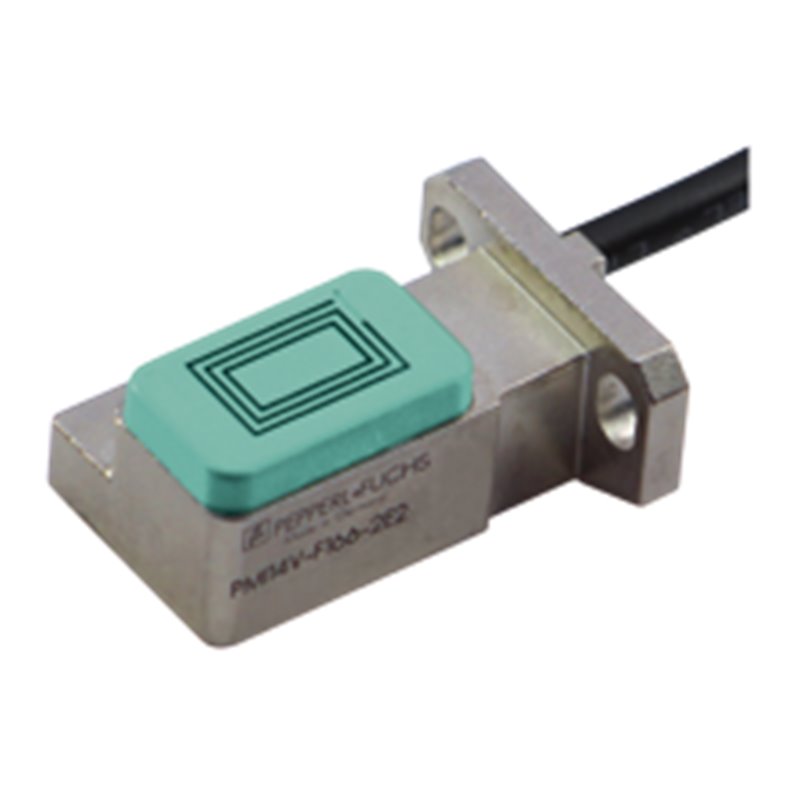

PMI14V-F166-2E2 PEPPERL+FUCHS - Part number: 238881

Datasheet excerpt: Technical data of  PMI14V-F166-2E2 General specifications Switching element functionPNP Dual NO Object distance0.5 ... 2 mm Measurement range0 ... 14 mm Nominal ratings Operating voltage18 ... 30 V DC Reverse polarity protectionreverse polarity protected Voltage drop≤ 3 V Linearity error± 0.3 mm Repeat accuracy± 0.05 mm Resolution33 µm Temperature drift± 0.3 mm (With a target distance of 0.5 mm) No-load supply current≤ 20 mA Functional safety related parameters MTTFd880 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Switching output Output typePNP (2 Channels) Operating currentper channel 50 mA , Combined max. 80 mA Switching windowposition programmable, width 2 mm Switching hysteresis0.4 mm Short-circuit protectionpulsing Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure Ambient conditions Ambient temperature-10 ... 70 °C (14 ... 158 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Connection type5 x 0.14 mm2 , screened 2 m PUR cable Degree of protectionIP65 Material HousingZinc diecast, nickel-plated cover , PBT Targetmild steel, e. g. 1.0037, SR235JR (formerly St37-2) Cable Cable diameter4.8 mm Bending radius> 10 x cable diameter Mass95 g Classifications SystemClasscode ECLASS 11.027270702 ECLASS 10.0.127270702 ECLASS 9.027270702 ECLASS 8.027270702 ECLASS 5.127270702 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  PMI14V-F166-2E2 General specifications Switching element functionPNP Dual NO Object distance0.5 ... 2 mm Measurement range0 ... 14 mm Nominal ratings Operating voltage18 ... 30 V DC Reverse polarity protectionreverse polarity protected Voltage drop≤ 3 V Linearity error± 0.3 mm Repeat accuracy± 0.05 mm Resolution33 µm Temperature drift± 0.3 mm (With a target distance of 0.5 mm) No-load supply current≤ 20 mA Functional safety related parameters MTTFd880 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Switching output Output typePNP (2 Channels) Operating currentper channel 50 mA , Combined max. 80 mA Switching windowposition programmable, width 2 mm Switching hysteresis0.4 mm Short-circuit protectionpulsing Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source, Type 1 enclosure Ambient conditions Ambient temperature-10 ... 70 °C (14 ... 158 °F) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Connection type5 x 0.14 mm2 , screened 2 m PUR cable Degree of protectionIP65 Material HousingZinc diecast, nickel-plated cover , PBT Targetmild steel, e. g. 1.0037, SR235JR (formerly St37-2) Cable Cable diameter4.8 mm Bending radius> 10 x cable diameter Mass95 g Classifications SystemClasscode ECLASS 11.027270702 ECLASS 10.0.127270702 ECLASS 9.027270702 ECLASS 8.027270702 ECLASS 5.127270702 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.139121550
