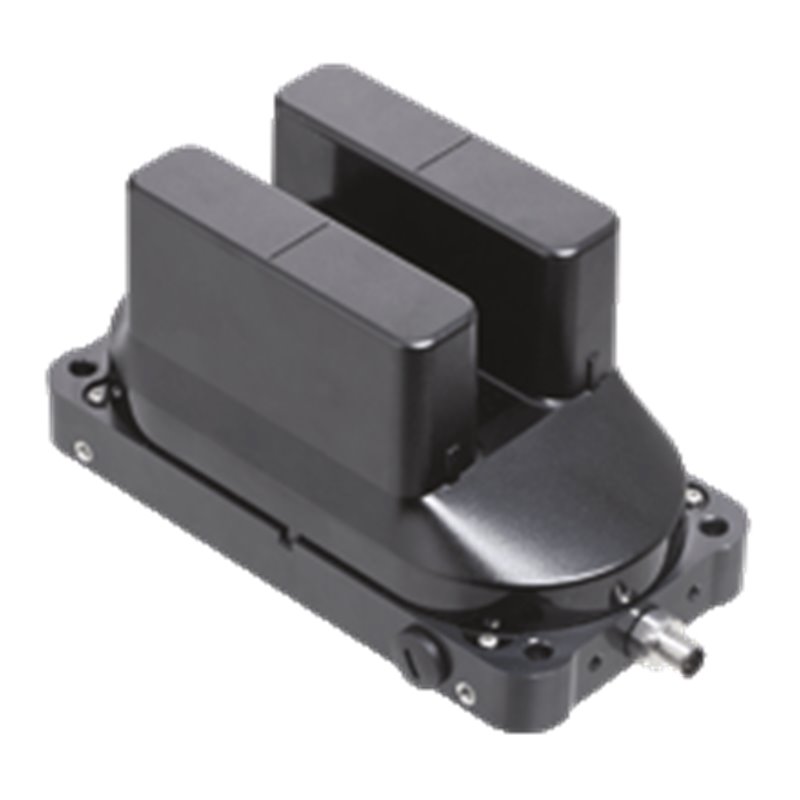

WCS3B-LS311DH-OM PEPPERL+FUCHS - Part number: 199290-0048

Datasheet excerpt: Technical data of  WCS3B-LS311DH-OM Product Description Reading head, SSI interface, Gray code General specifications Passage speed≤ 12.5 m/s Measuring rangemax. 314.5 m Free tolerances to code railhorizontal: 28 mm ( ± 14 mm )vertical: 25.5 mm ( +11.5 mm/-14 mm ) Resolution± 0.4 mm (1,250 positions/m) Functional safety related parameters MTTFd51 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Data flow indicatorLED yellow: data communication active Error indicatorLED red flashing: read head outside of code rail solid on: internal diagnostic test failed DisplayDisplay module, 6-digit , adaptable to installation position Electrical specifications Operating voltage10 ... 30 V DC Power consumption11 VA at 24 V DC Interface Interface typeSSI interface Data output codeGray code , 25 bit Clock frequency100 ... 1000 kHz Pause time≥ 20 µs double request possible, if tp ≤ 10 µs Standard conformity Emitted interferenceDIN EN 61000-6-4 Noise immunityDIN EN 61000-6-2 Shock resistanceDIN EN 60068-2-27, half sine 30 g, 18 ms Vibration resistanceDIN EN 60068-2-6, sine, 5 g, 10 - 2000 Hz, 10 cycles Approvals and certificates CSA approvalcCSAus Certified, General Purpose Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection type8-pin, M12 x 1 connector Degree of protectionIP67 / IP69 Material HousingPET , PC (Polycarbonate) Mass1000 g NoteThe reader must not be operated without the protective housing! Classifications SystemClasscode ECLASS 11.027270701 ECLASS 10.0.127270701 ECLASS 9.027270701 ECLASS 8.027270701 ECLASS 5.127270701 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.141111945 Datasheet excerpt: Technical data of  WCS3B-LS311DH-OM Product Description Reading head, SSI interface, Gray code General specifications Passage speed≤ 12.5 m/s Measuring rangemax. 314.5 m Free tolerances to code railhorizontal: 28 mm ( ± 14 mm )vertical: 25.5 mm ( +11.5 mm/-14 mm ) Resolution± 0.4 mm (1,250 positions/m) Functional safety related parameters MTTFd51 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green: power on Data flow indicatorLED yellow: data communication active Error indicatorLED red flashing: read head outside of code rail solid on: internal diagnostic test failed DisplayDisplay module, 6-digit , adaptable to installation position Electrical specifications Operating voltage10 ... 30 V DC Power consumption11 VA at 24 V DC Interface Interface typeSSI interface Data output codeGray code , 25 bit Clock frequency100 ... 1000 kHz Pause time≥ 20 µs double request possible, if tp ≤ 10 µs Standard conformity Emitted interferenceDIN EN 61000-6-4 Noise immunityDIN EN 61000-6-2 Shock resistanceDIN EN 60068-2-27, half sine 30 g, 18 ms Vibration resistanceDIN EN 60068-2-6, sine, 5 g, 10 - 2000 Hz, 10 cycles Approvals and certificates CSA approvalcCSAus Certified, General Purpose Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature-40 ... 60 °C (-40 ... 140 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection type8-pin, M12 x 1 connector Degree of protectionIP67 / IP69 Material HousingPET , PC (Polycarbonate) Mass1000 g NoteThe reader must not be operated without the protective housing! Classifications SystemClasscode ECLASS 11.027270701 ECLASS 10.0.127270701 ECLASS 9.027270701 ECLASS 8.027270701 ECLASS 5.127270701 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.141111945
