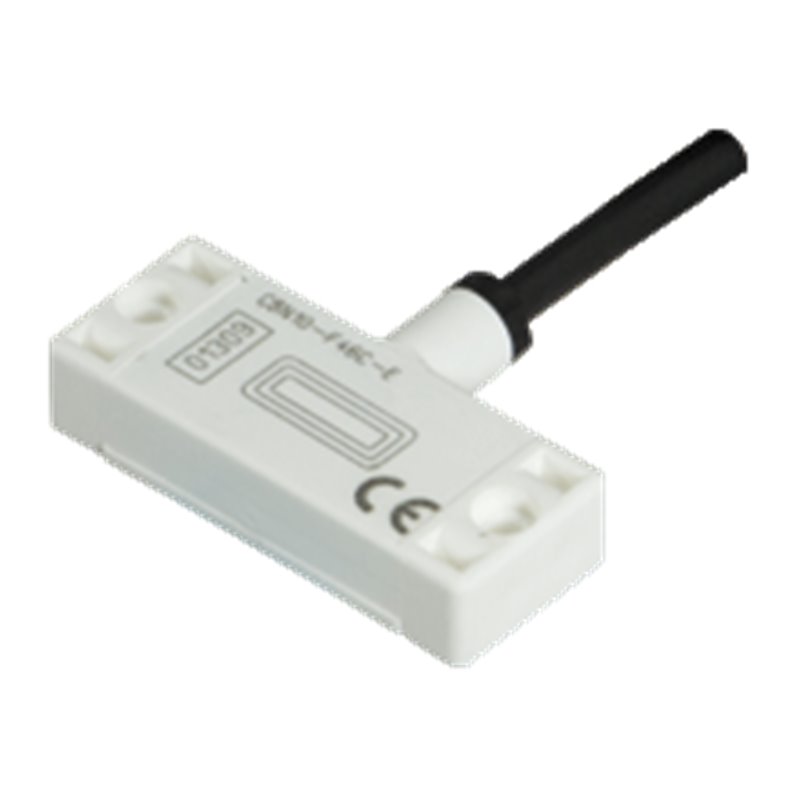

CBN10-F46C-EI PEPPERL+FUCHS - Part number: 279217

Datasheet excerpt: Technical data of  CBN10-F46C-EI General specifications Output typeDigital current output Rated operating distance7 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 5 mm Output type3-wire Nominal ratings Installation conditions B5 mm C20 mm F40 mm / 60 mm Operating voltage9 ... 30 V Switching frequency0 ... 5 Hz Hysteresis1 ... 10 typ. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionyes No-load supply current≤ 20 mA Load resistor0 ... 250 Ohm Functional safety related parameters MTTFd660 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Digital output Output valueobject detected: 10 mA ± 1 mA object not detected: 5 mA ± 1 mA Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalUL 60947-5-2: 2014 Class 2 power source type rating 1 CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable , PUR 2 m Core cross section3 x 0.34 mm2 Housing materialPVDF Sensing facePVDF Degree of protectionIP67 Mass75 g Classifications SystemClasscode ECLASS 11.027270102 ECLASS 10.0.127270102 ECLASS 9.027270102 ECLASS 8.027270102 ECLASS 5.127270102 ETIM 8.0EC002715 ETIM 7.0EC002715 ETIM 6.0EC002715 ETIM 5.0EC002715 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  CBN10-F46C-EI General specifications Output typeDigital current output Rated operating distance7 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 5 mm Output type3-wire Nominal ratings Installation conditions B5 mm C20 mm F40 mm / 60 mm Operating voltage9 ... 30 V Switching frequency0 ... 5 Hz Hysteresis1 ... 10 typ. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionyes No-load supply current≤ 20 mA Load resistor0 ... 250 Ohm Functional safety related parameters MTTFd660 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Digital output Output valueobject detected: 10 mA ± 1 mA object not detected: 5 mA ± 1 mA Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approvalUL 60947-5-2: 2014 Class 2 power source type rating 1 CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable , PUR 2 m Core cross section3 x 0.34 mm2 Housing materialPVDF Sensing facePVDF Degree of protectionIP67 Mass75 g Classifications SystemClasscode ECLASS 11.027270102 ECLASS 10.0.127270102 ECLASS 9.027270102 ECLASS 8.027270102 ECLASS 5.127270102 ETIM 8.0EC002715 ETIM 7.0EC002715 ETIM 6.0EC002715 ETIM 5.0EC002715 UNSPSC 12.139121550
