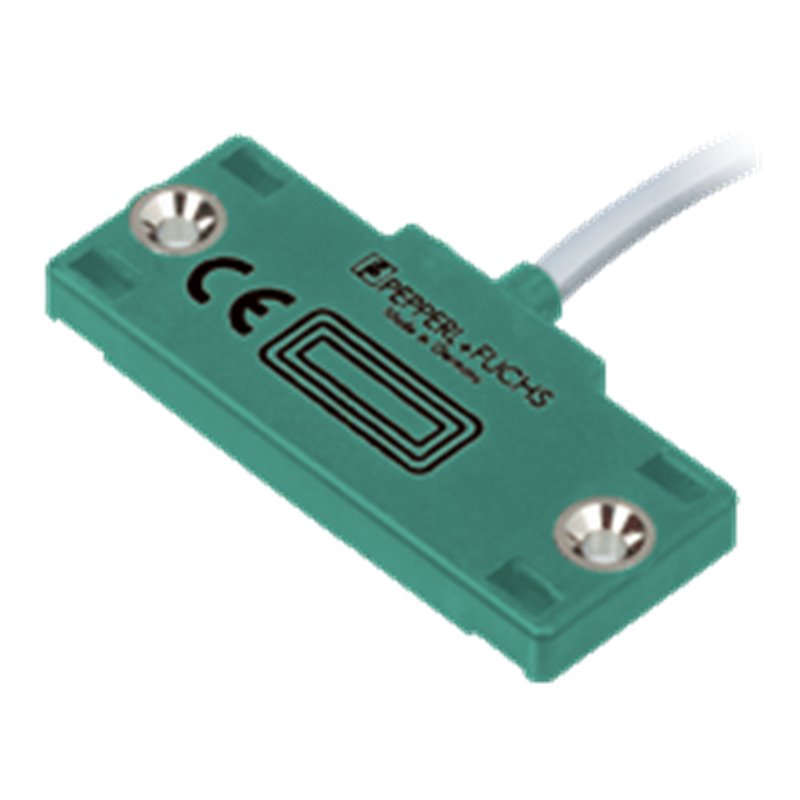

CBN7-F46-E2 PEPPERL+FUCHS - Part number: 239734

Datasheet excerpt: Technical data of  CBN7-F46-E2 General specifications Switching functionNormally open (NO) Output typePNP Rated operating distance7 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 5.67 mm Output type3-wire Nominal ratings Installation conditions B5 mm C20 mm F20 mm / 50 mm Operating voltage10 ... 30 V DC Switching frequency0 ... 5 Hz Hysteresis1 ... 10 typ. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 2 V Voltage drop at IL Voltage drop IL = 10 mA, switching element on0.8 ... 2.2 V typ. 1.4 V Operating current0 ... 100 mA Lowest operating current0 mA Off-state current0 ... 0.5 mA typ. 0.01 mA Off-state current TU =40 °C, switching element off≤ 100 µA No-load supply current≤ 15 mA Time delay before availability≤ 50 ms Switching state indicatorLED, yellow Functional safety related parameters MTTFd673 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means LED yellowindication switching state Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PVC , 2 m Core cross section0.14 mm2 Housing materialPBT Sensing facePBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027270102 ECLASS 10.0.127270102 ECLASS 9.027270102 ECLASS 8.027270102 ECLASS 5.127270102 ETIM 8.0EC002715 ETIM 7.0EC002715 ETIM 6.0EC002715 ETIM 5.0EC002715 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  CBN7-F46-E2 General specifications Switching functionNormally open (NO) Output typePNP Rated operating distance7 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 5.67 mm Output type3-wire Nominal ratings Installation conditions B5 mm C20 mm F20 mm / 50 mm Operating voltage10 ... 30 V DC Switching frequency0 ... 5 Hz Hysteresis1 ... 10 typ. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 2 V Voltage drop at IL Voltage drop IL = 10 mA, switching element on0.8 ... 2.2 V typ. 1.4 V Operating current0 ... 100 mA Lowest operating current0 mA Off-state current0 ... 0.5 mA typ. 0.01 mA Off-state current TU =40 °C, switching element off≤ 100 µA No-load supply current≤ 15 mA Time delay before availability≤ 50 ms Switching state indicatorLED, yellow Functional safety related parameters MTTFd673 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means LED yellowindication switching state Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PVC , 2 m Core cross section0.14 mm2 Housing materialPBT Sensing facePBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027270102 ECLASS 10.0.127270102 ECLASS 9.027270102 ECLASS 8.027270102 ECLASS 5.127270102 ETIM 8.0EC002715 ETIM 7.0EC002715 ETIM 6.0EC002715 ETIM 5.0EC002715 UNSPSC 12.139121550
