CJ15+U1+A2 PEPPERL+FUCHS - Part number: 001604

Capacitive sensor CJ15+U1+A2 CJ15+U1+A2 15 mm flush 4-wire DC The switching distance can be set over a wide range with the potentiometer Capacitive sensor CJ15+U1+A2 CJ15+U1+A2 15 mm flush 4-wire DC The switching distance can be set over a wide range with the potentiometer

MPNs 001604, PEP001604, CJ15+U1+A2
Codice HS 85365000
Peso N/A

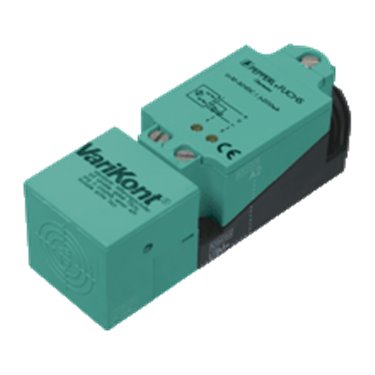

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

2 Disponibile dai partners Prezzo e tempi di consegna su richiesta di quotazione
Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  CJ15+U1+A2 General specifications Switching functioncomplementary Output typePNP Rated operating distance15 mm Installationflush Output polarityDC Assured operating distance0 ... 10.8 mm Output type4-wire Nominal ratings Installation conditions B15 mm C30 mm F80 mm Operating voltage10 ... 30 V DC Switching frequency0 ... 10 Hz Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 3 V Operating current0 ... 200 mA No-load supply current≤ 20 mA Operating voltage indicatorLED, green Switching state indicatorLED, yellow Functional safety related parameters MTTFd750 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection typescrew terminals Information for connectionA maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % Core cross sectionup to 2.5 mm2 Minimum core cross-sectionwithout wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 Maximum core cross-sectionwithout wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2 Housing materialPBT Sensing facePBT Housing basePBT Degree of protectionIP65 NoteTightening torque: 1.8 Nm (housing) Classifications SystemClasscode ECLASS 11.027270102 ECLASS 10.0.127270102 ECLASS 9.027270102 ECLASS 8.027270102 ECLASS 5.127270102 ETIM 8.0EC002715 ETIM 7.0EC002715 ETIM 6.0EC002715 ETIM 5.0EC002715 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  CJ15+U1+A2 General specifications Switching functioncomplementary Output typePNP Rated operating distance15 mm Installationflush Output polarityDC Assured operating distance0 ... 10.8 mm Output type4-wire Nominal ratings Installation conditions B15 mm C30 mm F80 mm Operating voltage10 ... 30 V DC Switching frequency0 ... 10 Hz Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 3 V Operating current0 ... 200 mA No-load supply current≤ 20 mA Operating voltage indicatorLED, green Switching state indicatorLED, yellow Functional safety related parameters MTTFd750 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection typescrew terminals Information for connectionA maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % Core cross sectionup to 2.5 mm2 Minimum core cross-sectionwithout wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 Maximum core cross-sectionwithout wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2 Housing materialPBT Sensing facePBT Housing basePBT Degree of protectionIP65 NoteTightening torque: 1.8 Nm (housing) Classifications SystemClasscode ECLASS 11.027270102 ECLASS 10.0.127270102 ECLASS 9.027270102 ECLASS 8.027270102 ECLASS 5.127270102 ETIM 8.0EC002715 ETIM 7.0EC002715 ETIM 6.0EC002715 ETIM 5.0EC002715 UNSPSC 12.139121550
