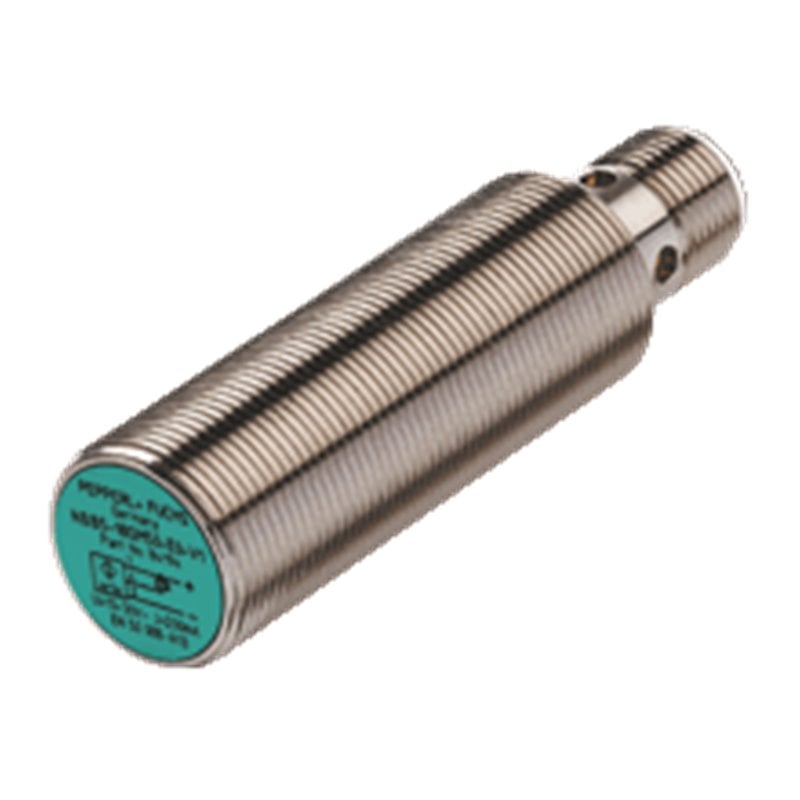

NBB8-18GM60-B3B-V1 PEPPERL+FUCHS - Part number: 226334

Datasheet excerpt: Technical data of  NBB8-18GM60-B3B-V1 Product Description AS-Interface General specifications Switching functionNormally open/closed (NO/NC) programmable Output typeAS-Interface Rated operating distance8 mm Installationflush Assured operating distance0 ... 6.48 mm Reduction factor rAl 0.4 Reduction factor rCu 0.4 Reduction factor r304 0.7 Reduction factor rBrass 0.5 Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 Output type2-wire Nominal ratings Operating voltage26.5 ... 31.9 V via AS-i bus system Switching frequency0 ... 200 Hz Hysteresis1 ... 15 typ. 5 % Reverse polarity protectionreverse polarity protected No-load supply current≤ 25 mA Switching state indicatordual-LED, yellow Error indicatordual-LED, red Functional safety related parameters MTTFd926 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 EN 50295:1999 Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialbrass, nickel-plated Sensing facePBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NBB8-18GM60-B3B-V1 Product Description AS-Interface General specifications Switching functionNormally open/closed (NO/NC) programmable Output typeAS-Interface Rated operating distance8 mm Installationflush Assured operating distance0 ... 6.48 mm Reduction factor rAl 0.4 Reduction factor rCu 0.4 Reduction factor r304 0.7 Reduction factor rBrass 0.5 Node typeA/B node AS-Interface specificationV3.0 Required gateway specification≥ V2.1 Output type2-wire Nominal ratings Operating voltage26.5 ... 31.9 V via AS-i bus system Switching frequency0 ... 200 Hz Hysteresis1 ... 15 typ. 5 % Reverse polarity protectionreverse polarity protected No-load supply current≤ 25 mA Switching state indicatordual-LED, yellow Error indicatordual-LED, red Functional safety related parameters MTTFd926 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 EN 50295:1999 Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialbrass, nickel-plated Sensing facePBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
