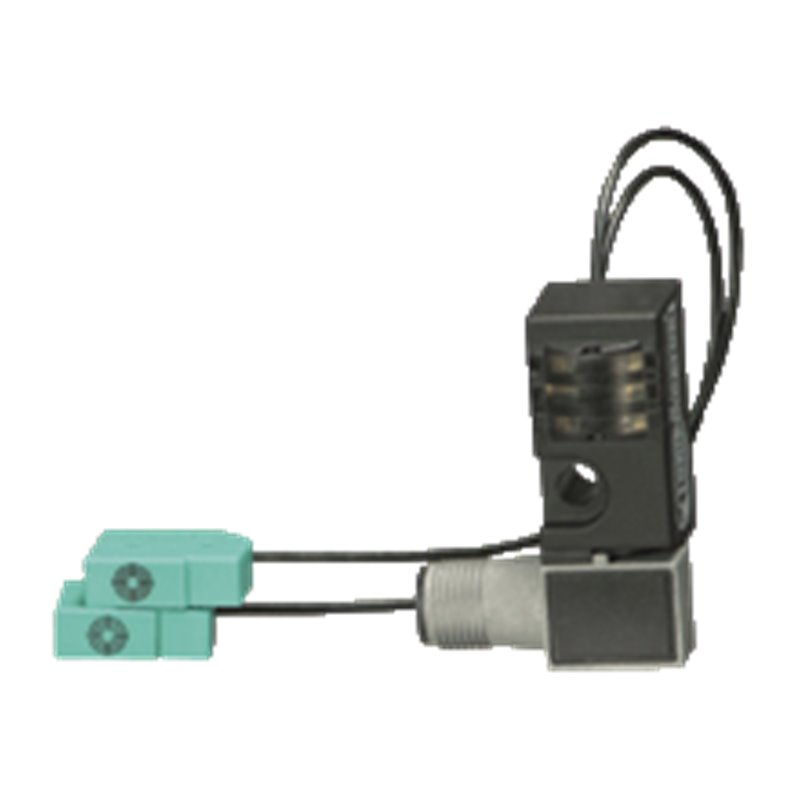

NBN2-F581-100S6-E10-V1 PEPPERL+FUCHS - Part number: 801313

Datasheet excerpt: Technical data of  NBN2-F581-100S6-E10-V1 General specifications Switching function2 x normally open (NO) Output typeNPN Rated operating distance2 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 1.62 mm Reduction factor rAl 0.35 Reduction factor rCu 0.3 Reduction factor r304 0.7 Output type4-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 25 Hz Hysteresis3 ... 20 % 5 typ. Reverse polarity protectionyes Short-circuit protectionpulsing Voltage drop≤ 3 V DC Operating current0 ... 100 mA Off-state current≤ 10 µA No-load supply current≤ 35 mA Constant magnetic field100 mT Alternating magnetic field100 mT Operating voltage indicatorLED green Switching state indicatorswitching state "close" = LED red (S2)switching state "open" = LED yellow (S1) Functional safety related parameters MTTFd1445 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Flexible lead, housing-sensor(100 ± 5) mm, PUR (halogen-free) Housing materialamplifier; PBT, PA6 + GD-ZN AL4oscillators; PBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027210801 ECLASS 10.0.127210801 ECLASS 9.027210801 ECLASS 8.027210801 ECLASS 5.127210801 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NBN2-F581-100S6-E10-V1 General specifications Switching function2 x normally open (NO) Output typeNPN Rated operating distance2 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 1.62 mm Reduction factor rAl 0.35 Reduction factor rCu 0.3 Reduction factor r304 0.7 Output type4-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 25 Hz Hysteresis3 ... 20 % 5 typ. Reverse polarity protectionyes Short-circuit protectionpulsing Voltage drop≤ 3 V DC Operating current0 ... 100 mA Off-state current≤ 10 µA No-load supply current≤ 35 mA Constant magnetic field100 mT Alternating magnetic field100 mT Operating voltage indicatorLED green Switching state indicatorswitching state "close" = LED red (S2)switching state "open" = LED yellow (S1) Functional safety related parameters MTTFd1445 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Flexible lead, housing-sensor(100 ± 5) mm, PUR (halogen-free) Housing materialamplifier; PBT, PA6 + GD-ZN AL4oscillators; PBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027210801 ECLASS 10.0.127210801 ECLASS 9.027210801 ECLASS 8.027210801 ECLASS 5.127210801 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
