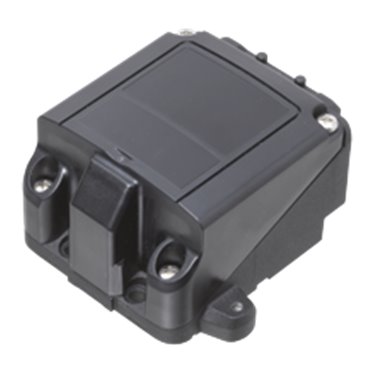

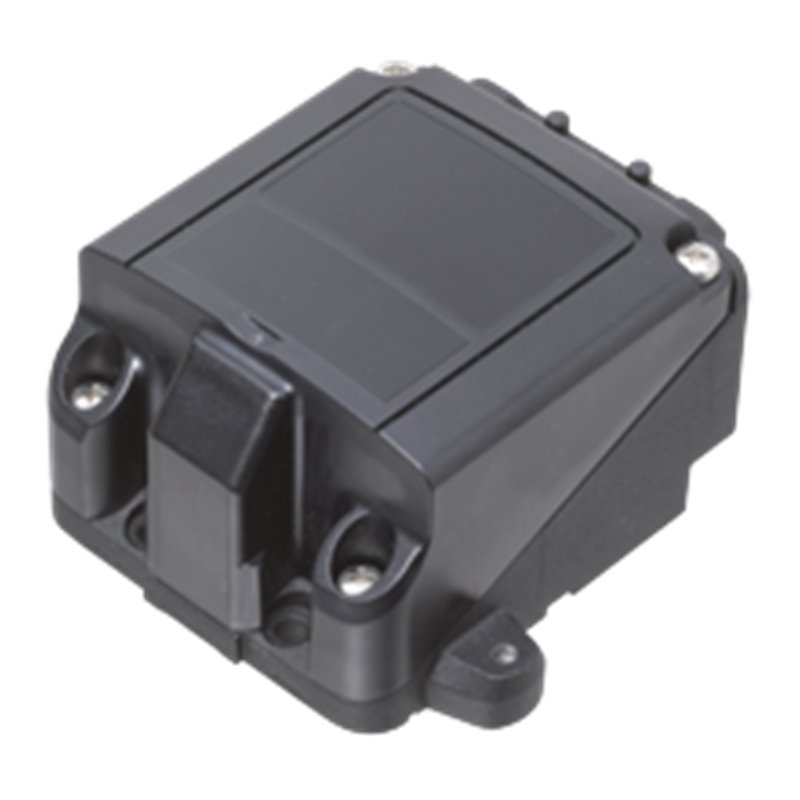

NBN3-F31K2M-E8-B13-S-3G-3D PEPPERL+FUCHS - Part number: 70131295-0004

Datasheet excerpt: Technical data of  NBN3-F31K2M-E8-B13-S-3G-3D General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance2.5 mm Installationfor non-flush mounting Output polarityDC Assured operating distance0 ... 2.05 mm Output type4-wire Nominal ratings Operating voltage10 ... 30 V Switching frequency0 ... 100 Hz Hysteresistyp. 5 % Reverse polarity protectionall connections Short-circuit protectionpulsing Voltage drop≤ 3 V Operating current0 ... 100 mA Off-state current0 ... 0.5 mA typ. 0.1 µA No-load supply current≤ 25 mA Functional safety related parameters MTTFd490 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Valve circuit Voltagemax. 32 V DC Currentmax. 240 mA Short-circuit protectionno Reverse polarity protectionyes, with reversed output LED is out of function, therfore more power for solenoid valve Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 Approvals and certificates IECEx approval Equipment protection level GcIECEx TUR 20.0062X Equipment protection level DcIECEx TUR 20.0068X ATEX approval Equipment protection level GcTÜV 20 ATEX 8592 X Equipment protection level DcTÜV 20 ATEX 8598 X Ambient conditions Ambient temperature-40 ... 75 °C (-40 ... 167 °F) , restriction for use in hazardous area, see instruction manual Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typescrew terminals Connection (system side)screw terminals , M20 x 1.5 cable gland , usable thread length 13.5 mm , screw-in depth max. 13.5 mm ground connection with earthing screw only for wire cross-section 4 mm2, use solid wire or stranded wire with wire end ferrule Connection (valve side)screw terminal , Cable gland M20 x 1.5 Housing materialPC (glass-fiber-reinforced Makrolon) Housing basepowder coated aluminum Degree of protectionIP67 ; additional degree of protection IP66/IP69 with BT65-F31K2-RG-EN-01 and SH-F31K2-B13 Terminal assembly Number10 Connection typeFor connection of copper wires with 7 mm dismantle length Tightening torque 0.5 ... 0.6 Nm TypeScrew terminal block, pluggable Terminal capacityConductor cross-section 0,25 ... 2,5 mm2 , flexible/rigid For Multiple-wire connection: two wires of equal cross-section per 0.25 ... 1 mm2 Tightening torque, fastening screws4 Nm ... 5 Nm Tightening torque, housing screws1.5 Nm Tightening torque of cover srews1.5 Nm Tightening torque, earthing screw1.5 Nm Tightening torque, cable glandM20 x 1.5 ; max. 11 Nm Tightening torque, stopping plug2 Nm General information Use in the hazardous areasee instruction manuals Classifications SystemClasscode ECLASS 11.027220501 ECLASS 10.0.127220501 ECLASS 9.027220501 ECLASS 8.027220501 ECLASS 5.127220501 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NBN3-F31K2M-E8-B13-S-3G-3D General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance2.5 mm Installationfor non-flush mounting Output polarityDC Assured operating distance0 ... 2.05 mm Output type4-wire Nominal ratings Operating voltage10 ... 30 V Switching frequency0 ... 100 Hz Hysteresistyp. 5 % Reverse polarity protectionall connections Short-circuit protectionpulsing Voltage drop≤ 3 V Operating current0 ... 100 mA Off-state current0 ... 0.5 mA typ. 0.1 µA No-load supply current≤ 25 mA Functional safety related parameters MTTFd490 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Valve circuit Voltagemax. 32 V DC Currentmax. 240 mA Short-circuit protectionno Reverse polarity protectionyes, with reversed output LED is out of function, therfore more power for solenoid valve Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 Approvals and certificates IECEx approval Equipment protection level GcIECEx TUR 20.0062X Equipment protection level DcIECEx TUR 20.0068X ATEX approval Equipment protection level GcTÜV 20 ATEX 8592 X Equipment protection level DcTÜV 20 ATEX 8598 X Ambient conditions Ambient temperature-40 ... 75 °C (-40 ... 167 °F) , restriction for use in hazardous area, see instruction manual Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typescrew terminals Connection (system side)screw terminals , M20 x 1.5 cable gland , usable thread length 13.5 mm , screw-in depth max. 13.5 mm ground connection with earthing screw only for wire cross-section 4 mm2, use solid wire or stranded wire with wire end ferrule Connection (valve side)screw terminal , Cable gland M20 x 1.5 Housing materialPC (glass-fiber-reinforced Makrolon) Housing basepowder coated aluminum Degree of protectionIP67 ; additional degree of protection IP66/IP69 with BT65-F31K2-RG-EN-01 and SH-F31K2-B13 Terminal assembly Number10 Connection typeFor connection of copper wires with 7 mm dismantle length Tightening torque 0.5 ... 0.6 Nm TypeScrew terminal block, pluggable Terminal capacityConductor cross-section 0,25 ... 2,5 mm2 , flexible/rigid For Multiple-wire connection: two wires of equal cross-section per 0.25 ... 1 mm2 Tightening torque, fastening screws4 Nm ... 5 Nm Tightening torque, housing screws1.5 Nm Tightening torque of cover srews1.5 Nm Tightening torque, earthing screw1.5 Nm Tightening torque, cable glandM20 x 1.5 ; max. 11 Nm Tightening torque, stopping plug2 Nm General information Use in the hazardous areasee instruction manuals Classifications SystemClasscode ECLASS 11.027220501 ECLASS 10.0.127220501 ECLASS 9.027220501 ECLASS 8.027220501 ECLASS 5.127220501 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
