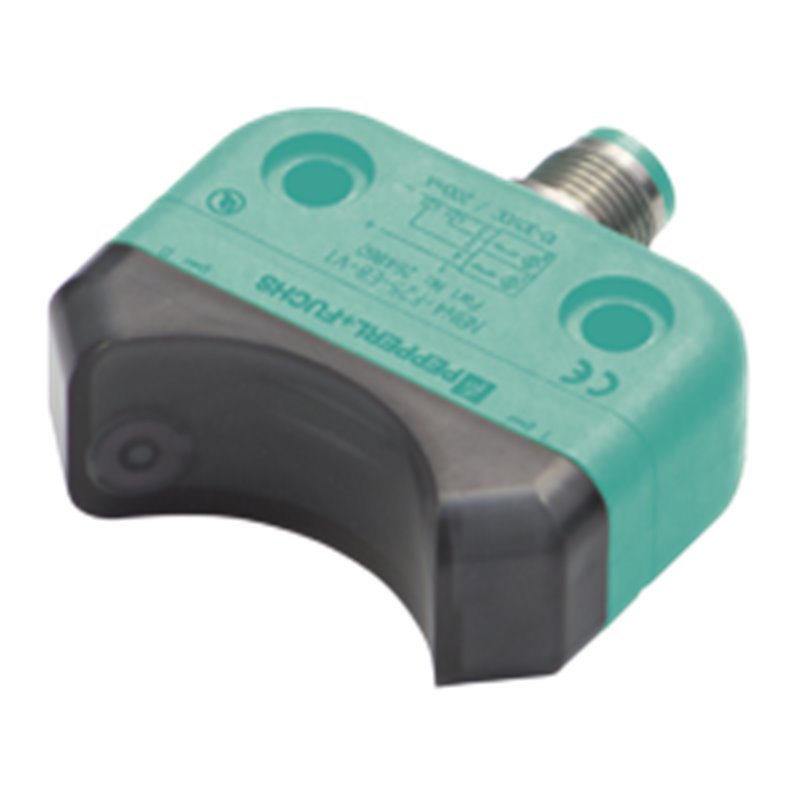

NBN4-F25-E8-V1 PEPPERL+FUCHS - Part number: 264860

Datasheet excerpt: Technical data of  NBN4-F25-E8-V1 General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance4 mm Installationflush mountable Output polarityDC Assured operating distance0 ... 3.24 mm Actual operating distance3.6 ... 4.4 mm typ. Reduction factor rAl 0.5 Reduction factor rCu 0.4 Reduction factor r304 1 Reduction factor rSt37 1.1 Output type3-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 1000 Hz Hysteresistyp. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 2.5 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA typ. 0.1 µA at 25 °C No-load supply current≤ 22.5 mA Time delay before availability≤ 100 ms Operating voltage indicatorLED, green Switching state indicatorLED, yellow Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Connector housingmetal Housing materialPBT Sensing facePC Degree of protectionIP67 Mass48 g Tightening torque, fastening screwsM5 x 25 : 2.7 Nm NoteMounted on mechanical drive Classifications SystemClasscode ECLASS 11.027220501 ECLASS 10.0.127220501 ECLASS 9.027220501 ECLASS 8.027220501 ECLASS 5.127220501 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NBN4-F25-E8-V1 General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance4 mm Installationflush mountable Output polarityDC Assured operating distance0 ... 3.24 mm Actual operating distance3.6 ... 4.4 mm typ. Reduction factor rAl 0.5 Reduction factor rCu 0.4 Reduction factor r304 1 Reduction factor rSt37 1.1 Output type3-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 1000 Hz Hysteresistyp. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 2.5 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA typ. 0.1 µA at 25 °C No-load supply current≤ 22.5 mA Time delay before availability≤ 100 ms Operating voltage indicatorLED, green Switching state indicatorLED, yellow Functional safety related parameters MTTFd860 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Connector housingmetal Housing materialPBT Sensing facePC Degree of protectionIP67 Mass48 g Tightening torque, fastening screwsM5 x 25 : 2.7 Nm NoteMounted on mechanical drive Classifications SystemClasscode ECLASS 11.027220501 ECLASS 10.0.127220501 ECLASS 9.027220501 ECLASS 8.027220501 ECLASS 5.127220501 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
