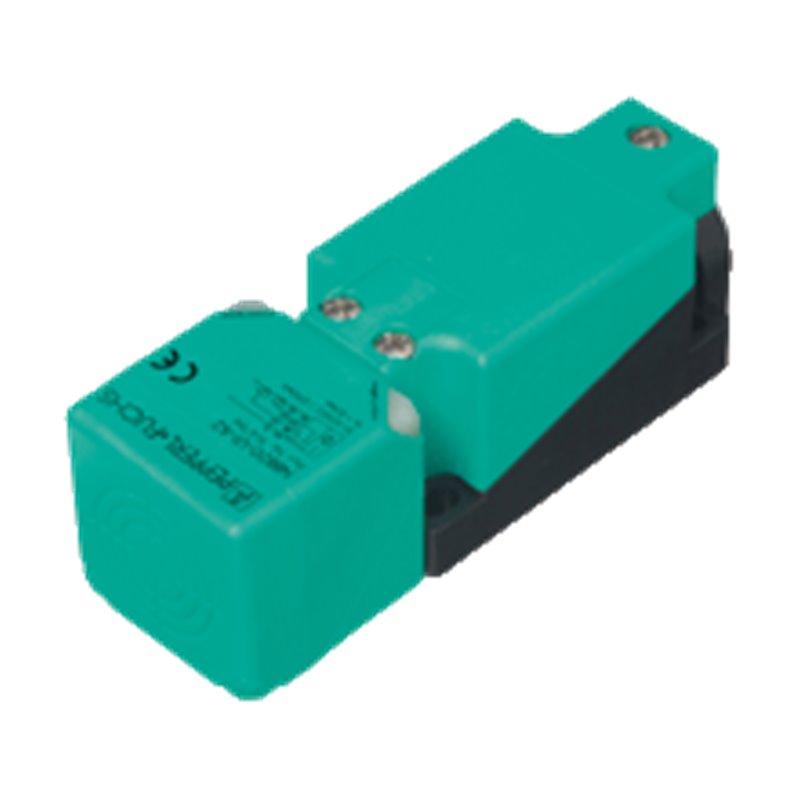

NBN40-U1-Z2 PEPPERL+FUCHS - Part number: 203096

Datasheet excerpt: Technical data of  NBN40-U1-Z2 General specifications Switching functionNormally open/closed (NO/NC) Output typeTwo-wire Rated operating distance40 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 32.4 mm Actual operating distance36 ... 44 mm Reduction factor rAl 0.3 Reduction factor rCu 0.3 Reduction factor r304 0.7 Output type2-wire Nominal ratings Operating voltage5 ... 60 V DC Switching frequency0 ... 100 Hz Hysteresistyp. 5 % Reverse polarity protectionreverse polarity tolerant Short-circuit protectionyes Voltage drop≤ 5 V Voltage drop at IL Voltage drop IL = 100 mA, switching element on... 5 V Operating current2 ... 200 mA Off-state current0 ... 0.5 mA Switching state indicator2 LED, yellow Functional safety related parameters MTTFd1170 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Connection typescrew terminals Information for connectionA maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % Core cross sectionup to 2.5 mm2 Minimum core cross-sectionwithout wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 Maximum core cross-sectionwithout wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2 Housing materialPA/metal with epoxy powder coating Sensing facePA Housing baseplastic Degree of protectionIP68 / IP69K Mass225 g NoteTightening torque: 1.8 Nm (housing) Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NBN40-U1-Z2 General specifications Switching functionNormally open/closed (NO/NC) Output typeTwo-wire Rated operating distance40 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 32.4 mm Actual operating distance36 ... 44 mm Reduction factor rAl 0.3 Reduction factor rCu 0.3 Reduction factor r304 0.7 Output type2-wire Nominal ratings Operating voltage5 ... 60 V DC Switching frequency0 ... 100 Hz Hysteresistyp. 5 % Reverse polarity protectionreverse polarity tolerant Short-circuit protectionyes Voltage drop≤ 5 V Voltage drop at IL Voltage drop IL = 100 mA, switching element on... 5 V Operating current2 ... 200 mA Off-state current0 ... 0.5 mA Switching state indicator2 LED, yellow Functional safety related parameters MTTFd1170 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-25 ... 85 °C (-13 ... 185 °F) Mechanical specifications Connection typescrew terminals Information for connectionA maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % Core cross sectionup to 2.5 mm2 Minimum core cross-sectionwithout wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 Maximum core cross-sectionwithout wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2 Housing materialPA/metal with epoxy powder coating Sensing facePA Housing baseplastic Degree of protectionIP68 / IP69K Mass225 g NoteTightening torque: 1.8 Nm (housing) Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
