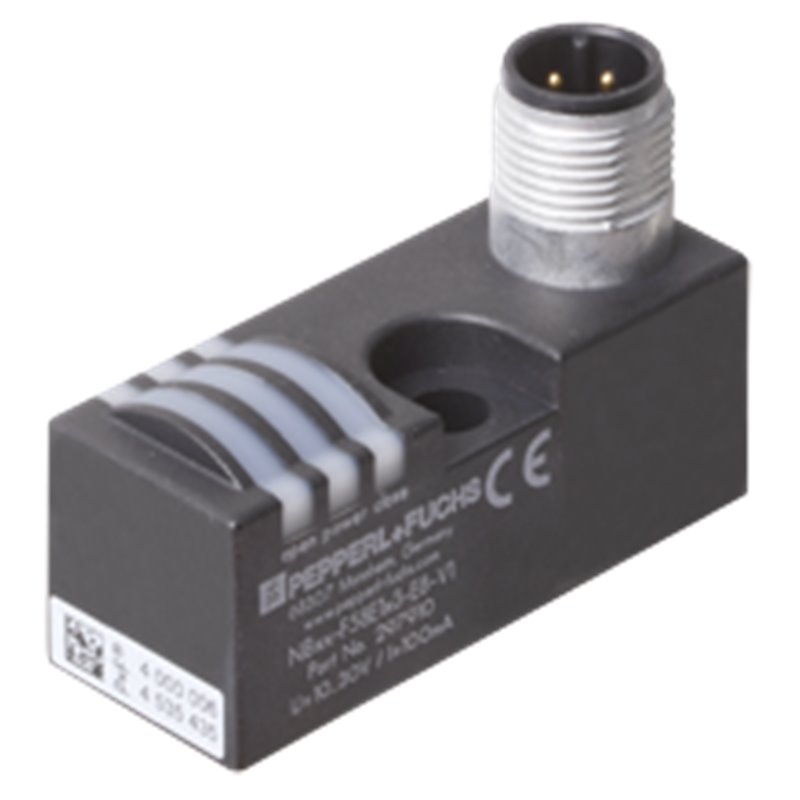

NBxx-F58E1x3-E8-V1 PEPPERL+FUCHS - Part number: 297910

Datasheet excerpt: Technical data of  NBxx-F58E1x3-E8-V1 Product Description Amplifier unit General specifications Switching function2 x normally open (NO) Output typePNP Output polarityDC Output type4-wire Nominal ratings Operating voltage10 ... 30 V Switching frequency0 ... 100 Hz Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 3 V Rated insulation voltage60 V Operating current0 ... 100 mA Off-state current0 ... 0.5 mA typ. 0.1 µA at 25 °C No-load supply current≤ 15 mA Constant magnetic field100 mT Alternating magnetic field100 mT Tuning-outtypically 1 s Operating voltage indicatorLED green Switching state indicatorSwitching state "closed" = LED red (S2)switching state "open" = LED yellow (S1) Functional safety related parameters MTTFd1000 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 50 °C (-13 ... 122 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialPA66 Degree of protectionIP65 Protection classII Noteonly for use with satellite unit NBN2-F58xx... family Classifications SystemClasscode ECLASS 11.027210801 ECLASS 10.0.127210801 ECLASS 9.027210801 ECLASS 8.027210801 ECLASS 5.127210801 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NBxx-F58E1x3-E8-V1 Product Description Amplifier unit General specifications Switching function2 x normally open (NO) Output typePNP Output polarityDC Output type4-wire Nominal ratings Operating voltage10 ... 30 V Switching frequency0 ... 100 Hz Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 3 V Rated insulation voltage60 V Operating current0 ... 100 mA Off-state current0 ... 0.5 mA typ. 0.1 µA at 25 °C No-load supply current≤ 15 mA Constant magnetic field100 mT Alternating magnetic field100 mT Tuning-outtypically 1 s Operating voltage indicatorLED green Switching state indicatorSwitching state "closed" = LED red (S2)switching state "open" = LED yellow (S1) Functional safety related parameters MTTFd1000 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 50 °C (-13 ... 122 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialPA66 Degree of protectionIP65 Protection classII Noteonly for use with satellite unit NBN2-F58xx... family Classifications SystemClasscode ECLASS 11.027210801 ECLASS 10.0.127210801 ECLASS 9.027210801 ECLASS 8.027210801 ECLASS 5.127210801 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
