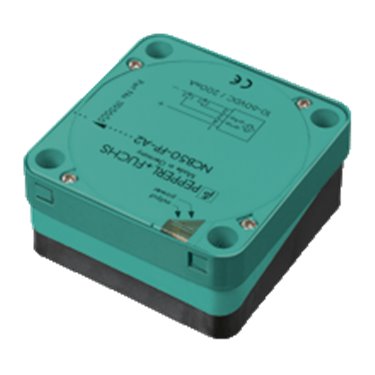

NCB50-FP-E2-P1 PEPPERL+FUCHS - Part number: 187388

Datasheet excerpt: Technical data of  NCB50-FP-E2-P1 General specifications Switching functionNormally open (NO) Output typePNP Rated operating distance50 mm Installationflush Output polarityDC Assured operating distance0 ... 40.5 mm Reduction factor rAl 0.38 Reduction factor rCu 0.35 Reduction factor r304 0.83 Output type3-wire Nominal ratings Operating voltage10 ... 60 V DC Switching frequency0 ... 80 Hz Hysteresistyp. 3 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 3 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA No-load supply current≤ 20 mA Time delay before availability≤ 300 ms Operating voltage indicatorLED, green Switching state indicatorLED, yellow Functional safety related parameters MTTFd940 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection typescrew terminals Information for connectionA maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % Core cross sectionup to 2.5 mm2 Minimum core cross-sectionwithout wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 Maximum core cross-sectionwithout wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2 Housing materialPBT Sensing facePBT Housing basePBT Degree of protectionIP68 Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NCB50-FP-E2-P1 General specifications Switching functionNormally open (NO) Output typePNP Rated operating distance50 mm Installationflush Output polarityDC Assured operating distance0 ... 40.5 mm Reduction factor rAl 0.38 Reduction factor rCu 0.35 Reduction factor r304 0.83 Output type3-wire Nominal ratings Operating voltage10 ... 60 V DC Switching frequency0 ... 80 Hz Hysteresistyp. 3 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 3 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA No-load supply current≤ 20 mA Time delay before availability≤ 300 ms Operating voltage indicatorLED, green Switching state indicatorLED, yellow Functional safety related parameters MTTFd940 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCertified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection typescrew terminals Information for connectionA maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % Core cross sectionup to 2.5 mm2 Minimum core cross-sectionwithout wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 Maximum core cross-sectionwithout wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2 Housing materialPBT Sensing facePBT Housing basePBT Degree of protectionIP68 Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
