NCN3-F31K2-N4-B33-S PEPPERL+FUCHS - Part number: 235079
NFS
Non disponibile - Backorder
Da ordinare dal produttore
237,07 USD

Tasse di importazione escluse

Devi essere autenticato

NCN3-F31K2-N4-B33-S PEPPERL+FUCHS - Part number: 235079

PEPPERL+FUCHS

confronta
NCN3-F31K2-N4-B33-S PEPPERL+FUCHS - Part number: 235079

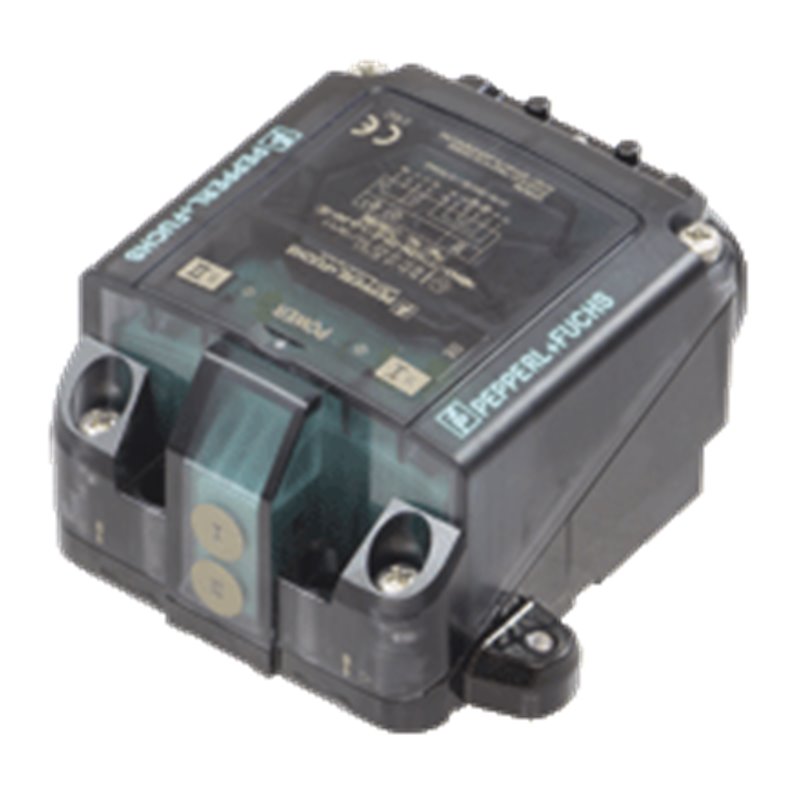

Inductive sensor NCN3-F31K2-N4-B33-S NCN3-F31K2-N4-B33-S Direct mounting on standard actuators ATEX & IECEX certifications Usable up to SIL 2 acc. to IEC 61508 Weatherproof housing for outdoor applications LEDs for switching state of sensor and solenoid valve Plug-in terminals Temperature range-40 ... 100 °C (-40 ... 212 °F) 2 solenoid valves can be connected NAMUR sensors must be operated with approved switch amplifiers. Please find suitable devices below: Go to our Switch Amplifiers Inductive sensor NCN3-F31K2-N4-B33-S NCN3-F31K2-N4-B33-S Direct mounting on standard actuators ATEX & IECEX certifications Usable up to SIL 2 acc. to IEC 61508 Weatherproof housing for outdoor applications LEDs for switching state of sensor and solenoid valve Plug-in terminals Temperature range-40 ... 100 °C (-40 ... 212 °F) 2 solenoid valves can be connected NAMUR sensors must be operated with approved switch amplifiers. Please find suitable devices below: Go to our Switch Amplifiers

MPNs 235079, PEP235079, NCN3-F31K2-N4-B33-S
Codice HS 85365090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
237,07 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  NCN3-F31K2-N4-B33-S General specifications Switching function2 x normally closed (NC) Output typeNAMUR Rated operating distance3 mm Installationflush mountable Assured operating distance0 ... 2.4 mm For assured operating distance sar see Manual Functional Safety. Actual operating distance2.7 ... 3.3 mm typ. Actuating elementStainless steel 1.4305 / AISI 303 8.5 mm x 8.5 mm x 0.5 mm Reduction factor rAl 0.4 Reduction factor rCu 0.4 Reduction factor r304 0.7 Reduction factor rSt37 1 Reduction factor rBrass 0.5 Output type2-wire Nominal ratings Nominal voltage8.2 V (Ri 1 kΩ) Switching frequency0 ... 3 kHz Hysteresistyp. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionyes Suitable for 2:1 technologyyes , Reverse polarity protection diode not required Current consumption Measuring plate not detected≥ 3 mA Measuring plate detected≤ 1 mA Time delay before availability≤ 1.1 ms Switching state indicatorLED, yellow Valve status indicatorLED, yellow Functional safety related parameters Safety Integrity Level (SIL)SIL 2 MTTFd1730 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Valve circuit Voltagemax. 32 V DC Currentmax. 240 mA Short-circuit protectionno Reverse polarity protectionyes, with reversed output LED is out of function, therfore more power for solenoid valve Compliance with standards and directives Standard conformity NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999 Electromagnetic compatibilityNE 21:2007 StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates IECEx approval Equipment protection level GaIECEx TUR 17.0055X Equipment protection level GbIECEx TUR 17.0055X Equipment protection level MbIECEx TUR 17.0055X ATEX approval Equipment protection level GaTÜV 17 ATEX 8125 X Equipment protection level GbTÜV 17 ATEX 8125 X Equipment protection level Gc (ic)PF13CERT2895 X UL approvalcULus Listed, General Purpose, Class 2 Power Source Ordinary LocationE87056 Hazardous LocationE501628 Control drawing116-0455 CCC approval Hazardous Location2020322315002305 NEPSI approval NEPSI certificateGYJ18.1172X Ambient conditions Ambient temperature-40 ... 100 °C (-40 ... 212 °F) Storage temperature-40 ... 100 °C (-40 ... 212 °F) Mechanical specifications Connection typescrew terminals Connection (system side)Screw terminals, tightening torque min. 0.5 Nm Stripped length 7 mm , M20 x 1.5 cable gland , usable thread length 13.5 mm , screw-in depth max. 13.5 mm Core cross section (system side)rigid: 0.14 ... 2.5 mm2 flexible: 0.14 ... 1.5 mm2 flexible with core-end sleeve: 0.25 ... 1.5 mm2 Connection (valve side)4-pin, M12 x 1 socket Core cross section (valve side)like core cross section (system side) Housing materialrugged, translucent polycarbonate (PC) optimised for outdoor use Housing basePC Degree of protectionIP66 / IP67 / IP69 Tightening torque, fastening screws4 Nm ... 5 Nm Tightening torque, housing screws≤ 2 Nm Tightening torque of cover srews1.5 Nm Tightening torque, cable glandM20 x 1.5 ; max. 7 Nm Tightening torque, stopping plug1 Nm NoteLED switch-off General information Use in the hazardous areasee instruction manuals Classifications SystemClasscode ECLASS 11.027220501 ECLASS 10.0.127220501 ECLASS 9.027220501 ECLASS 8.027220501 ECLASS 5.127220501 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NCN3-F31K2-N4-B33-S General specifications Switching function2 x normally closed (NC) Output typeNAMUR Rated operating distance3 mm Installationflush mountable Assured operating distance0 ... 2.4 mm For assured operating distance sar see Manual Functional Safety. Actual operating distance2.7 ... 3.3 mm typ. Actuating elementStainless steel 1.4305 / AISI 303 8.5 mm x 8.5 mm x 0.5 mm Reduction factor rAl 0.4 Reduction factor rCu 0.4 Reduction factor r304 0.7 Reduction factor rSt37 1 Reduction factor rBrass 0.5 Output type2-wire Nominal ratings Nominal voltage8.2 V (Ri 1 kΩ) Switching frequency0 ... 3 kHz Hysteresistyp. 5 % Reverse polarity protectionreverse polarity protected Short-circuit protectionyes Suitable for 2:1 technologyyes , Reverse polarity protection diode not required Current consumption Measuring plate not detected≥ 3 mA Measuring plate detected≤ 1 mA Time delay before availability≤ 1.1 ms Switching state indicatorLED, yellow Valve status indicatorLED, yellow Functional safety related parameters Safety Integrity Level (SIL)SIL 2 MTTFd1730 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Valve circuit Voltagemax. 32 V DC Currentmax. 240 mA Short-circuit protectionno Reverse polarity protectionyes, with reversed output LED is out of function, therfore more power for solenoid valve Compliance with standards and directives Standard conformity NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999 Electromagnetic compatibilityNE 21:2007 StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates IECEx approval Equipment protection level GaIECEx TUR 17.0055X Equipment protection level GbIECEx TUR 17.0055X Equipment protection level MbIECEx TUR 17.0055X ATEX approval Equipment protection level GaTÜV 17 ATEX 8125 X Equipment protection level GbTÜV 17 ATEX 8125 X Equipment protection level Gc (ic)PF13CERT2895 X UL approvalcULus Listed, General Purpose, Class 2 Power Source Ordinary LocationE87056 Hazardous LocationE501628 Control drawing116-0455 CCC approval Hazardous Location2020322315002305 NEPSI approval NEPSI certificateGYJ18.1172X Ambient conditions Ambient temperature-40 ... 100 °C (-40 ... 212 °F) Storage temperature-40 ... 100 °C (-40 ... 212 °F) Mechanical specifications Connection typescrew terminals Connection (system side)Screw terminals, tightening torque min. 0.5 Nm Stripped length 7 mm , M20 x 1.5 cable gland , usable thread length 13.5 mm , screw-in depth max. 13.5 mm Core cross section (system side)rigid: 0.14 ... 2.5 mm2 flexible: 0.14 ... 1.5 mm2 flexible with core-end sleeve: 0.25 ... 1.5 mm2 Connection (valve side)4-pin, M12 x 1 socket Core cross section (valve side)like core cross section (system side) Housing materialrugged, translucent polycarbonate (PC) optimised for outdoor use Housing basePC Degree of protectionIP66 / IP67 / IP69 Tightening torque, fastening screws4 Nm ... 5 Nm Tightening torque, housing screws≤ 2 Nm Tightening torque of cover srews1.5 Nm Tightening torque, cable glandM20 x 1.5 ; max. 7 Nm Tightening torque, stopping plug1 Nm NoteLED switch-off General information Use in the hazardous areasee instruction manuals Classifications SystemClasscode ECLASS 11.027220501 ECLASS 10.0.127220501 ECLASS 9.027220501 ECLASS 8.027220501 ECLASS 5.127220501 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
