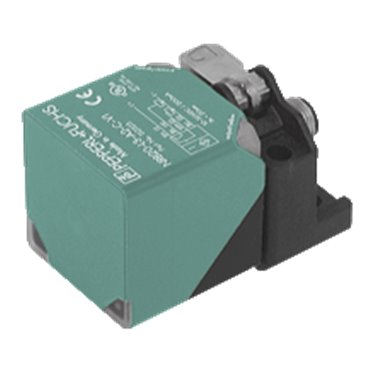

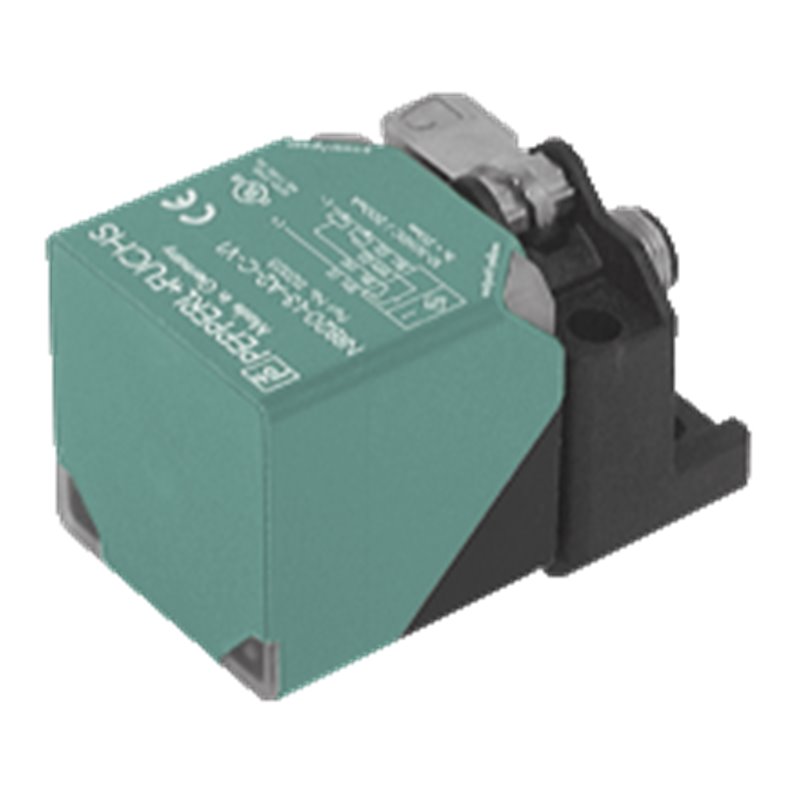

NRB20-L3-E2-IO-V1 PEPPERL+FUCHS - Part number: 306534-0003

Datasheet excerpt: Technical data of  NRB20-L3-E2-IO-V1 General specifications Switching functionNormally open/closed (NO/NC) programmable Output typePNP Rated operating distance20 mm (factory setting) Near operating distance15 mm (can be activated by software) Installationflush Output polarityDC Assured operating distance0 ... 16.2 mm Reduction factor rAl 1 Reduction factor rCu 1 Reduction factor r304 1 Reduction factor rSt37 1 Output type3-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 440 Hz (switch point mode) 0 ... 10 Hz (window mode, switch point mode with stability alarm) Hysteresistyp. 3 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 0.5 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA typ. 60 µA at 25 °C No-load supply current≤ 20 mA Time delay before availabilitymax. 150 ms Constant magnetic field200 mT Alternating magnetic field200 mT Operating voltage indicatorLED, green Status indicatorLED, yellow Functional safety related parameters MTTFd701 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device ID0x201001 (2101249) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input (control system side): 2 Bit Process data output (control system side): none SIO mode supportyes Compatible master port typeA Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates Protection classII Rated insulation voltage60 V Rated impulse withstand voltage800 V UL approvalcULus Listed, General Purpose Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialGD-ZnAl4Cu1, coatedmounting flange PA6-GF35 Sensing facePA 6 Grivory GVN-35H Degree of protectionIP67 Mass205 g Factory settings Default settingoperating mode = switch point mode with stability alarm switching function = Normally open (NO) switching distance = 20 mm Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NRB20-L3-E2-IO-V1 General specifications Switching functionNormally open/closed (NO/NC) programmable Output typePNP Rated operating distance20 mm (factory setting) Near operating distance15 mm (can be activated by software) Installationflush Output polarityDC Assured operating distance0 ... 16.2 mm Reduction factor rAl 1 Reduction factor rCu 1 Reduction factor r304 1 Reduction factor rSt37 1 Output type3-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 440 Hz (switch point mode) 0 ... 10 Hz (window mode, switch point mode with stability alarm) Hysteresistyp. 3 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 0.5 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA typ. 60 µA at 25 °C No-load supply current≤ 20 mA Time delay before availabilitymax. 150 ms Constant magnetic field200 mT Alternating magnetic field200 mT Operating voltage indicatorLED, green Status indicatorLED, yellow Functional safety related parameters MTTFd701 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device ID0x201001 (2101249) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input (control system side): 2 Bit Process data output (control system side): none SIO mode supportyes Compatible master port typeA Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates Protection classII Rated insulation voltage60 V Rated impulse withstand voltage800 V UL approvalcULus Listed, General Purpose Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialGD-ZnAl4Cu1, coatedmounting flange PA6-GF35 Sensing facePA 6 Grivory GVN-35H Degree of protectionIP67 Mass205 g Factory settings Default settingoperating mode = switch point mode with stability alarm switching function = Normally open (NO) switching distance = 20 mm Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
