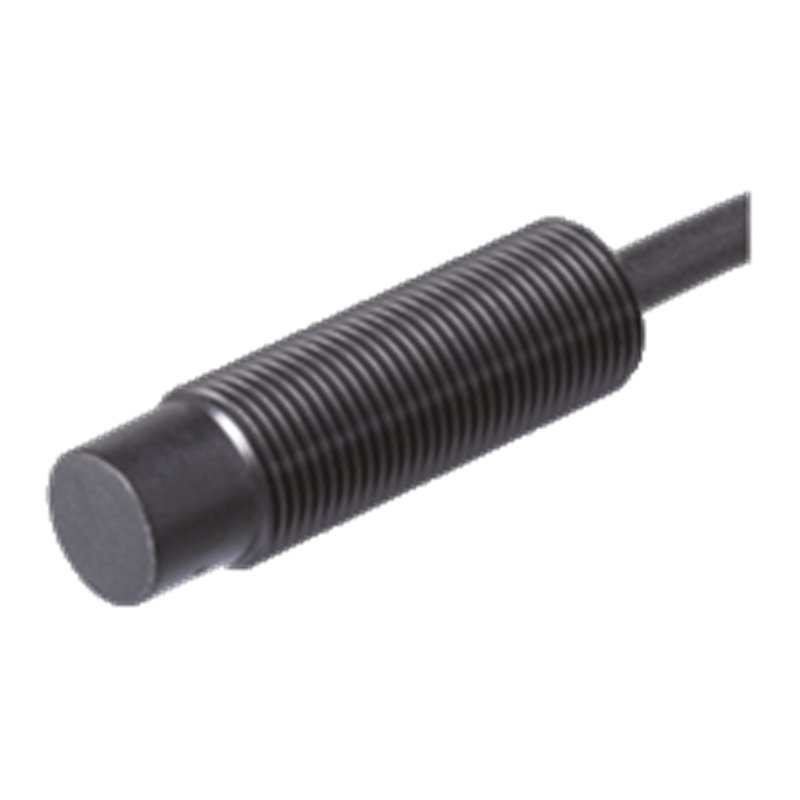

NRN10-12GM40-E2-IO-C PEPPERL+FUCHS - Part number: 306533-0004

Datasheet excerpt: Technical data of  NRN10-12GM40-E2-IO-C General specifications Switching functionNormally open/closed (NO/NC) programmable Output typePNP Rated operating distance10 mm (factory setting) Near operating distance8 mm (can be activated by software) Installationnon-flush Output polarityDC Assured operating distance0 ... 8.1 mm Reduction factor rAl 1 Reduction factor rCu 1 Reduction factor r304 1 Reduction factor rSt37 1 Output type3-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 1300 Hz (switch point mode) 0 ... 80 Hz (window mode, switch point mode with stability alarm) Hysteresistyp. 3 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 0.5 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA typ. 60 µA at 25 °C No-load supply current≤ 15 mA Time delay before availabilitymax. 150 ms Constant magnetic field200 mT Alternating magnetic field200 mT Status indicatorLED yellow Functional safety related parameters MTTFd362 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Interface Interface typeIO-Link ( via C/Q ) IO-Link revision1.1 Device ID0x201114 (2101524) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input (control system side): 2 Bit Process data output (control system side): none SIO mode supportyes Compatible master port typeA Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates Protection classII Rated insulation voltage60 V Rated impulse withstand voltage800 V UL approvalcULus Listed, General Purpose Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PUR , 2 m Core cross section0.34 mm2 Housing materialBrass, PTFE coated Sensing facePPS Degree of protectionIP67 Cable Cable diameter4.3 mm ± 0.1 mm Bending radius> 10 x cable diameter Mass78 g Factory settings Default settingoperating mode = switch point mode with stability alarm switching function = Normally open (NO) switching distance = 10 mm General information Scope of delivery2 self locking nuts in scope of delivery Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NRN10-12GM40-E2-IO-C General specifications Switching functionNormally open/closed (NO/NC) programmable Output typePNP Rated operating distance10 mm (factory setting) Near operating distance8 mm (can be activated by software) Installationnon-flush Output polarityDC Assured operating distance0 ... 8.1 mm Reduction factor rAl 1 Reduction factor rCu 1 Reduction factor r304 1 Reduction factor rSt37 1 Output type3-wire Nominal ratings Operating voltage10 ... 30 V DC Switching frequency0 ... 1300 Hz (switch point mode) 0 ... 80 Hz (window mode, switch point mode with stability alarm) Hysteresistyp. 3 % Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 0.5 V Operating current0 ... 200 mA Off-state current0 ... 0.5 mA typ. 60 µA at 25 °C No-load supply current≤ 15 mA Time delay before availabilitymax. 150 ms Constant magnetic field200 mT Alternating magnetic field200 mT Status indicatorLED yellow Functional safety related parameters MTTFd362 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Interface Interface typeIO-Link ( via C/Q ) IO-Link revision1.1 Device ID0x201114 (2101524) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time2.3 ms Process data widthProcess data input (control system side): 2 Bit Process data output (control system side): none SIO mode supportyes Compatible master port typeA Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates Protection classII Rated insulation voltage60 V Rated impulse withstand voltage800 V UL approvalcULus Listed, General Purpose Class 2 power source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PUR , 2 m Core cross section0.34 mm2 Housing materialBrass, PTFE coated Sensing facePPS Degree of protectionIP67 Cable Cable diameter4.3 mm ± 0.1 mm Bending radius> 10 x cable diameter Mass78 g Factory settings Default settingoperating mode = switch point mode with stability alarm switching function = Normally open (NO) switching distance = 10 mm General information Scope of delivery2 self locking nuts in scope of delivery Classifications SystemClasscode ECLASS 11.027270101 ECLASS 10.0.127270101 ECLASS 9.027270101 ECLASS 8.027270101 ECLASS 5.127270101 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
