NSB2-12GH50-2E2-M1-S2D2 PEPPERL+FUCHS - Part number: 304276-000053
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

NSB2-12GH50-2E2-M1-S2D2 PEPPERL+FUCHS - Part number: 304276-000053

PEPPERL+FUCHS

confronta
NSB2-12GH50-2E2-M1-S2D2 PEPPERL+FUCHS - Part number: 304276-000053

Inductive sensor NSB2-12GH50-2E2-M1-S2D2 NSB2-12GH50-2E2-M1-S2D2 No unusable area 2 mm flush Use of standard metallic actuating surfaces Applications up to Cat. 2, PLd/SIL 2 possible (can be used redundantly up to Cat. 3, PLe/SIL 3) LED for switching state and fault indication Safety outputs OSSD TÜV certified E1-Type approval Extended temperature range -40 ... +85 °C Inductive sensor NSB2-12GH50-2E2-M1-S2D2 NSB2-12GH50-2E2-M1-S2D2 No unusable area 2 mm flush Use of standard metallic actuating surfaces Applications up to Cat. 2, PLd/SIL 2 possible (can be used redundantly up to Cat. 3, PLe/SIL 3) LED for switching state and fault indication Safety outputs OSSD TÜV certified E1-Type approval Extended temperature range -40 ... +85 °C

MPNs 304276-000053, PEP304276-000053, NSB2-12GH50-2E2-M1-S2D2
Codice HS 85365090
Peso N/A

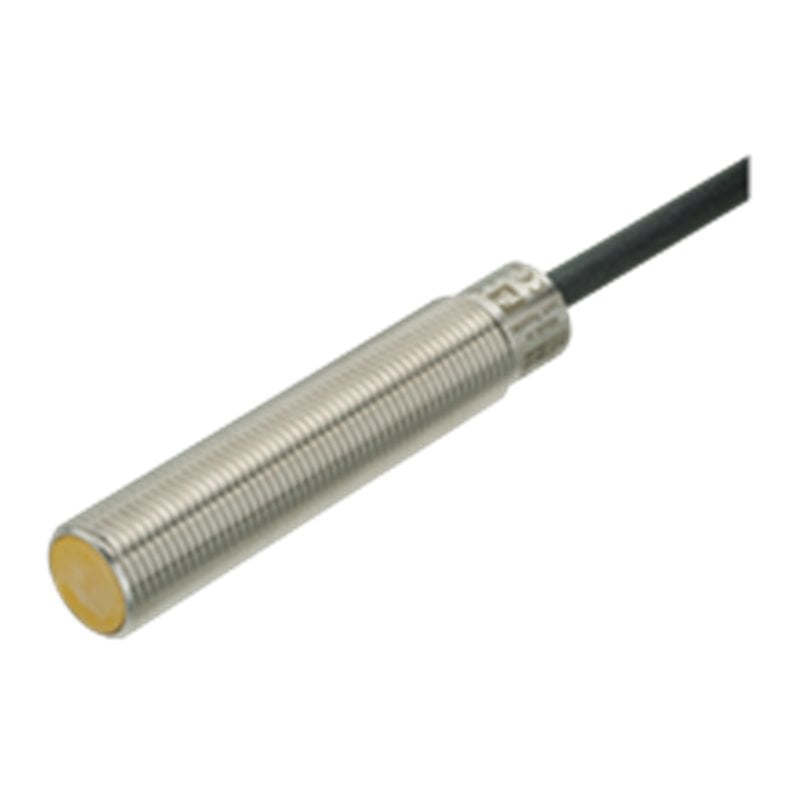

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  NSB2-12GH50-2E2-M1-S2D2 General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance2 mm Installationflush Output polarityDC Assured operating distance0 ... 1.62 mm Actuating elementReference target according EN IEC 60947-5-2 (FE360 - ST37K) 12 mm x 12 mm x 1 mm Reduction factor rAl 0.6 Reduction factor rCu 0.45 Reduction factor r304 0.9 Reduction factor rBrass 0.6 Output type4-wire Nominal ratings Operating voltage18 ... 30 V Rated operating voltage24 V Switching frequency0 ... 30 Hz Hysteresistyp. 5% Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Overload resistanceyes Voltage drop≤ 3 V at IL (sum of all outputs) max. 50 mA Rated insulation voltage30 V Operating current1 ... 30 mA per output Off-state current0 ... 0.5 mA No-load supply current≤ 15 mA Time delay before availability≤ 300 ms Switching state indicatorLED, yellow Error indicatorLED, red Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d CategoryCat. 2 MTTFd> 7500 a Mission Time (TM)20 a Diagnostic Coverage (DC)min. 60 % Assured release distance of a PDDB3 mm Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN 62061:2005+AC:2010+A1:2013+A2:2015 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, General Purpose, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V E1 Type approval10R-06 Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Altitude≤ 2000 m above MSL Mechanical specifications Connection typecable PUR , 2 m Core cross section0.5 mm2 Housing materialStainless steel 1.4404 / AISI 316L Sensing facePBT Degree of protectionIP68 / IP69 Mass91 g General information Scope of deliverySupplied with 2 nuts Classifications SystemClasscode ECLASS 11.027272401 ECLASS 10.0.127272401 ECLASS 9.027272401 ECLASS 8.027272401 ECLASS 5.127272401 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NSB2-12GH50-2E2-M1-S2D2 General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance2 mm Installationflush Output polarityDC Assured operating distance0 ... 1.62 mm Actuating elementReference target according EN IEC 60947-5-2 (FE360 - ST37K) 12 mm x 12 mm x 1 mm Reduction factor rAl 0.6 Reduction factor rCu 0.45 Reduction factor r304 0.9 Reduction factor rBrass 0.6 Output type4-wire Nominal ratings Operating voltage18 ... 30 V Rated operating voltage24 V Switching frequency0 ... 30 Hz Hysteresistyp. 5% Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Overload resistanceyes Voltage drop≤ 3 V at IL (sum of all outputs) max. 50 mA Rated insulation voltage30 V Operating current1 ... 30 mA per output Off-state current0 ... 0.5 mA No-load supply current≤ 15 mA Time delay before availability≤ 300 ms Switching state indicatorLED, yellow Error indicatorLED, red Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d CategoryCat. 2 MTTFd> 7500 a Mission Time (TM)20 a Diagnostic Coverage (DC)min. 60 % Assured release distance of a PDDB3 mm Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN 62061:2005+AC:2010+A1:2013+A2:2015 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, General Purpose, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V E1 Type approval10R-06 Ambient conditions Ambient temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Altitude≤ 2000 m above MSL Mechanical specifications Connection typecable PUR , 2 m Core cross section0.5 mm2 Housing materialStainless steel 1.4404 / AISI 316L Sensing facePBT Degree of protectionIP68 / IP69 Mass91 g General information Scope of deliverySupplied with 2 nuts Classifications SystemClasscode ECLASS 11.027272401 ECLASS 10.0.127272401 ECLASS 9.027272401 ECLASS 8.027272401 ECLASS 5.127272401 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
