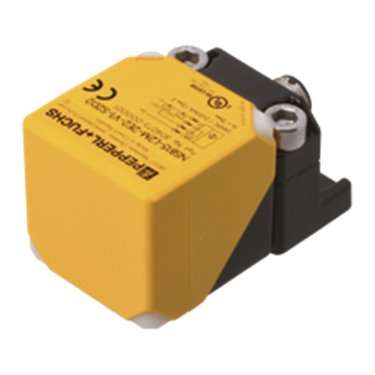

NSN20-L2M-2E2-V1-S2D2 PEPPERL+FUCHS - Part number: 304275-000002

Datasheet excerpt: Technical data of  NSN20-L2M-2E2-V1-S2D2 General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance20 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 16.2 mm Actuating elementReference target according EN IEC 60947-5-2 (FE360 - ST37K) 60 mm x 60 mm x 1 mm Reduction factor rAl 0.4 Reduction factor rCu 0.4 Reduction factor r304 0.85 Reduction factor rBrass 0.5 Output type4-wire Nominal ratings Operating voltage18 ... 30 V Rated operating voltage24 V Switching frequency0 ... 10 Hz Hysteresistyp. 5% Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Overload resistanceyes Voltage drop≤ 3 V at IL (sum of all outputs) max. 50 mA Rated insulation voltage30 V Operating current1 ... 30 mA per output Off-state current0 ... 0.5 mA No-load supply current≤ 15 mA Time delay before availability≤ 300 ms Switching state indicatorLED, yellow Error indicatorLED, red Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d CategoryCat. 2 MTTFd> 7500 a Mission Time (TM)20 a Diagnostic Coverage (DC)min. 60 % Assured release distance of a PDDB30 mm Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN 62061:2005+AC:2010+A1:2013+A2:2015 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, General Purpose, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Altitude≤ 2000 m above MSL Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialPA-GF35metal base Xylan coatedmetal mounting flange Xylan coated. Sensing facePA-GF35 Degree of protectionIP68 / IP69 Mass197 g Classifications SystemClasscode ECLASS 11.027272401 ECLASS 10.0.127272401 ECLASS 9.027272401 ECLASS 8.027272401 ECLASS 5.127272401 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  NSN20-L2M-2E2-V1-S2D2 General specifications Switching function2 x normally open (NO) Output typePNP Rated operating distance20 mm Installationnon-flush Output polarityDC Assured operating distance0 ... 16.2 mm Actuating elementReference target according EN IEC 60947-5-2 (FE360 - ST37K) 60 mm x 60 mm x 1 mm Reduction factor rAl 0.4 Reduction factor rCu 0.4 Reduction factor r304 0.85 Reduction factor rBrass 0.5 Output type4-wire Nominal ratings Operating voltage18 ... 30 V Rated operating voltage24 V Switching frequency0 ... 10 Hz Hysteresistyp. 5% Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Overload resistanceyes Voltage drop≤ 3 V at IL (sum of all outputs) max. 50 mA Rated insulation voltage30 V Operating current1 ... 30 mA per output Off-state current0 ... 0.5 mA No-load supply current≤ 15 mA Time delay before availability≤ 300 ms Switching state indicatorLED, yellow Error indicatorLED, red Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d CategoryCat. 2 MTTFd> 7500 a Mission Time (TM)20 a Diagnostic Coverage (DC)min. 60 % Assured release distance of a PDDB30 mm Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN 62061:2005+AC:2010+A1:2013+A2:2015 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3 Approvals and certificates EAC conformityTR CU 020/2011 UL approvalcULus Listed, General Purpose, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Altitude≤ 2000 m above MSL Mechanical specifications Connection typeConnector plug M12 x 1 , 4-pin Housing materialPA-GF35metal base Xylan coatedmetal mounting flange Xylan coated. Sensing facePA-GF35 Degree of protectionIP68 / IP69 Mass197 g Classifications SystemClasscode ECLASS 11.027272401 ECLASS 10.0.127272401 ECLASS 9.027272401 ECLASS 8.027272401 ECLASS 5.127272401 ETIM 8.0EC002714 ETIM 7.0EC002714 ETIM 6.0EC002714 ETIM 5.0EC002714 UNSPSC 12.139121550
