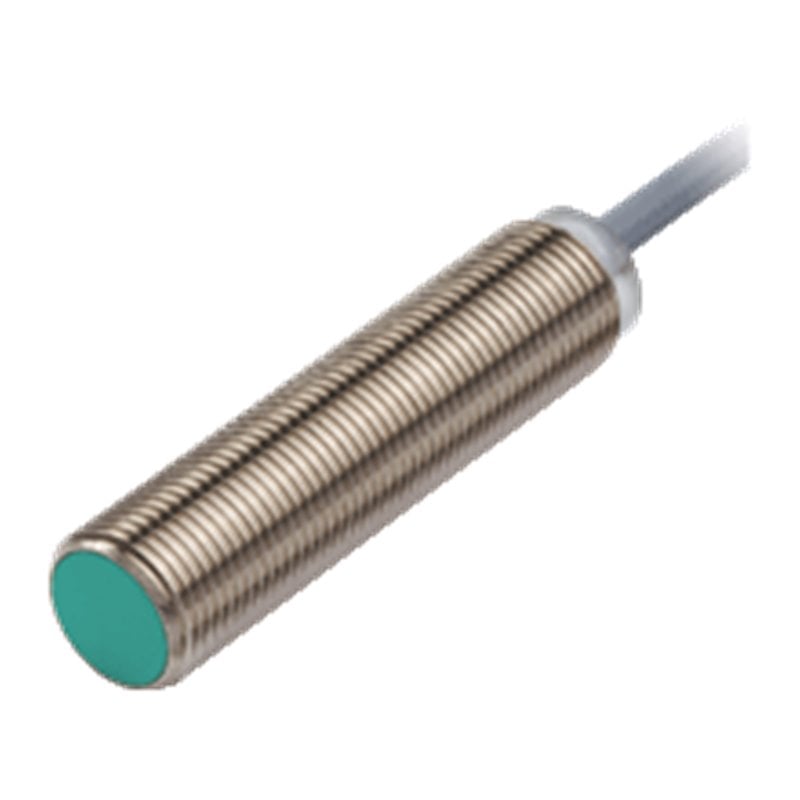

MB80-12GM50-E0 PEPPERL+FUCHS - Part number: 805347

Datasheet excerpt: Technical data of  MB80-12GM50-E0-PUR General specifications Switching functionNormally open (NO) Output typeNPN Rated operating distance80 mm Installationflush in non-magnetic metal Output polarityDC Assured operating distance20 ... 64.8 mm Output type3-wire Nominal ratings Operating voltage10 ... 30 V Switching frequency0 ... 5000 Hz Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 2.5 V Operating current0 ... 200 mA No-load supply current≤ 20 mA Switching state indicatorLED, yellow Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection typecable PUR , 2 m (black) Core cross section0.14 mm2 Housing materialbrass, nickel-plated Sensing facePBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027270104 ECLASS 10.0.127270104 ECLASS 9.027270104 ECLASS 8.027270104 ECLASS 5.127270104 ETIM 8.0EC002544 ETIM 7.0EC002544 ETIM 6.0EC002544 ETIM 5.0EC002544 UNSPSC 12.139121550 Datasheet excerpt: Technical data of  MB80-12GM50-E0-PUR General specifications Switching functionNormally open (NO) Output typeNPN Rated operating distance80 mm Installationflush in non-magnetic metal Output polarityDC Assured operating distance20 ... 64.8 mm Output type3-wire Nominal ratings Operating voltage10 ... 30 V Switching frequency0 ... 5000 Hz Reverse polarity protectionreverse polarity protected Short-circuit protectionpulsing Voltage drop≤ 2.5 V Operating current0 ... 200 mA No-load supply current≤ 20 mA Switching state indicatorLED, yellow Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection typecable PUR , 2 m (black) Core cross section0.14 mm2 Housing materialbrass, nickel-plated Sensing facePBT Degree of protectionIP67 Classifications SystemClasscode ECLASS 11.027270104 ECLASS 10.0.127270104 ECLASS 9.027270104 ECLASS 8.027270104 ECLASS 5.127270104 ETIM 8.0EC002544 ETIM 7.0EC002544 ETIM 6.0EC002544 ETIM 5.0EC002544 UNSPSC 12.139121550
