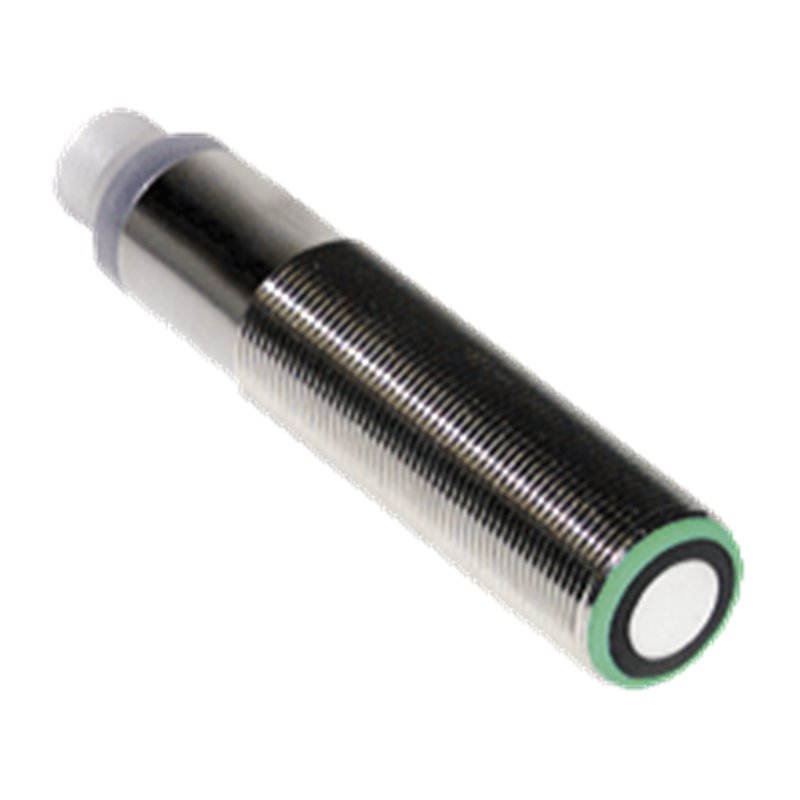

UB1000-18GM75-E4-V15 PEPPERL+FUCHS - Part number: 204529

Datasheet excerpt: Technical data of  UB1000-18GM75-E4-V15 Product Description Single head system General specifications Sensing range70 ... 1000 mm Adjustment range90 ... 1000 mm Dead band0 ... 70 mm Standard target plate100 mm x 100 mm Transducer frequency255 kHz Response delay125 ms Indicators/operating means LED yellowindication of the switching stateflashing: program function object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Input/Output Synchronization1 synchronous connection, bi-directional0-level: -UB...+1 V1-level: +4 V...+UB input impedance: > 12 kΩsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 40 Hz Multiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5 Input Input type1 program input,operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s Output Output type1 switch output NPN Normally open/closed , programmable Rated operating current200 mA , short-circuit/overload protected Voltage drop≤ 3 V Repeat accuracy≤ 1 % Switching frequencymax. 3 Hz Range hysteresis1 % of the set operating distance Temperature influence± 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter18 mm Degree of protectionIP67 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT Mass60 g Factory settings OutputSwitch point A1: 90 mm Switch point A2: 1000 mm output function: Window mode output behavior: NO contact Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UB1000-18GM75-E4-V15 Product Description Single head system General specifications Sensing range70 ... 1000 mm Adjustment range90 ... 1000 mm Dead band0 ... 70 mm Standard target plate100 mm x 100 mm Transducer frequency255 kHz Response delay125 ms Indicators/operating means LED yellowindication of the switching stateflashing: program function object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Input/Output Synchronization1 synchronous connection, bi-directional0-level: -UB...+1 V1-level: +4 V...+UB input impedance: > 12 kΩsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 40 Hz Multiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5 Input Input type1 program input,operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s Output Output type1 switch output NPN Normally open/closed , programmable Rated operating current200 mA , short-circuit/overload protected Voltage drop≤ 3 V Repeat accuracy≤ 1 % Switching frequencymax. 3 Hz Range hysteresis1 % of the set operating distance Temperature influence± 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter18 mm Degree of protectionIP67 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT Mass60 g Factory settings OutputSwitch point A1: 90 mm Switch point A2: 1000 mm output function: Window mode output behavior: NO contact Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
