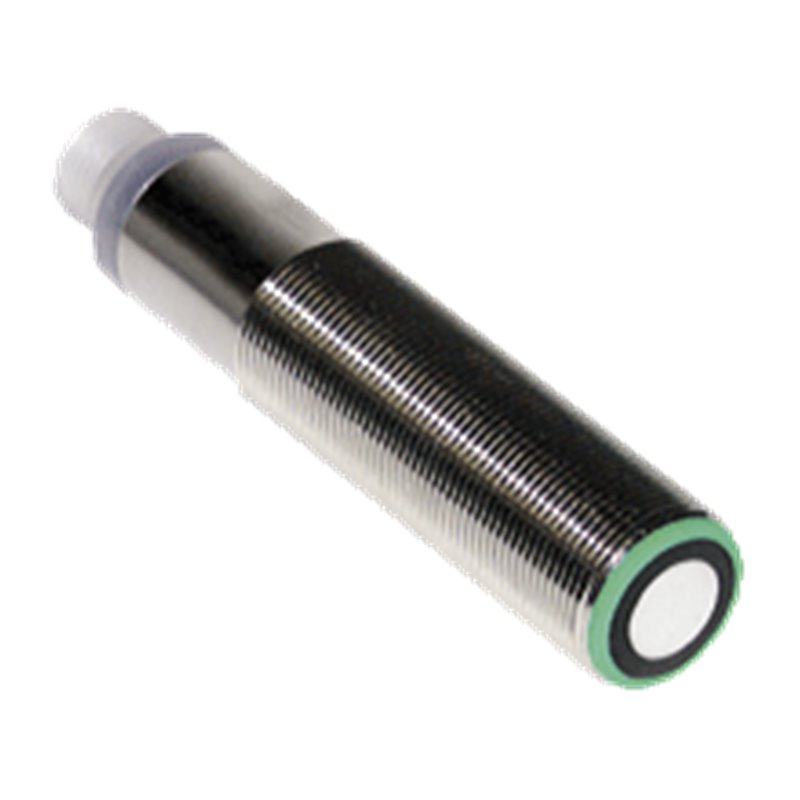

UB1000-18GM75-U-V15 PEPPERL+FUCHS - Part number: 204536

Datasheet excerpt: Technical data of  UB1000-18GM75-U-V15 Product Description Single head system General specifications Sensing range70 ... 1000 mm Adjustment range90 ... 1000 mm Dead band0 ... 70 mm Standard target plate100 mm x 100 mm Transducer frequency255 kHz Response delay125 ms Indicators/operating means LED yellowsolid yellow: object in the evaluation rangeyellow, flashing: program function, object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage15 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Input/Output Synchronization1 synchronous connection, bi-directional0-level: -UB...+1 V1-level: +4 V...+UB input impedance: > 12 kΩsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 40 Hz Multiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5 Input Input type1 program inputlower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s Output Output type1 analog output 0 ... 10 V Resolution0.35 mm Deviation of the characteristic curve± 1 % of full-scale value Repeat accuracy± 0.1 % of full-scale value Load impedance> 1 kOhm Temperature influence± 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter18 mm Degree of protectionIP67 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Mass60 g Factory settings Outputevaluation limit A1: 90 mm evaluation limit A2: 1000 mm output function: rising ramp Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UB1000-18GM75-U-V15 Product Description Single head system General specifications Sensing range70 ... 1000 mm Adjustment range90 ... 1000 mm Dead band0 ... 70 mm Standard target plate100 mm x 100 mm Transducer frequency255 kHz Response delay125 ms Indicators/operating means LED yellowsolid yellow: object in the evaluation rangeyellow, flashing: program function, object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage15 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Input/Output Synchronization1 synchronous connection, bi-directional0-level: -UB...+1 V1-level: +4 V...+UB input impedance: > 12 kΩsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 40 Hz Multiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5 Input Input type1 program inputlower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s Output Output type1 analog output 0 ... 10 V Resolution0.35 mm Deviation of the characteristic curve± 1 % of full-scale value Repeat accuracy± 0.1 % of full-scale value Load impedance> 1 kOhm Temperature influence± 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter18 mm Degree of protectionIP67 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Mass60 g Factory settings Outputevaluation limit A1: 90 mm evaluation limit A2: 1000 mm output function: rising ramp Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
