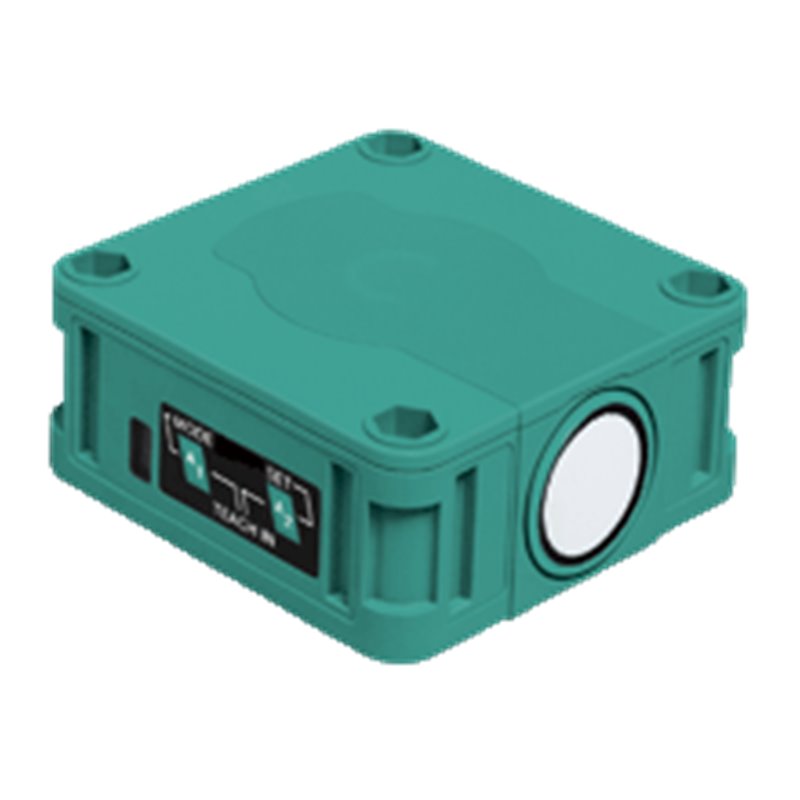

UB2000-F42S-E5-V15 PEPPERL+FUCHS - Part number: 133994

Datasheet excerpt: Technical data of  UB2000-F42S-E5-V15 Product Description Single head system General specifications Sensing range60 ... 2000 mm Adjustment range90 ... 2000 mm Dead band0 ... 60 mm Standard target plate100 mm x 100 mm Transducer frequency175 kHz Response delay150 ms Indicators/operating means LED greensolid green: Power on LED yellowsolid: switching state switch outputflashing: program function LED rednormal operation: "fault"program function: no object detected Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Input/Output Synchronizationbi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 30 Hz Multiplex operation≤ 30/n Hz, n = number of sensors Output Output type1 switching output E5, PNP NO/NC, programmable Rated operating current200 mA , short-circuit/overload protected Default settingSwitch point A1: 90 mm , Switch point A2: 2000 mm , wide sound lobe Voltage drop≤ 2.5 V Repeat accuracy≤ 0.5 % of switching point Switching frequency≤ 2.7 Hz Range hysteresis1 % of the set operating distance Temperature influence± 1 % of full-scale value Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector M12 x 1 , 5-pin Degree of protectionIP54 Material HousingABS Transducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT Mass140 g Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UB2000-F42S-E5-V15 Product Description Single head system General specifications Sensing range60 ... 2000 mm Adjustment range90 ... 2000 mm Dead band0 ... 60 mm Standard target plate100 mm x 100 mm Transducer frequency175 kHz Response delay150 ms Indicators/operating means LED greensolid green: Power on LED yellowsolid: switching state switch outputflashing: program function LED rednormal operation: "fault"program function: no object detected Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Input/Output Synchronizationbi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 30 Hz Multiplex operation≤ 30/n Hz, n = number of sensors Output Output type1 switching output E5, PNP NO/NC, programmable Rated operating current200 mA , short-circuit/overload protected Default settingSwitch point A1: 90 mm , Switch point A2: 2000 mm , wide sound lobe Voltage drop≤ 2.5 V Repeat accuracy≤ 0.5 % of switching point Switching frequency≤ 2.7 Hz Range hysteresis1 % of the set operating distance Temperature influence± 1 % of full-scale value Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector M12 x 1 , 5-pin Degree of protectionIP54 Material HousingABS Transducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT Mass140 g Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
